Command Line Interface (CLI)
123Modular SAN Array 1000 User Guide
d. In the Connect To dialog box, expand the Connect using drop-down
box, select the appropriate COM port, and click OK.
Figure 59 illustrates selecting COM1.
The COM Properties dialog box is displayed.
Figure 60 is an example of the COM1 Properties dialog box.

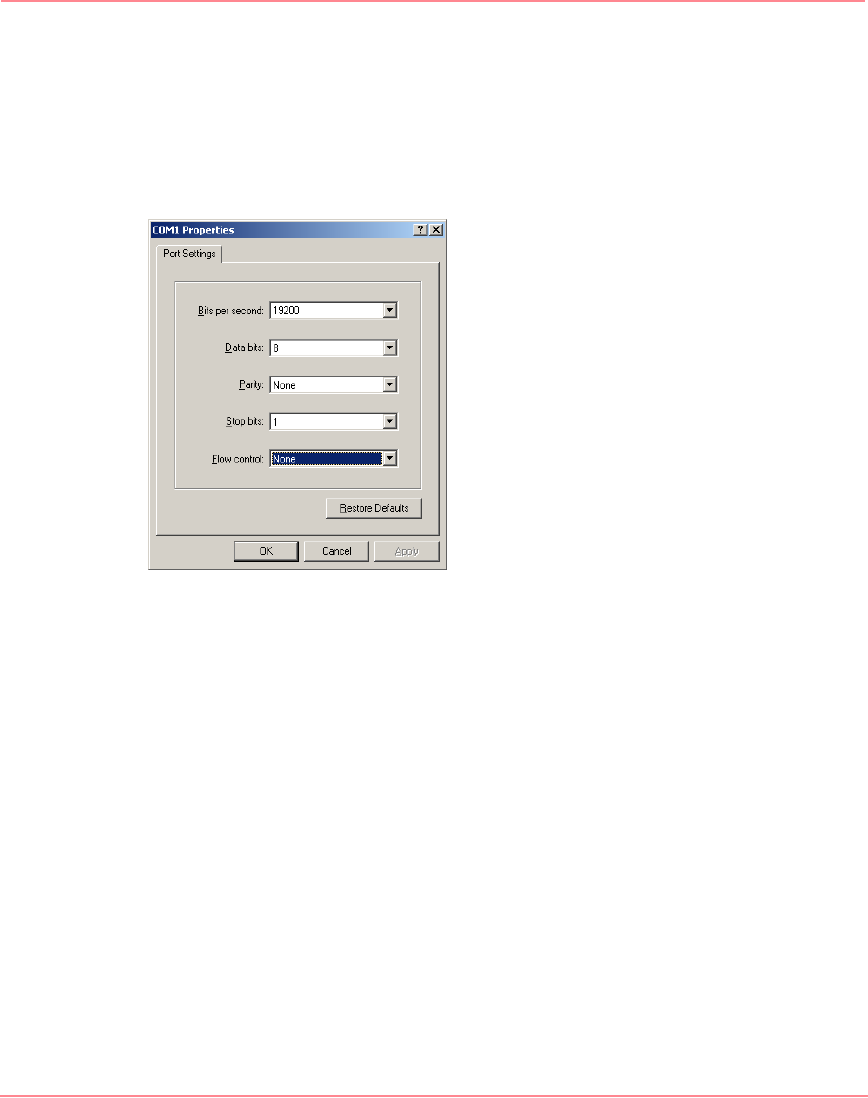

Figure 60: HyperTerminal COM1 Properties dialog box
e. In the COM1 Properties dialog box, enter the following settings, also
listed in Figure 60, and click OK.
Bits per Second: 19200
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
The CLI input screen is displayed.
f. In the CLI session screen, press Enter several times to display the
command prompt (
CLI>).
Commands can now be entered at this CLI prompt.
