Using the Express Configuration Mode to Configure a New Controller
1. Click Express Configuration.
The express mode start screen is displayed.

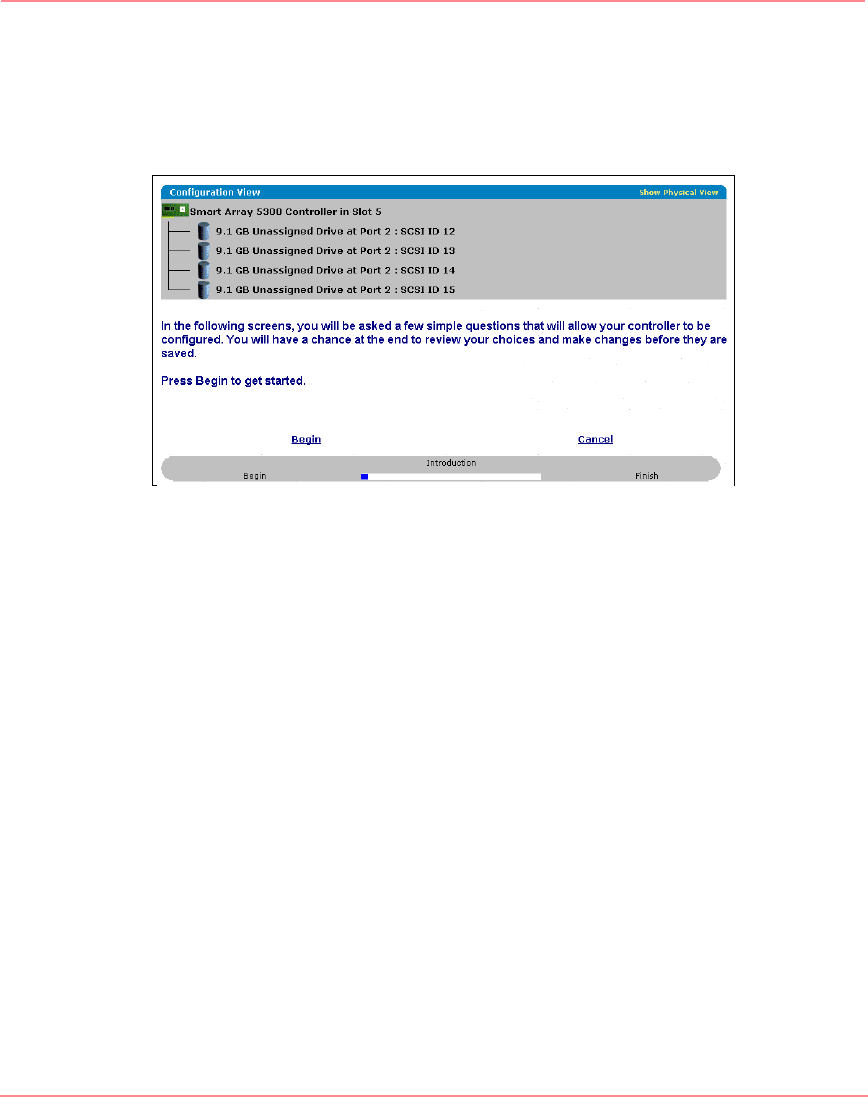

Figure 49: Express mode start screen
2. Click Begin.
ACU creates the optimum number of arrays and logical drives from all of the
physical drives that are attached to the controller.
This process takes a few moments; when it is finished, the screen is updated.
The gray Configuration View window shows the new configuration.
Underneath this window is a list of possible fault tolerance levels for the first
logical drive, as illustrated in Figure 50.
