Array Configuration Utility (ACU)
89Modular SAN Array 1000 User Guide

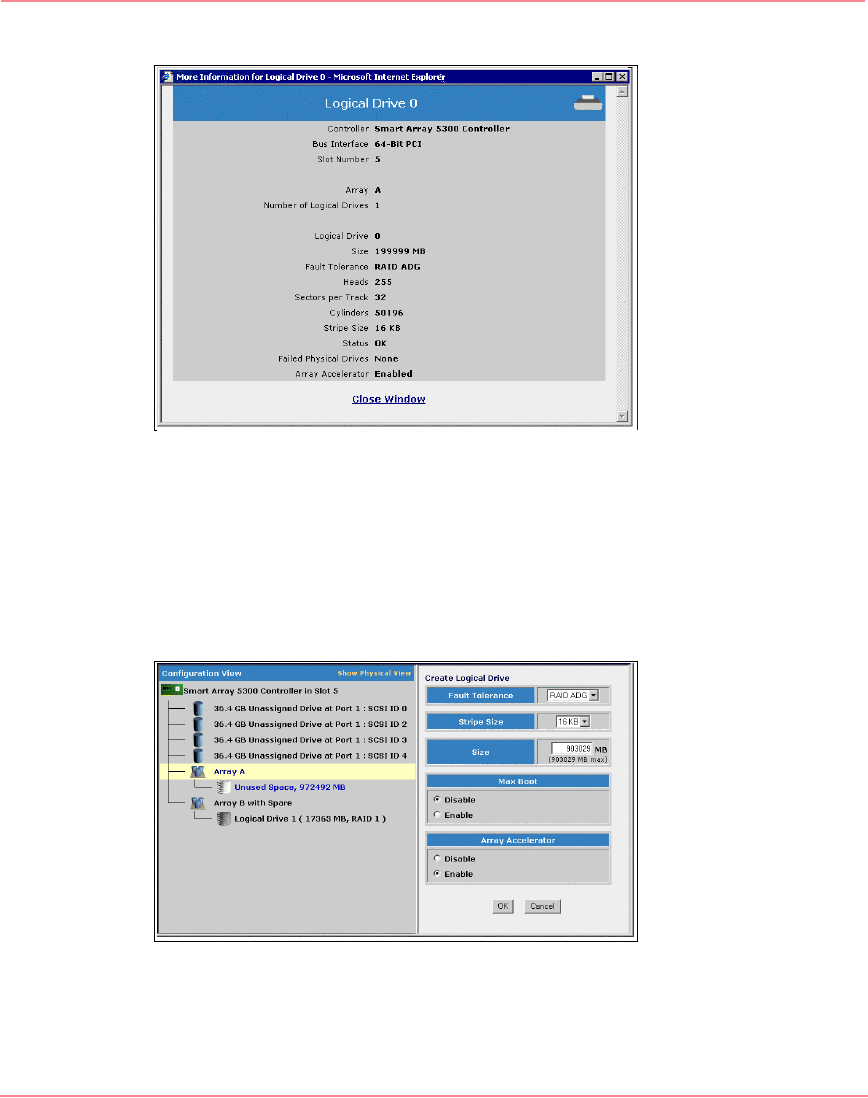

Figure 46: Typical More Information popup window
Typical Standard Mode Screen
This mode shows all the configuration options for a particular device at the same
time, in a frame on the right side of the screen.
The FAQ column seen in the Wizard screens is absent.
Figure 47: Typical standard mode screen
