Array Configuration Utility (ACU)
85Modular SAN Array 1000 User Guide
Accessing the ACU
You can run the ACU directly from the Smart Component or you can run it from
Insight Manager 7.
Using the Smart Component
1. Open the browser.
■ If remote access is enabled, enter this text into the URL field (where
SERVERNAME is the name or IP address of the host):
http://SERVERNAME:2301
■ If remote access is disabled, enter this text into the URL field:
https://127.0.0.1:2381
The System Management Home Page opens.
2. Click Storage Management on the left side of the screen.
The ProLiant Storage Manager welcome screen is displayed.

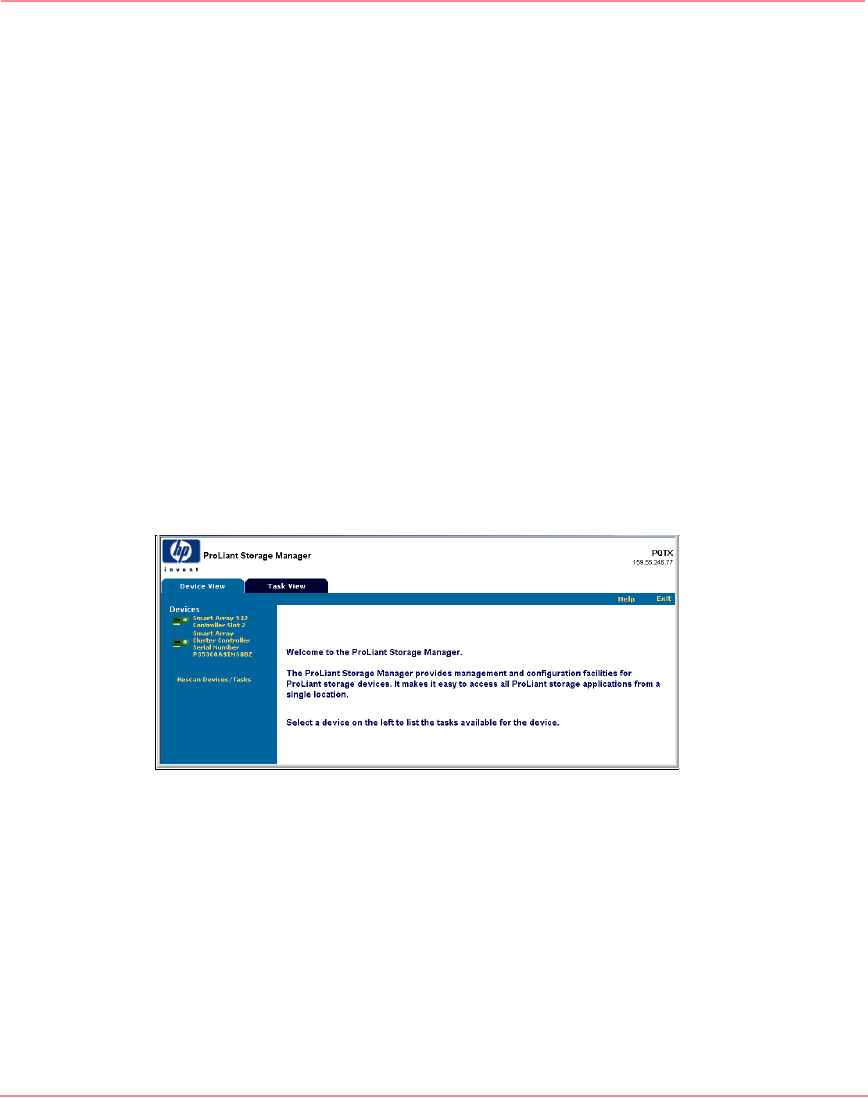

Figure 43: ProLiant Storage Manager welcome screen
3. Select a controller from the device list.
4. Click Configure in the main part of the screen.
The ACU opens, and identifies the controllers that are connected to your
system. This process may take a minute or two.
When controller detection is complete, the configuration mode selection
screen is displayed.
