Operation and Management
80 Modular SAN Array 1000 User Guide

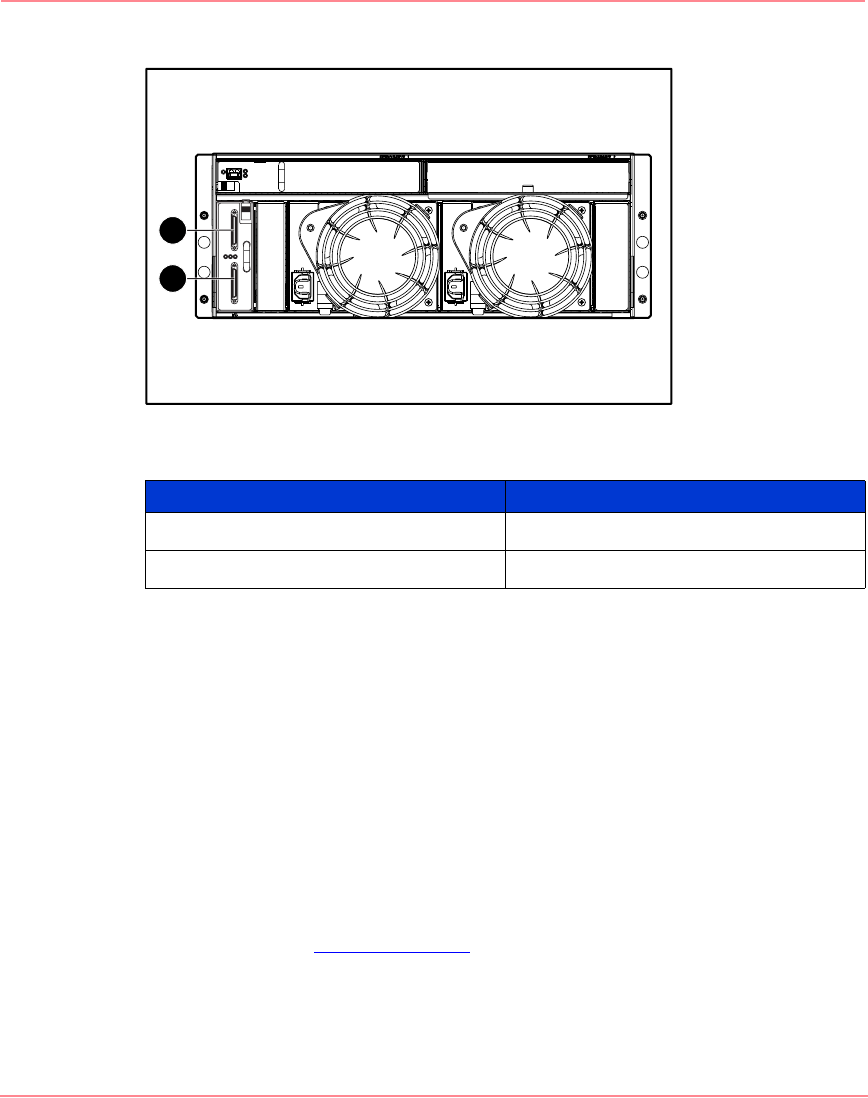

Figure 42: MSA1000 expansion SCSI connectors
5. Attach the SCSI cables to the expansion disk enclosures. Attach the power
cords to the power supplies at the rear of the enclosures. Power on each
external disk enclosure.
6. Power on the MSA1000 system using the power switch in front of the system.
Turn on the host server(s) and allow it to boot.
7. Use the ACU or the CLI to verify current configuration is maintained and new
volumes are identified. If the migrated volumes are not identified, shut down
the system and verify connections.
8. Run the operating-system-specific disk administration utility to add logical
drive volumes. Some systems may require rebooting to use the new volumes.
For detailed information on drive migrations, go to the storage page on the
following website:
http://www.hp.com
.
Item Description
1
SCSI Port A (SCSI Bus 2)
2
SCSI Port B (SCSI Bus 3)
1
2
