UPS Operation and Reference Guide R6000

Configuration 4-3
Configuring the COMPAQ R6000 UPS
Using the LCD Display Menu
The COMPAQ R6000 UPS LCD menu has a two-line LCD display with
3-button control for up, down, left, right, Enter, and Escape. The LCD is used
for configuration, monitoring, load control, and status.

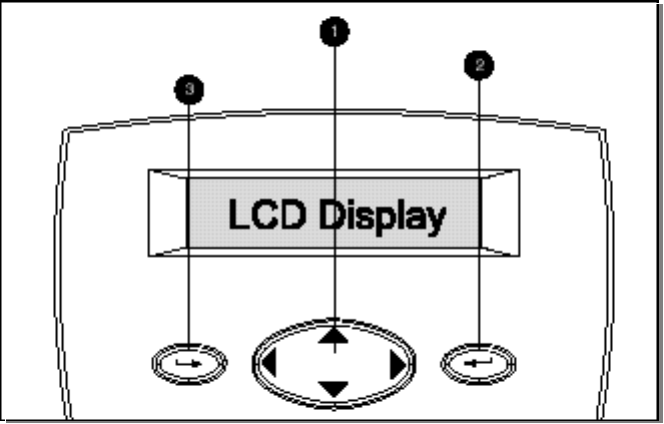

Figure 4-1. The LCD display, showing the three buttons that control it
Control Name Function
1
Center Large 4-way rocking button; used to control navigation through
LCD menu structure: UP, DOWN, LEFT and RIGHT.
2
Enter Used to navigate and select options in the LCD menu structure
3
Escape Used to navigate and deselect options in the LCD menu
structure
