UPS Operation and Reference Guide R6000

Introduction 1-3
Rear Panel
The Compaq R6000 UPS Series features the following rear panel
configuration:

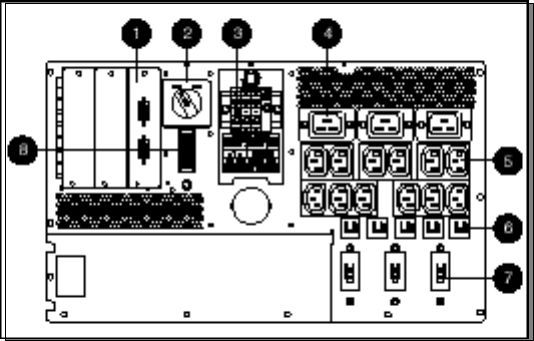

Figure 1-2. The R6000 rear panel
1
Compaq R6000 UPS communication ports
2
Manual Bypass switch
3
Input terminal block
4
16 Amp receptacle
5
10 Amp receptacle
6
Circuit breakers for segments (left to right) 1, 2, 3, 4, and 5
7
Circuit breakers for (left to right)
■ Segments 1 and 4
■ Segments 2
■ Segments 3 and 5
8
REPO port
