Component identification 9

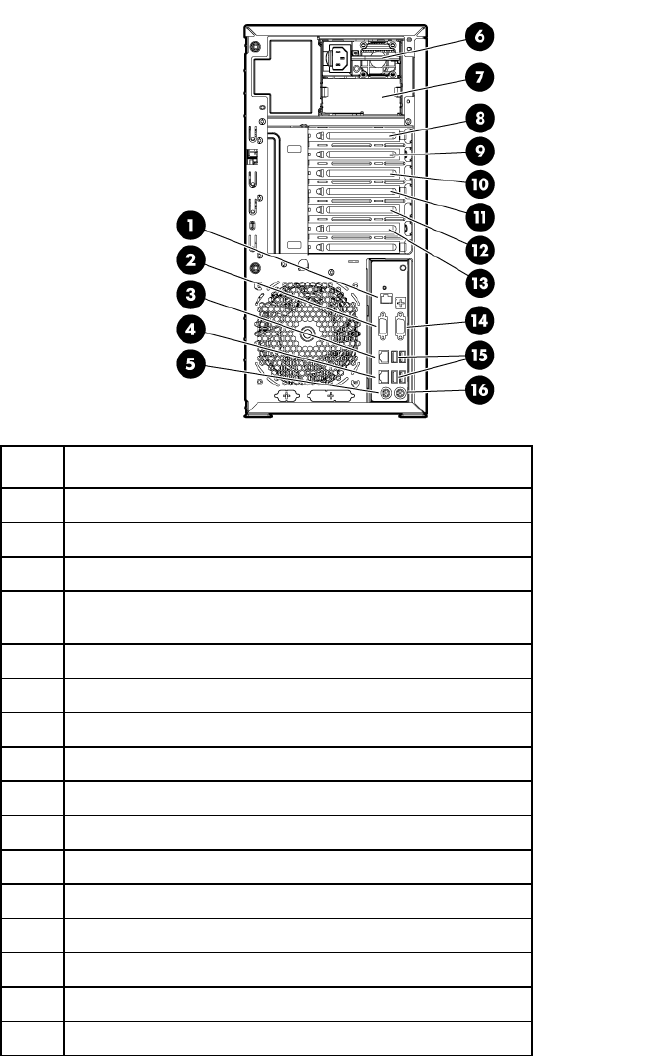

Rear panel components
Item Description
1
Dedicated iLO 2 management port (optional)
2
Serial connector
3
10/100/1000 NIC 2 connector
4
10/100/1000 NIC 1 connector/shared iLO 2
management port
5
Mouse connector
6
Power supply 1
7
Power supply blank
8
Slot 1 PCI-X*
9
Slot 2 PCI-X*
10
Slot 3 PCIe1 x8 (1)
11
Slot 4 PCIe2 x16 (16, 8, 4, 2, 1)
12
Slot 5 PCIe2 x8 (4, 2, 1)
13
Slot 6 PCIe2 x8 (4, 2, 1)
14
Video connector
15
USB connectors (2)
16
Keyboard connector
