Hardware options installation 73

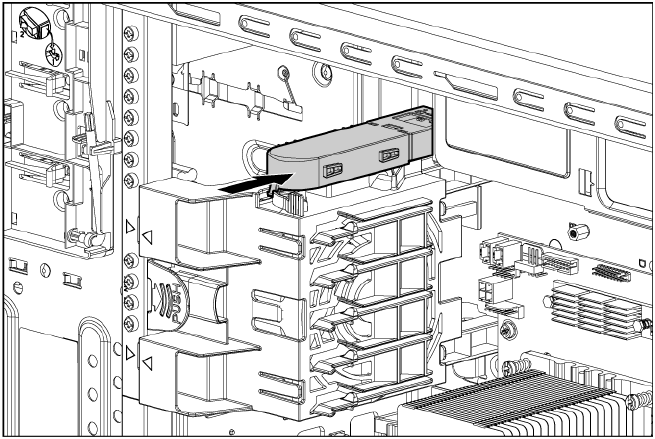

8. Install the capacitor pack.
9. Route the cable.
10. Install the access panel (on page 22).
11. Do one of the following:
o Close or install the tower bezel, as needed.
o Slide the server back into the rack.
12. Power up the server (on page 20).
SAS controller option
To install the component:
1. Power down the server (on page 20).
2. Do one of the following:
o Open or remove the tower bezel, as needed ("Open or remove the tower bezel" on page 20).
o Extend the server from the rack (on page 21).
3. Remove the access panel (on page 21).
4. Remove the expansion slot cover ("Removing the expansion slot cover" on page 64).
5. Install the SAS controller ("Installing expansion boards" on page 65).
6. Disconnect the SATA cable from the hard drive backplane and from the system board.
7. Connect the SAS cable to the hard drive backplane and to the SAS controller.
8. Install the access panel (on page 22).
9. Do one of the following:
o Close or install the tower bezel, as needed.
o Slide the server back into the rack.
10. Power up the server (on page 20).
