Operations 25
3. Remove the access panel (on page 21).
4. Place the tower server on its side.
5. Remove the air baffle (on page 22).
6. Disconnect the power cable from the processor board.

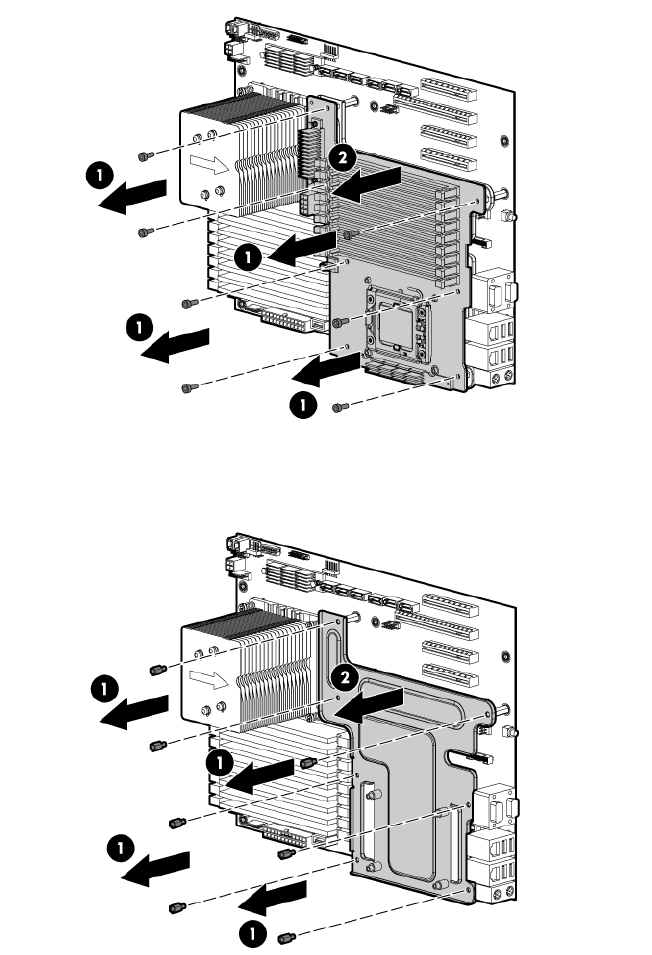

7. Using a T-15 Torx screwdriver, remove the screws securing the processor board.
8. Remove the processor board.
9. Using the wrench provided in the kit, remove the mezzanine support stand-offs.
10. Remove the metal plate.
Install the processor board
1. Power down the server (on page 20).
2. Do one of the following:
