Component identification 15
System LED and Color Internal Health
LED Color
Status
Power supply (amber)
Red
One or more of the following conditions may exist:
•
There is no AC power.
•
The power supply has failed.
Amber There is a power supply mismatch at POST.
DIMM slots

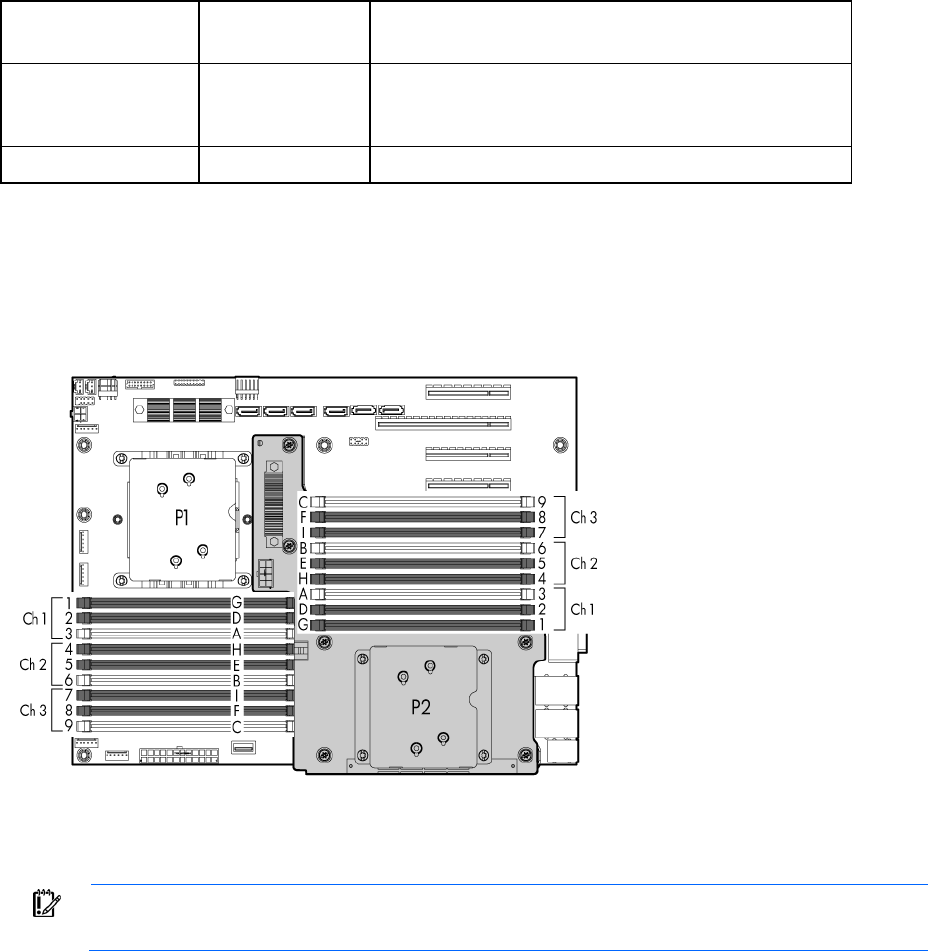

DIMM slots are numbered sequentially (1 through 9) for each processor. The supported AMP modes use the
letter assignments for population guidelines.
DIMM identification
IMPORTANT: This server does not support mixing RDIMMs and UDIMMs. Attempting to mix
these two types causes the server to halt during BIOS initialization.
