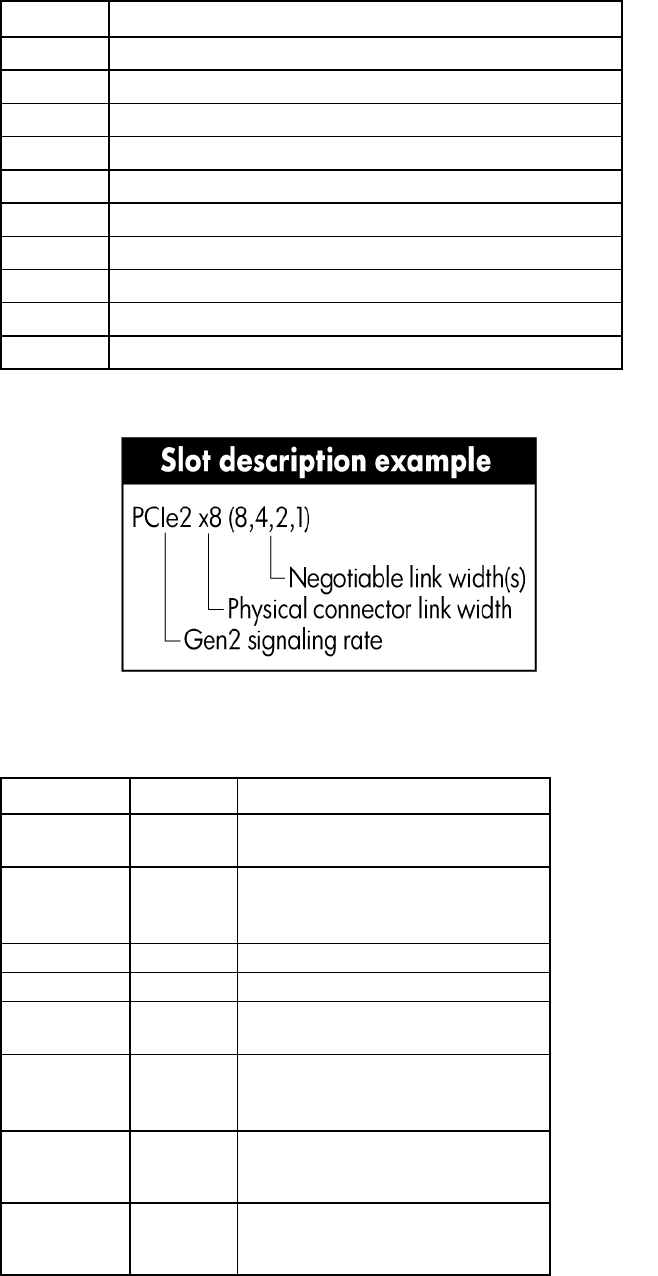

Component identification 12
Item Description
23
System power connector
24
Fan 1 connector
25
Fan 1.5 or 2 connector
26
Fan 3 connector
27
Reserved
28
Processor socket 1 (populated)
29
Battery
30
Reserved
31
Power connector
32
Front USB connector
* The server supports one optical drive that can be connected to either SATA connector 5 or SATA connector 6.
System maintenance switch
Position Default Function
S1
Off Off = iLO 2 security is enabled.
On = iLO 2 security is disabled.
S2
Off Off = Normal operation
On = RBSU will not commit any
configuration changes.*
S3
Off Reserved
S4
Off Reserved
S5
Off Off = Power-on password enabled
On = Power-on password disabled*
S6
Off Off = Normal operation
On = BIOS will clear CMOS and
NVRAM.*
S7
Off Reserved
S8
Off Reserved
* "On" activates the function.
