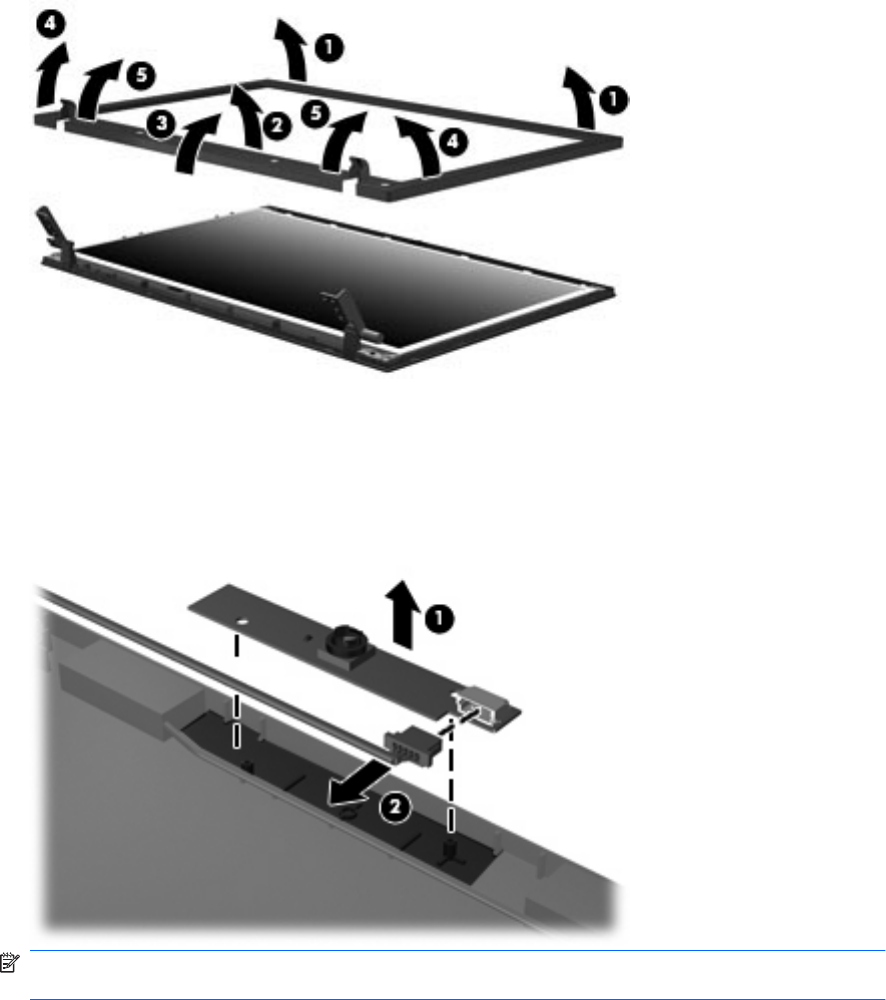

The display bezel is available using spare part numbers 536423-001 on computers with 14-in
displays and a webcam and 536422-001 on computers with 14-in displays and no webcam.
5. If it is necessary to replace the webcam module, gently pull the webcam module away from the
double-sided tape on the display enclosure (1), disconnect the webcam cable from the module
(2), and then remove the webcam. The webcam module can be ordered by using spare part number
535797-001.
NOTE: To replace the webcam module in the display enclosure, align the holes on the webcam
module with the pins on the display enclosure and press onto the double-sided tape.
Component replacement procedures 87
