7 Screw listing
This chapter provides specification and reference information for the screws used in the computer. All
screws listed in this section are available in the Screw Kit, spare part number 535870-001.

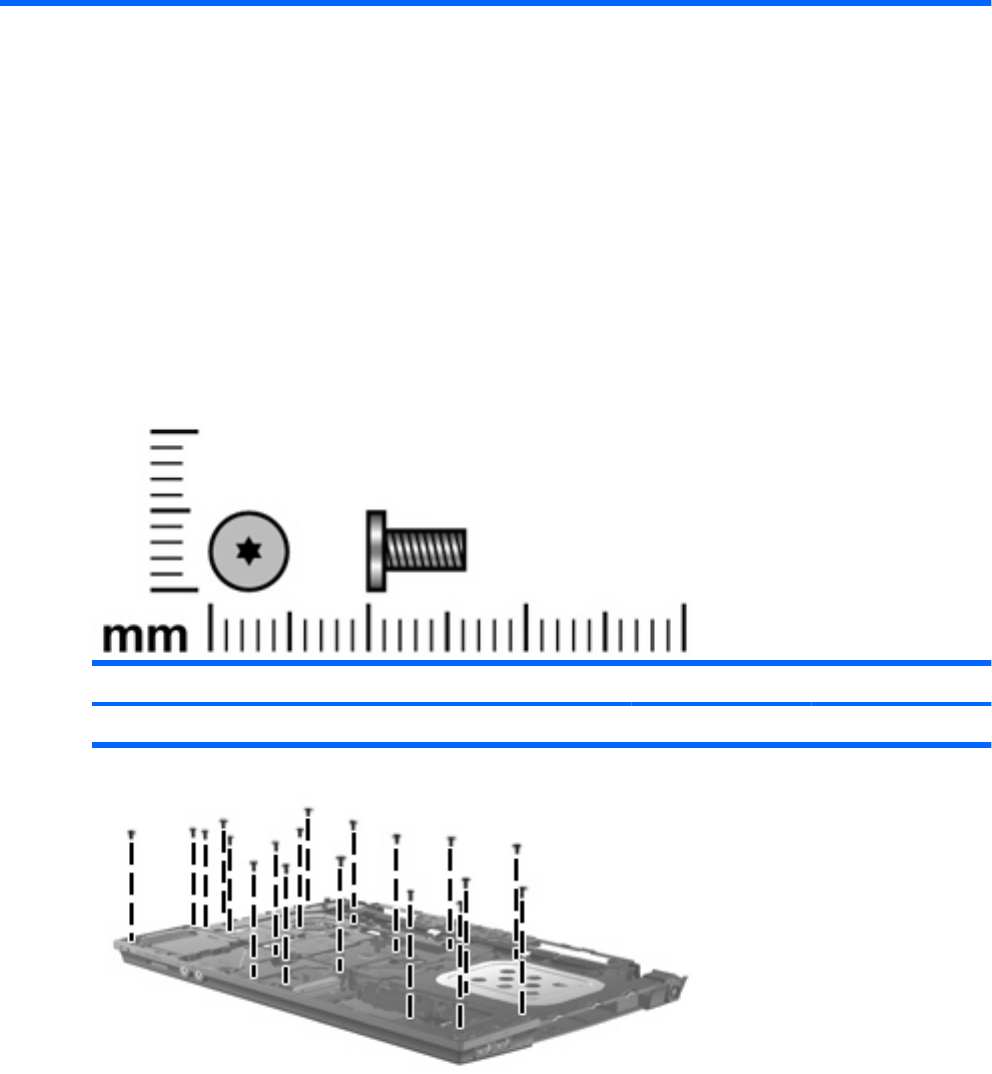

Torx T8M2.5×6.0 screw
Color Quantity Length Thread Head diameter
Silver 19 6.0 mm 2.5 mm 5.0 mm
Where used: 19 screws that secure the top cover to computers equipped with 15-in displays
Torx T8M2.5×6.0 screw 145
