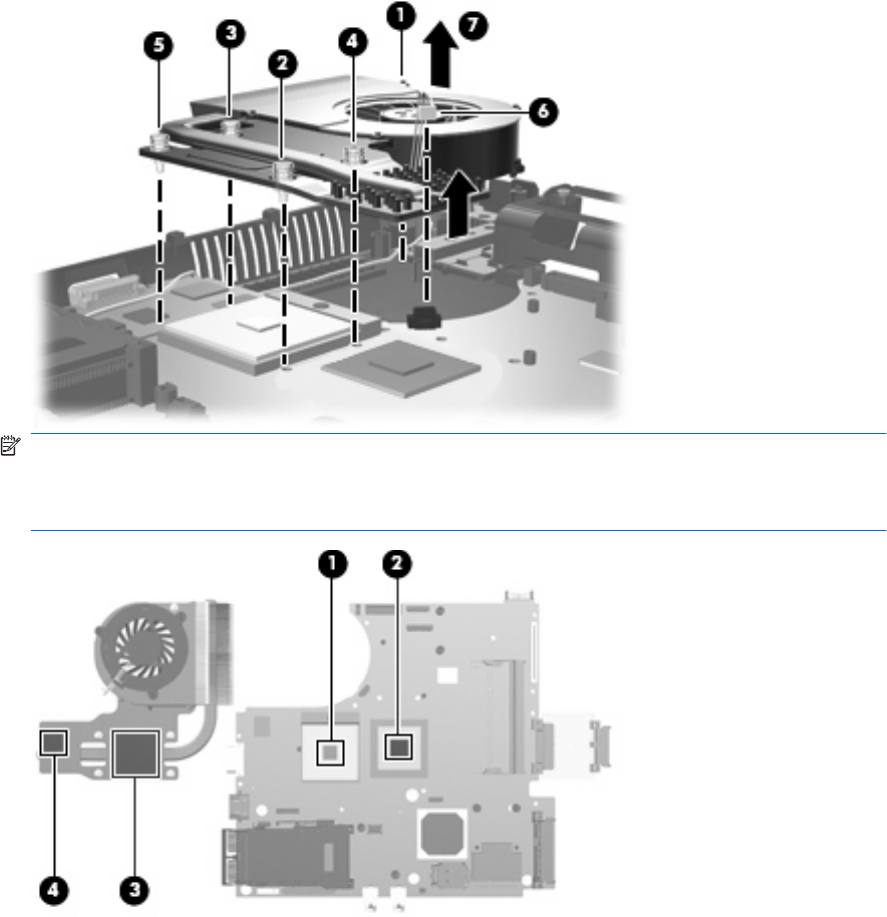

6. Disconnect the fan cable from the system board (6), and remove the heat sink (7).
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the system board
(1) and (2) and the heat sink components (3) and (4) each time the heat sink is removed.
Replacement thermal material is included with all heat sink, system board, and processor spare
part kits.
108 Chapter 4 Removal and replacement procedures
