Technical information

45

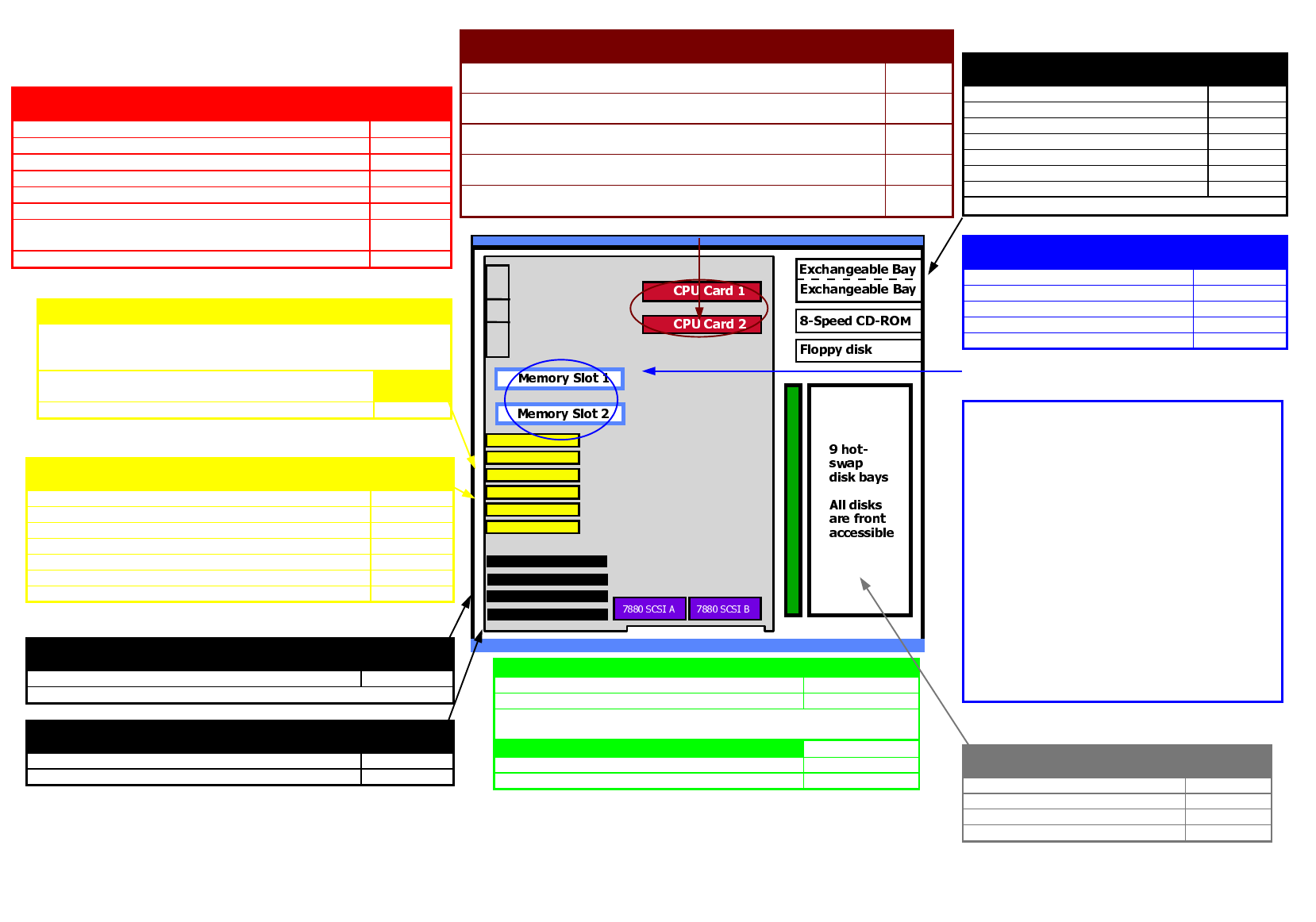

teamserver M700i base configurations
What to
order
teamserver M750i
1 200MHz/512KB PPro, 0MB, 0GB
SV642007
teamserver M752i
2 200MHz/512KB PPro, 0MB, 0GB
SV642009
teamserver M754i
4 200MHz/512KB PPro, 0MB, 0GB
SV642011
teamserver M756i
6 200MHz/512KB PPro, 0MB, 0GB
SV642046
teamserver M794i
4 200MHz/1MB PPro, 0MB, 0GB
SV642072
teamserver M796i
6 200MHz/1MB PPro, 0MB, 0GB
SV642073
teamserver M700i
System Cabinet Redundant Power
Supply
SV642018
servermanager Assist Pro
SV000139
Uninterrupted Power Supply Products What to order
1.4 kVA UPS Base Package (220–240V)* SV537005
2.2 kVA UPS Base Package (220–240V)* SV537016
* 1.4kVA supports one system cabinet and one expansion cabinet,
2.2kVA supports one system cabinet and three expansion cabinets
UPS Kit for Operating System Used
UPS Kit for SCO OpenServer and SCO UnixWare SV520020
Windows NT and NetWare in Base Package
teamserver M700i processor upgrades
What to
order
teamserver M700i
200MHz One 512KB CPU
SV6420
01
teamserver M700i
200MHz One 512KB CPU and one 2-CPU Board
SV6420
03
teamserver M700i
200MHz Two 512KB CPUs and one 2-CPU Board
SV6420
04
teamserver M754i
to
M756i
upgrade: Two 512KB CPUs, two 3-CPU
Boards and six heat sinks
SV6420
68
teamserver M794i
to
M796i
upgrade: Two 1MB CPUs and two heat
sinks
SV6420
69
team
server M700
i
Internal Backup Devices What to
order
1GB CMT drive SV642057
4-8GB 4mm DDS-2 DAT drive SV520009
12-24GB 4mm DDS-3 DAT drive SV546012
60-120GB 4mm DDS-3 DAT stacker * SV546016
7-14GB Exabyte Eliant 820 drive SV546033
20-40GB Exabyte Mammoth drive SV546028
20-40GB DLT4000 Tape Drive * SV546034
*
F
ull-height device and occupies both bays
a
nd Mouse
P
CI Slot
E
ISA Slot
E
ISA Slot
E
ISA Slot
E
ISA Slot
P
CI Slot
P
CI Slot
P
CI Slot
P
CI Slot
P
CI Slot
P
S2
P
arallel
S
VGA Port
C
OM 1 and
ECC EDO Memory What to
order
64MB Memory (2*32MB DIMMs) SV578024
128MB Memory (2*64MB DIMMs) SV578025
256MB Memory (2*128MB DIMMs) SV578033
512MB Memory (2*256MB DIMMs) SV642015
Memory Board SV642014
Memory DIMMs can be mixed in pairs.
Maximum of 2GB per memory board.
RAID
teamserver M700i
supports RAID 0, 1, 0+1, 3 and 5 in the system cabinet
and in the expansion cabinet. The Mylex is a dual-channel PCI adapter (same
capacity disks must be used).
What to
order
Mylex DAC960 PG-2 SV521022
PCI Adapters What to
order
PCI SE SCSI Adapter (Adaptec 2940UW) SV521002
PCI Differential SCSI Adapter (Adaptec 2944UW) SV521016
Intel EtherExpress PRO/100+ Ethernet Adapter SV520049
Olicom Token-Ring 16/4 Adapter (OC3137) SV520044
FDDI Adapter: Single-Attach Station (SAS) (SK5541)* SV631001
FDDI Adapter: Dual-Attach Station (DAS) (SK5544)* SV631002
P92 PCI dual-port WAN Adapter* SV630002
* Refer to
PD-TS-0056
for operating system restrictions
ISA/EISA WAN Adapters What to
order
HSV24+ low-speed V.24 single-port WAN Adapter* NP000009
* Refer to
PD-TS-0056
for operating system restrictions
Asynchronous Adapters What to
order
ISA SIO Asynchronous Host Adapter (Max 1) SV521011
Specialix High Connectivity RIO RS232 Async Adapter 57560057
Expansion Cabinets
Up to 12 expansion cabinets can be connected to a
teamserver M700i
. Each one can contain up to 14 of the
following disks:
4GB 1” SCA Disk (7200rpm) & carrier SV642031
9GB 1” SCA Disk (7200rpm) & carrier SV565051
18GB 1.6” SCA Disk (7200rpm) & carrier SV565052
External Devices
The following external devices can be connected to a
teamserver M700i
:
1GB External CMT SV500062
120GB 4mm Ext. DDS-3 DAT Stacker SV546038
40GB DLT 4000 External Tape Drive SV546006
70GB DLT 7000 External Tape Drive SV546037
(includes SCSI cable for connection to 2940UW)
SCSI cable: 2940UW to CMT/DAT SV561009
SCSI cable: 2944UW to Exabyte SV561001
Disk What to
order
4GB 1” SCA Disk (7200rpm) SV642023
9GB 1” SCA Disk (7200rpm) SV565044
18GB 1.6” SCA Disk (7200rpm) SV565048
2.6GB Magneto-Optical disk SV545005
