Technical information

36
MSCS Mylex Ultra2/LVD Kits What to order
Windows NT Server What to
order
Windows NT Server, Enterprise Edition 4.0
(including 25 Client Access Licences)
SV564085
One copy required per server
The Fujitsu LVD Disk Node can contain up to eight disks.
The rack-mount Disk Node includes a power supply and two fans. A redundant power supply
can be added without decreasing the number of drive bays. The redundant fan is already
provided.
Disk Node Options What to order
LVD Disk Node SV657042
Redundant PSU for Disk node (Each PSU requires a separately orderable mains cable) SV657013
Hot Swap Replacement Fan SV578136
team
server L800
i
base configurations
What to
order
Rack-mount
team
server L870
i
0MB
,
500MHz/512KB Pentium III Xeon CPU,
no HDD, no RAM
SV656071
Rack-mount
team
server L880
i
0MB
,
500MHz/1MB Pentium III Xeon CPU,
no HDD, no RAM
SV656072
team
server L800
i
rack fitting kit –
Consists of rack-mounting sliders,
shelves and front bezel. It is only
needed if an existing tower
L800
i
is to be
converted so that it can be fitted in a
rack.
SV578140
Two
team
server L800
i
are required.
It is recommended that two identical servers are
configured to run mission critical applications.
ECC EDO Memory What to
order
128MB RAM (4 * 32MB registered DIMM) SV656007
256MB RAM (4 * 64MB registered DIMM) SV656008
512MB RAM (4 * 128MB registered DIMM) SV656009
1024MB RAM (4 * 256MB registered DIMM) SV656010
1 or 2 CPU(s) require a minimum of 128MB memory.
3 CPUs require a minimum of 192MB memory.
4 CPUs require a minimum of 256MB memory
System Disk Options What to
order
4 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565054
9 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565060
18 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565061
9 GB 1” 10,000rpm SCA Ultra2/LVD SCSI SV565063
18 GB 1” 10,000rpm SCA Ultra2/LVD SCSI SV565064
36 GB 1.6” 10,000rpm SCA Ultra2/LVD SCSI SV565065
One system disk required per server.
Minimum system disk size > (3 * memory) + 2GB
This is for operating system files & page file.
Disks for LVD Disk Node What to
order
9 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565060
18GB 1.6” 7200rpm SCA Ultra2/LVD SCSI SV565056
18GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565061
9GB 1” 10000rpm SCA Ultra2/LVD SCSI SV565063
18GB 1” 10000rpm SCA Ultra2/LVD SCSI SV565064
36GB 1.6” 10000rpm SCA Ultra2/LVD SCSI SV565065
Maximum 8 x 36GB 1.6” disks in disk node.
Do not mix 10,000 and 7200 rpm disks on the same RAID
controller. NB. For RAID 5 configurations it is
recommended that the disks are all of the same capacity
e.g. All 9GB, 18GB or 36GB disks.
MSCS Mylex Ultra2/LVD Kit for 800i Range Servers* SV520062
MSCS Mylex Ultra2/LVD Upgrade Kit for 800i Range
Servers#
SV520063
*If it is required to upgrade an existing rack-mount
team
server C800
i
into an MSCS configuration then the MSCS Kit must be ordered (as well
as an additional server).
For information, the above SV520062 MSCS Mylex Ultra2/LVD kit for
team
server
800 comprises:
1 of MSCS SCSI Kit – needed to cable up configuration
1 of MSCS Cluster Installation Instructions
2 of Mylex eXtremeRAID 1100 (DAC1164) Controller – one per server
2 of Intel PRO/100+ Server Adapters – for interconnect LAN
#Allows the addition of an extra Mylex eXtremeRAID controller in each
server to which one or two additional disk nodes may be attached.

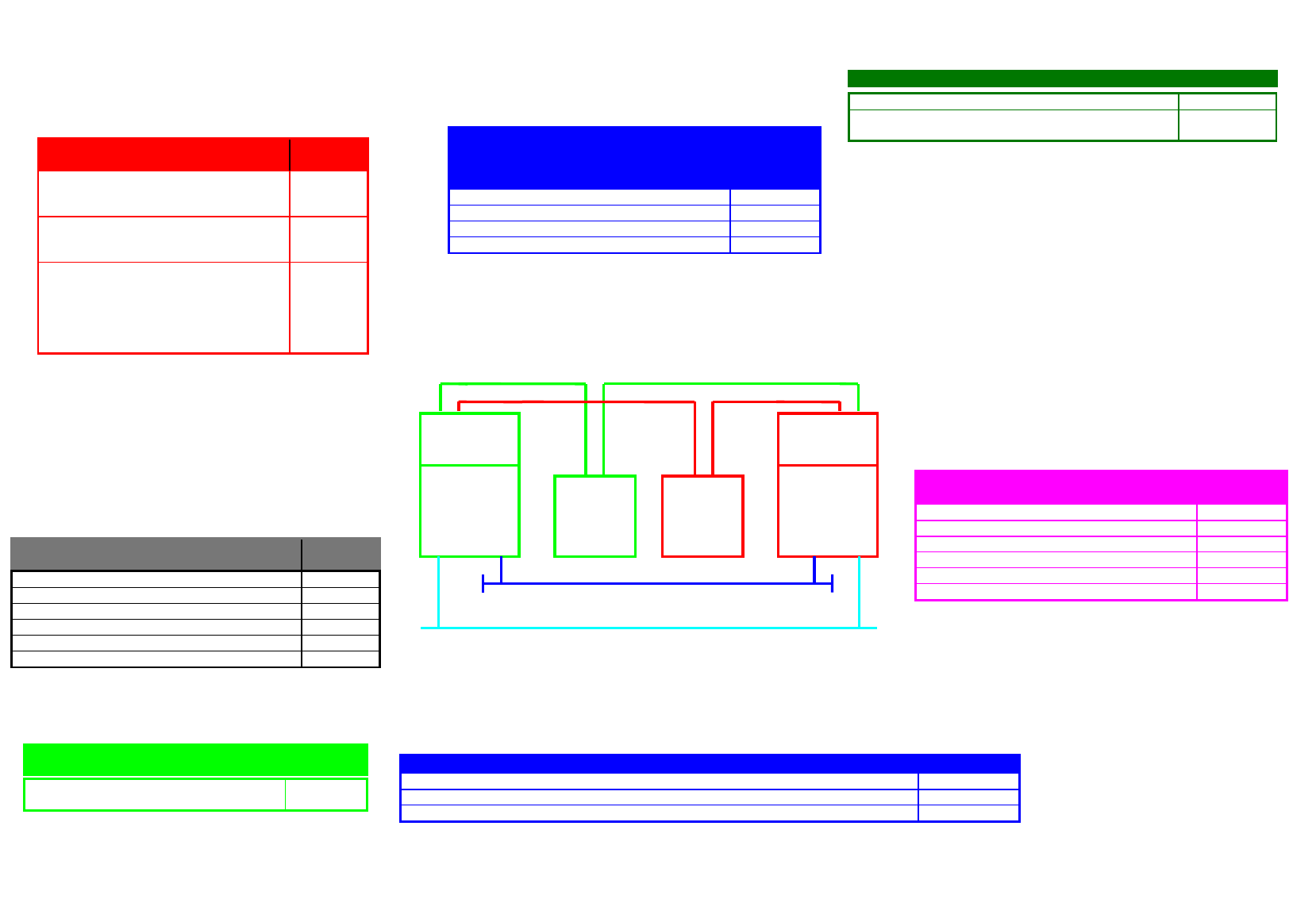

MSCS on Rack-mount L800
i
with LVD Disk Node
Mylex
eXtremeRAID
Controller
Mylex
eXtremeRAID
Controller
Private Interconnect LAN
Public LAN
L800
i
System 1
L800
i
System 2
Disk
Node 1
Disk
Node 2
SCSI
Ch 1
SCSI
Ch 2
