Technical information

34
MSCS Mylex Ultra2/LVD Kits What to order
The Fujitsu LVD Disk Node can contain up to eight disks. Note that the 10k rpm SCA disks
which are suitable for a Disk Node cannot be used in the
C800
i
system.
The rack-mount Disk Node includes a power supply and two fans. A redundant power supply
can be added without decreasing the number of drive bays. The redundant fan is already
provided.
Disk Node Options What to order
LVD Disk Node SV657042
Redundant PSU for Disk node (Each PSU requires a separately orderable mains cable) SV657013
Hot Swap Replacement Fan SV578136
ECC SDRAM What to order
(64MB or 128MB DIMM as standard)
64MB SV578093
128MB SV578094
256MB SV578095
1 or 2 CPU(s) require a minimum of 128MB memory.
team
server
C800
i
configurations
What to order
team
server
C800
i
rack fitting kit
- Consists of
rack-mounting brackets, a shelf & a front bezel
SV578110
Note that a C8x0
i
and a
C800
i
rack fitting kit
are both required for a rack-mount C8x0
i
team
server
C820
i
/Z
, 400MHz/512KB Pentium
II CPU, no HDD, no RAM
SV578156
team
server
C840
ie
/Z
, 450MHz/512KB Pentium
III CPU, no HDD, no RAM
SV578176
team
server
C870
i
/Z
, 500MHz/512KB Pentium
III CPU, no HDD, no RAM
SV578164
Two
team
server
C800
i
are required.
It is recommended that two identical servers are configured to run
mission critical applications.
System Hot-swap Disk Options
(Maximum of 3 SCA & one 3.5 disks)
What to
order
4 GB 1 7200rpm SCA Ultra2/LVD SCSI SV565054
9 GB 1 7200rpm SCA Ultra2/LVD SCSI SV565060
18 GB 1 7200rpm SCA Ultra2/LVD SCSI SV565061
Hot-swap Cage can accommodate up to
3 hot-swap SCA disks (includes 3 disk
carriers)
SV578097
System Fixed Disk Options
(Maximum of 4 Ultra or 5 Ultra2 3.5 disks)
What to
order
4 GB 1 7200rpm 68 pin Ultra-SCSI SV578013
9 GB 1 7200rpm 68 pin Ultra2/LVD SCSI SV565066
18 GB 1 7200rpm 68 pin Ultra2/LVD SCSI SV565067
Up to two 3.5 disks can be installed in the 5.25 disk bays if
the hot-swap cage is not used. One of the tape bays can
also be used for one Ultra2/LVD 68-pin disk.
Note:
One system disk required per server.
Minimum system disk size > (3 * memory) + 2GB
This is for operating system files & page file.
Windows NT Server What to
order
Windows NT Server, Enterprise Edition 4.0
(including 25 Client Access Licences)
SV564085
One copy required per server
Disks for LVD Disk Node What to
order
9 GB 1 7200rpm SCA Ultra2/LVD SCSI SV565060
18GB 1.6 7200rpm SCA Ultra2/LVD SCSI SV565056
18GB 1 7200rpm SCA Ultra2/LVD SCSI SV565061
9GB 1 10000rpm SCA Ultra2/LVD SCSI SV565063
18GB 1 10000rpm SCA Ultra2/LVD SCSI SV565064
36GB 1.6 10000rpm SCA Ultra2/LVD SCSI SV565065
Maximum 8 x 36GB 1.6 disks in disk node.
Do not mix 10,000 and 7200 rpm disks on the same RAID
controller. NB. For RAID 5 configurations it is
recommended that the disks are all of the same capacity
e.g. All 9GB, 18GB or 36GB disks.
MSCS Mylex Ultra2/LVD Kit for 800i Range Servers* SV520062
MSCS Mylex Ultra2/LVD Upgrade Kit for 800i Range
Servers#
SV520063
*If it is required to upgrade an existing rack-mount
team
server C800
i
into an MSCS configuration then the MSCS Kit must be ordered (as well
as an additional server).
For information, the above SV520062 MSCS Mylex Ultra2/LVD kit for
team
server
800 comprises:
1 of MSCS SCSI Kit needed to cable up configuration
1 of MSCS Cluster Installation Instructions
2 of Mylex eXtremeRAID 1100 (DAC1164) Controller one per server
2 of Intel PRO/100+ Server Adapters for interconnect LAN
#Allows the addition of an extra Mylex eXtremeRAID controller in each
server to which one or two additional disk nodes may be attached.

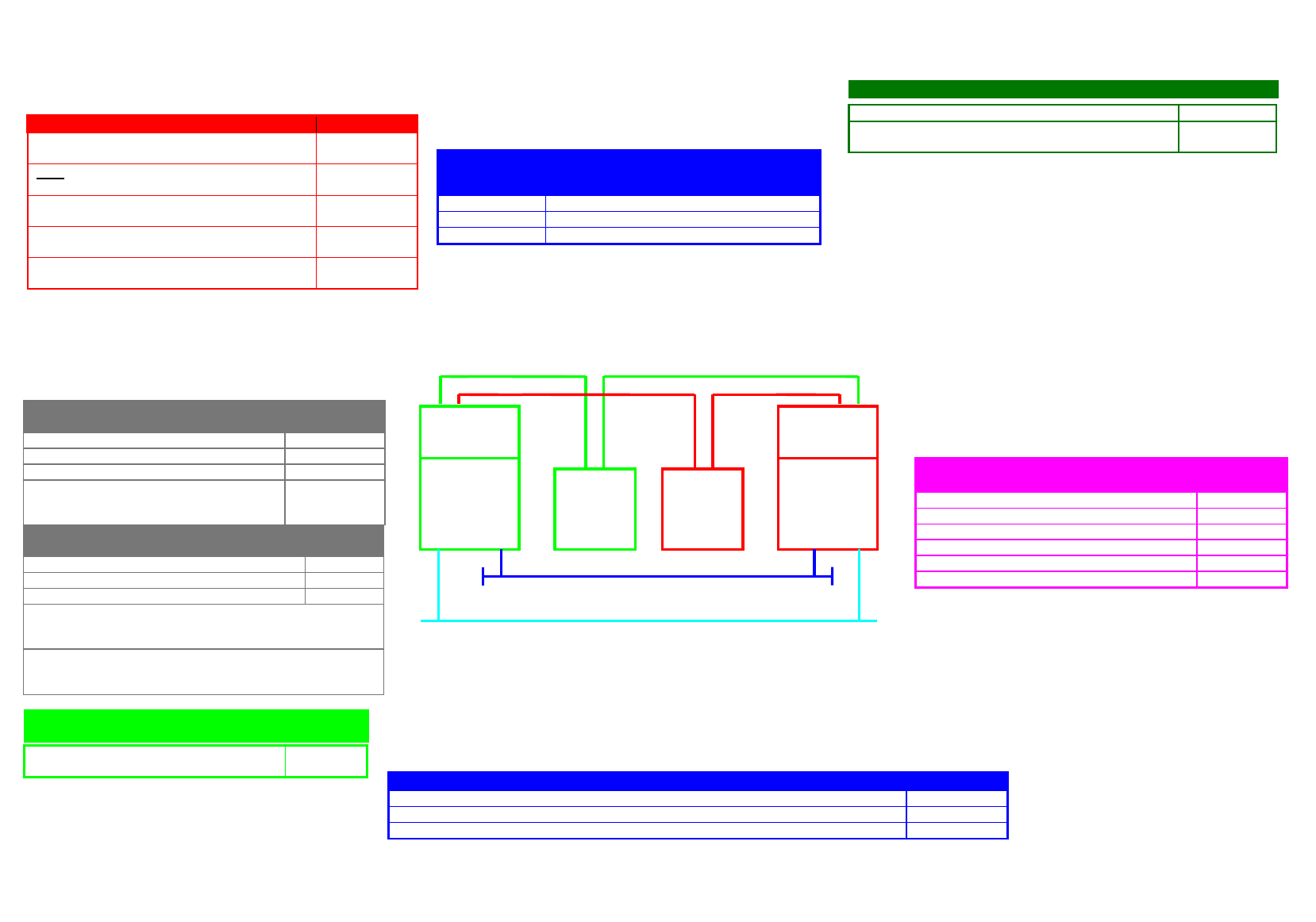

MSCS on Rack-mount C800i with LVD Disk Node
Mylex
eXtremeRAID
Controller
Mylex
eXtremeRAID
Controller
Private Interconnect LAN
Public LAN
C800
i
System 1
C800
i
System 2
Disk
Node 1
Disk
Node 2
SCSI
Ch 1
SCSI
Ch 2
