Technical information

30
The Fujitsu Disk Node can contain up to eight disks. Note that the 10k rpm SCA disks which
are suitable for a Disk Node cannot be used in the
C800
i
system.
The rack-mount Disk Node includes a power supply and two fans. A redundant power supply
can be added without decreasing the number of drive bays. The redundant fan is already
provided.
Disk Node Options What to order
Disk Node SV657030
Redundant PSU for Disk node (Each PSU requires a separately orderable mains cable) SV657013
Hot Swap Replacement Fan SV578136
ECC SDRAM What to order
(64MB or 128MB DIMM as standard)
64MB SV578093
128MB SV578094
256MB SV578095
1 or 2 CPU(s) require a minimum of 128MB memory.
teamserver C800i configurations
What to order
teamserver C800i rack fitting kit
- Consists of
rack-mounting brackets, a shelf & a front bezel
SV578110
Note that a C8x0i and a C800i rack fitting kit
are both required for a rack-mount C8x0i
teamserver C820i /Z
, 400MHz/512KB Pentium
II CPU, no HDD, no RAM
SV578156
teamserver C840ie/Z
, 450MHz/512KB Pentium
III CPU, no HDD, no RAM
SV578176
teamserver C870i /Z
, 500MHz/512KB Pentium
III CPU, no HDD, no RAM
SV578164
Two
teamserver C800i
are required.
It is recommended that two identical servers are configured to run
mission critical applications.
System Hot-swap Disk Options
(Maximum of 3 SCA & one 3.5” disks)
What to
order
4 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565054
9 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565060
18 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565061
Hot-swap Cage – can accommodate up to
3 hot-swap SCA disks (includes 3 disk
carriers)
SV578097
System Fixed Disk Options
(Maximum of 4 Ultra or 5 Ultra2 3.5” disks)
What to
order
4 GB 1” 7200rpm 68 pin Ultra-SCSI SV578013
9 GB 1” 7200rpm 68 pin Ultra2/LVD SCSI SV565066
18 GB 1” 7200rpm 68 pin Ultra2/LVD SCSI SV565067
Up to two 3.5” disks can be installed in the 5.25” disk bays if
the hot-swap cage is not used. One of the tape bays can
also be used for one Ultra2/LVD 68-pin disk.
Note:
One system disk required per server.
Minimum system disk size > (3 * memory) + 2GB
This is for operating system files & page file.
Windows NT Server What to
order
Windows NT Server, Enterprise Edition 4.0
(including 25 Client Access Licences)
SV564085
One copy required per server
Disks for SE Disk Node What to
order
4 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565054
9 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565060
18GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565061
18GB 1.6” 7200rpm SCA Ultra2/LVD SCSI SV565056
9GB 1” 10000rpm SCA Ultra2/LVD SCSI SV565063
18GB 1” 10000rpm SCA Ultra2/LVD SCSI SV565064
Maximum 8 x 18GB 1.6” disks in disk node.
It is recommended that all disks are the same capacity.
MSCS Mylex SE Kits What to order
MSCS Mylex SE Kit for 800i Range Servers* SV520060
MSCS Mylex SE Upgrade Kit for 800i Range Servers# SV520061
*If it is required to upgrade an existing rack-mount
teamserver C800i
into an MSCS configuration then the MSCS Kit must be ordered (as well
as an additional server).
For information, the above SV520060 MSCS Mylex SE kit for
teamserver
800 comprises:
1 of MSCS SCSI Kit – needed to cable up configuration
1 of MSCS Cluster Installation Instructions
2 of Mylex eXtremeRAID 1100 (DAC1164) Controller – one per server
2 of Intel PRO/100+ Server Adapters – for interconnect LAN
#Allows the addition of an extra Mylex eXtremeRAID controller in each
server to which one or two additional disk nodes may be attached.

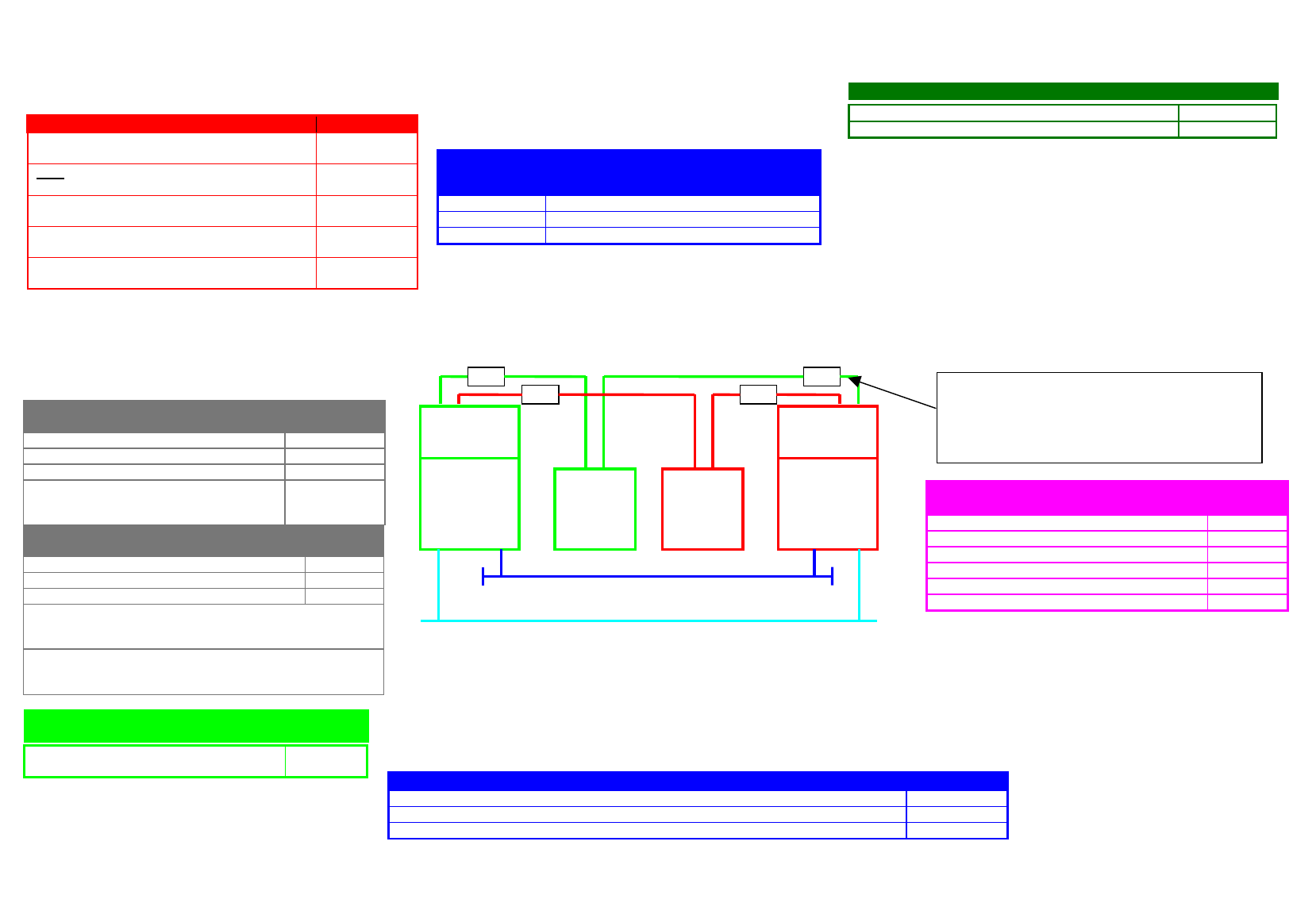

MSCS on Rack-mount C800
i
with S/E Disk Node
Mylex
eXtremeRAID
Controller
Mylex
eXtremeRAID
Controller
Private Interconnect LAN
Public LAN
C800
i
System 1
C800
i
System 2
Disk
Node 1
Disk
Node 2
SCSI
Ch 1
SCSI
Ch 2
436 436
436 436
Cluster Helpers: SCSI bus extenders, also
provides termination if server fails. Part of
MSCS SCSI kit.
