Technical information

25

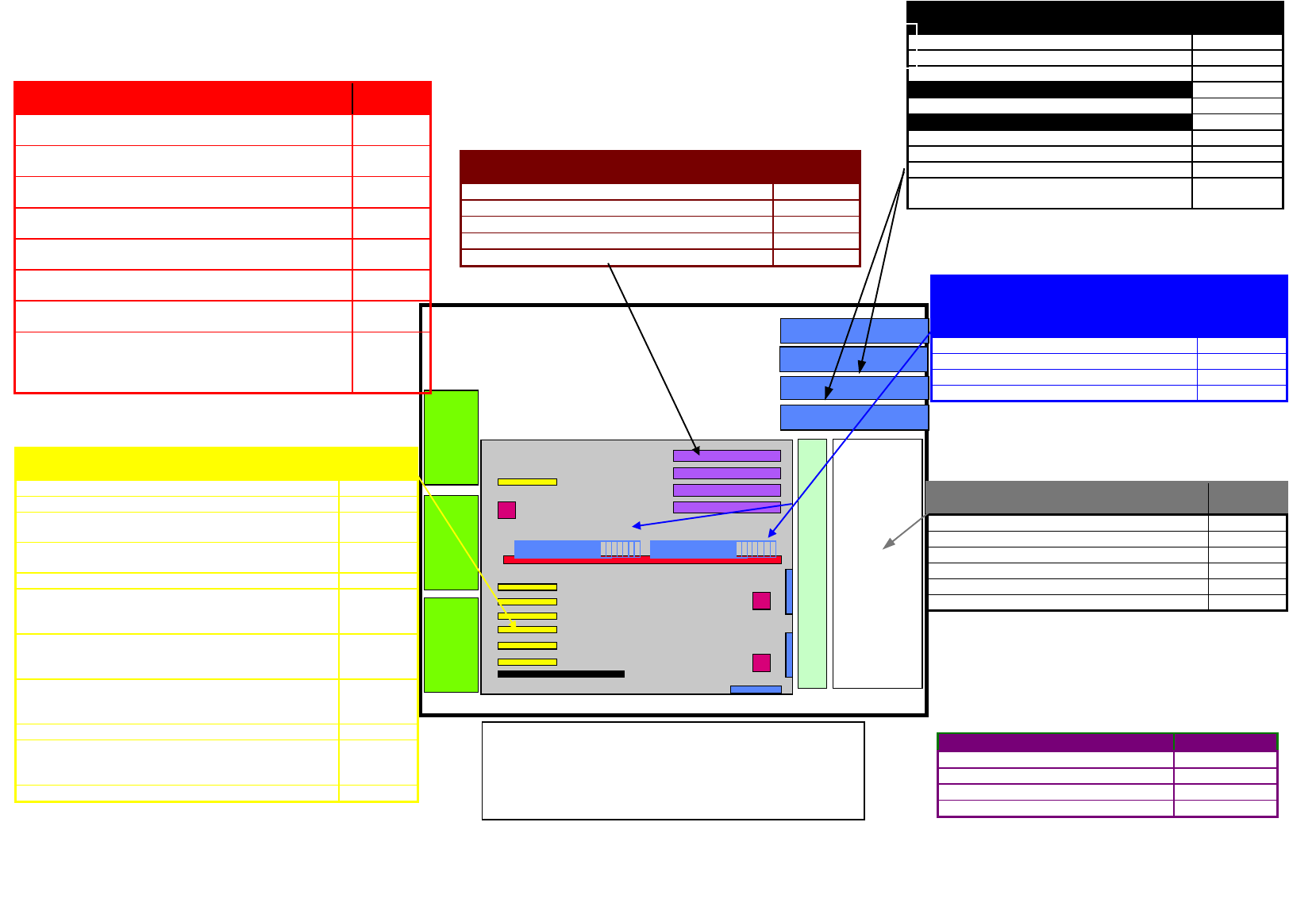

1.44MB 3.5” diskette drive
IDE CD-ROM
PSU
Memory Daughter Board
SVGA Graphics Std
PCI Ethernet Adapter Std
Narrow SCSI
Ultra2/LVD SCSI
PCI Slot 3
PCI Slot 1
PCI Slot 2
PCI Slot 4
Shared PCI/ISA Slot
2345
PSU
PSU
8 hot-
swap disk
bays
All disks
are front
accessible
7
hot-
swap
fans
PCI Slot 5
617
12345678
8
4
CPUs
teamserver
L8
00i Options
What to order
Additional PSU for
L800i
SV578111
Hot-Swap Replacement Fan SV578113
Server Manager Assist Pro for
L800i
SV000143
External SCSI connection for ext. tape SV521037
Server is supplied with 2 PSUs.
For hot-swap redundancy, an additional PSU is required.
Each PSU requires a separately orderable mains cable.
Hot-swap fans located in 3 places in system cabinet.
Disk Capacity Required What to
order
4 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565054
9 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565060
18 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565061
9 GB 1” 10,000rpm SCA Ultra2/LVD SCSI SV565063
18 GB 1” 10,000rpm SCA Ultra2/LVD
SCSI SV565064
36 GB 1.6” 10,000rpm SCA Ultra2/LVD
SCSI SV565065
Maximum of 252GB disk in system cabinet from
6 x 36GB 1.6” disks and 2 x 18GB 1” disks (10k rpm).
For RAID systems, order PCI RAID Card SV521032 or
SV521036. Do not mix 10,000 and 7200 rpm disks on
the same RAID controller. NB. For RAID 5
configurations it is recommended that the disks are all
of the same capacity
e.g. All 4GB, 9GB, 18GB or 36GB disks.
CPU note: 1½ voltage regulators required per
processor, 6 voltage regulators are available.
SVGA note: Cirrus Logic CL-GD5480 with 2MB
VRAM, is not upgradeable.
teamserver
L800i base configurations
What to
order
Rack-mount teamserver
L870i 0MB
, 500MHz/512KB
Pentium III Xeon CPU, no HDD, no RAM
SV656071
Rack-mount teamserver
L870i 128MB
, 500MHz/512KB
Pentium III Xeon CPU, no HDD, 128MB RAM
SV656073
Rack-mount teamserver
L880i 0MB
, 500MHz/1MB
Pentium III Xeon CPU, no HDD, no RAM
SV656072
Rack-mount teamserver
L880i 128MB
, 500MHz/1MB
Pentium III Xeon CPU, no HDD, 128MB RAM
SV656074
Rack-mount teamserver
L870ie 0MB
, 550MHz/512KB
Pentium III Xeon CPU, no HDD, no RAM
SV656087
Rack-mount teamserver
L880ie 0MB
, 550MHz/1MB
Pentium III Xeon CPU, no HDD, no RAM
SV656088
Rack-mount teamserver
L890ie 0MB
, 550MHz/2MB
Pentium III Xeon CPU, no HDD, no RAM
SV656092
teamserver L800i rack fitting kit
–
Consists of rack-
mounting sliders, shelves and front bezel. It is only
needed if an existing tower
L800i
is to be converted so
that it can be fitted in a rack.
SV578140
System pre-installed with Intel PRO/100+ Management Adapter
A maximum of 6
L800i
servers (without a console) or 4
L800i
servers (with a
console) may be fitted into a rack.
Internal Backup Devices
(Maximum of 2 devices)
What to
order
4-8GB SLR5 QIC tape drive SV546035
4-8GB DDS-2 4mm DAT tape drive SV520009
12-24GB DDS-3 4mm DAT tape drive SV546012
OR one from
20-40GB DLT4000 tape drive SV546034
External Backup Devices
20-40GB DLT4000 tape drive * SV546006
35-70GB DLT7000 tape drive # * SV546037
60-120GB DDS-3 4mm DAT Stacker * SV546038
280-560GB DLT7000 Autoloader ~ (NT only)
requires DLT7000 Autoloader rack mounting kit
SV546045
SV546046
# Includes SCSI cable for connection to Adaptec 2940UW
~ Includes SCSI cable for connection to Adaptec 2944UW
* Up to 2 backup devices can be mounted on a General
Purpose Shelf within the rack.
ECC EDO Memory What to
order
128MB RAM (4 * 32MB registered DIMM) SV656007
256MB RAM (4 * 64MB registered DIMM) SV656008
512MB RAM (4 * 128MB registered DIMM) SV656009
1024MB RAM (4 * 256MB registered DIMM) SV656010
Four way interleaved memory requires memory to be
installed in banks of 4 DIMMs, pair on left & pair on right of
memory daughter board.
i.e. Those servers supplied with 128MB or 256MB RAM, are
comprised of 4 * 32MB or 4 * 64MB DIMMs respectively
.
PCI I/O Adapters
(Intel PRO/100+ Management Adapter as standard)
What to
order
Intel EtherExpress PRO/10+ PCI adapter (Ethernet)* SV520048
Intel PRO/100+ Server Adapter (Ethernet)* SV520056
Adaptec AHA2940UW SE SC SCSI Adapter
External SCSI cable 2m (Adaptec to ext tape dev)
SV521002
SV561009
Adaptec AHA2940U2W Ultra2/LVD SC SCSI adapter
Ext. 3m SCSI cable: Adaptec 2940U2W to Disk Node
SV521029
SV642113
Adaptec AHA2944UW Differential SCSI Adapter SV521016
Mylex eXtremeRAID 1100 Ultra2 SCSI RAID adapter
(32MB, with battery)
Ext. 3m SCSI cable: Mylex RAID to Disk Node
SV521036
SV642114
SXPCI 32-bit Async Adapter
4-port Terminal Adapter for SXPCI Async Adapter
8-port Terminal Adapter for SXPCI Async Adapter
SV521027
SV520015
SV520016
RIO 128-bit Async Adapter
16-port RTA with DB25 connector
16-port RTA with RJ45 connector
SV521028
SV521030
SV521031
Olicom 16/4 Token Ring card (OC3140) SV520058
P92 dual-port WAN Adapter*
V.24 cable for P92 WAN Adapter
X.21 cable for P92 WAN Adapter
SV630002
SV630003
SV630004
FDDI Adapter: Dual Attach Station (DAS) (SK5544)* SV631002
* Refer to PD for operating system restrictions
Processor upgrades What to
order
teamserver
L800i
500MHz/512KB Pentium III Xeon
SV656069
teamserver
L800i
500MHz/1MB Pentium III Xeon
SV656070
teamserver
L800i
550MHz/512KB Pentium III Xeon
SV656089
teamserver
L800i
550MHz/1MB Pentium III Xeon
SV656090
teamserver
L800i
550MHz/2MB Pentium III Xeon
SV656093
Rack-mount
team
server
L870
i
, L880
i,
L870
ie
, L880
ie,
L890
ie
