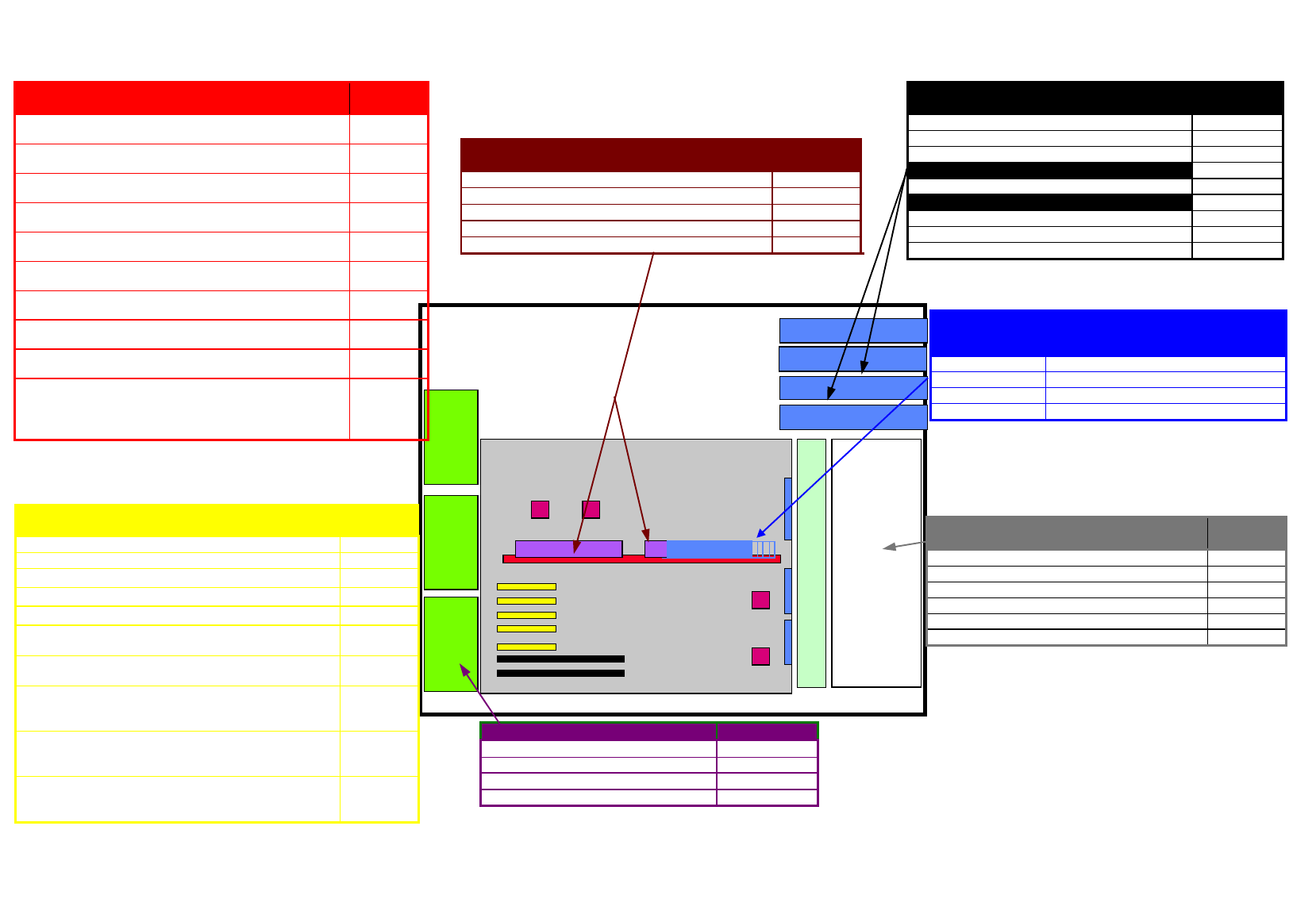

1.44MB 3.5” diskette drive

IDE CD-ROM

PSU

CPU Daughter Board

SVGA Graphics Std

On-board Ethernet Std

Ultra2/LVD SCSI

PCI Slot 3

ISA Slot

PCI Slot 1

PCI Slot 2

PCI Slot 4

Shared PCI/ISA Slot

1234

Narrow SCSI

PSU

8 hot-

swap disk

bays

All disks

are front

acces s i ble

hot-

swap

fans

Processor upgrades What to

order

teamserver

G800i

400MHz Pentium II Upgrade

SV578078

teamserver

G800i

450MHz Pentium III Upgrade

SV578179

teamserver

G800i

500MHz Pentium III Upgrade

SV578172

teamserver

G800i

550MHz Pentium III Upgrade

SV578192

teamserver

G800i

600MHz Pentium III Upgrade

SV578215

teamserver

G800i Options

What to order

Additional PSU for

G800i

SV578111

Hot-Swap Replacement Fan SV578113

Server Manager Assist for

G800I

SV000147

External SCSI connection for ext. tape SV521037

Server is supplied with 1 PSU.

For hot-swap redundancy, an additional PSU is required.

Each PSU requires a separately orderable mains cable.

Internal Backup Devices

(Maximum of 2 devices)

What to

order

4-8GB SLR5 QIC tape drive SV546035

4-8GB DDS-2 4mm DAT tape drive SV520009

12-24GB DDS-3 4mm DAT tape drive SV546012

OR one from

20-40GB DLT4000 tape drive SV546034

External Backup Devices

20-40GB DLT4000 tape drive * SV546006

35-70GB DLT7000 tape drive * SV546037

60-120GB DDS-3 4mm DAT Stacker * SV546038

* Up to 2 backup devices can be mounted on a General

Purpose Shelf within the rack.

Disk Capacity Required What to

order

4 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565054

9 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565060

18 GB 1” 7200rpm SCA Ultra2/LVD SCSI SV565061

9 GB 1” 10000rpm SCA Ultra2/LVD SCSI SV565063

18 GB 1” 10000rpm SCA Ultra2/LVD SCSI SV565064

36 GB 1.6” 10000rpm SCA Ultra2/LVD SCSI SV565065

Maximum of 252GB disk in system cabinet from

6 x 36GB and 2 x 18GB disks.

For RAID systems, order PCI RAID Card SV521032 or

SV521036.

NB. For RAID 5 configurations it is recommended that

the disks are all of the same capacity

e.g. All 4GB, 9GB, 18GB or 36GB disks.

teamserver

G800i configurations

What to

order

Rack-mount teamserver

G820i 0MB

400MHz/512KB Pentium II CPU, LVD, no HDD, no RAM

SV661027

Rack-mount teamserver

G820i 128MB

400MHz/512KB Pentium II CPU, LVD, no HDD, 128MB RAM

SV661028

Rack-mount teamserver

G840ie 0MB

450MHz/512KB Pentium III CPU, LVD, no HDD, no RAM

SV661029

Rack-mount teamserver

G840ie 128MB

450MHz/512KB Pentium III CPU, LVD, no HDD, 128MB RAM

SV661030

Rack-mount teamserver

G870i 0MB

500MHz/512KB Pentium III CPU, LVD, no HDD, no RAM

SV578170

Rack-mount teamserver

G870i 128MB

500MHz/512KB Pentium III CPU, LVD, no HDD, 128MB RAM

SV578171

Rack-mount teamserver

G870ie 0MB

550MHz/512KB Pentium III CPU, LVD, no HDD, no RAM

SV661043

Rack-mount teamserver

G870ie 128MB

550MHz/512KB Pentium III CPU, LVD, no HDD, 128MB RAM

SV661044

Rack-mount teamserver

G870ix 0MB

600MHz/512KB Pentium III CPU, LVD, no HDD, no RAM

SV661051

teamserver G800i rack fitting kit

–

Consists of rack-

mounting brackets, replacement side panels and front

bezel. It is only needed if an existing tower

G800i

is to

be converted so it can be fitted in a rack.

SV578140

A maximum of 6

G800i

servers (without a console) or 4

G800i

servers (with a

console) mau be fitted into a rack.

PCI I/O Adapters

(Intel 82558 Ethernet controller

on motherboard)

What to

order

Intel EtherExpress PRO/10+ PCI adapter (Ethernet)* SV520048

Intel PRO/100+ Server Adapter (Ethernet)* SV520056

Eicon P92 dual-port WAN Adapter (UnixWare only)

SV630002

FDDI PCI Adapter: Dual-Attach Station (DAS SK5544)

SV631002

Olicom 16/4 Token Ring card (OC3140)

SV520058

Adaptec AHA2940UW SE SC SCSI adapter

External SCSI cable 2m (Adaptec to ext tape dev)

SV521002

SV561009

Adaptec AHA2940U2W Ultra2/LVD SC SCSI adapter

Ext. 3m SCSI cable: Adaptec 2940U2W to Disk Node

SV521029

SV642113

SXPCI 32-port PCI Async Adapter

4-port Terminal Adapter for SXPCI Async Adapter

8-port Terminal Adapter for SXPCI Async Adapter

SV521027

SV520015

SV520016

RIO 128-port PCI Async Adapter

16-port RTA with DB25 connector

16-port RTA with RJ45 connector

SV521028

SV521030

SV521031

Mylex eXtremeRAID 1100 Ultra2 SCSI RAID adapter

(32MB, with battery)

Ext. 3m SCSI cable: Mylex RAID to Disk Node

SV521036

SV642114

* Refer to PD for operating system restrictions

ECC SDRAM What to order

(64MB or 128MB DIMM as standard)

64MB SV578093

128MB SV578094

256MB SV578095

512MB SV578180

* Maximum of 1GB requires removal of initial 64MB or

128MB ECC Memory.

DIMMs of different sizes may be mixed.

Note: 512MB upgrade not available on non-Ultra2/LVD

models (SV578098 – SV578154)

Rack-mount

team

server

G820

G840

ie,

G870

and

G870
