Technical information

18
Rack-mounted
team
server 800 series systems

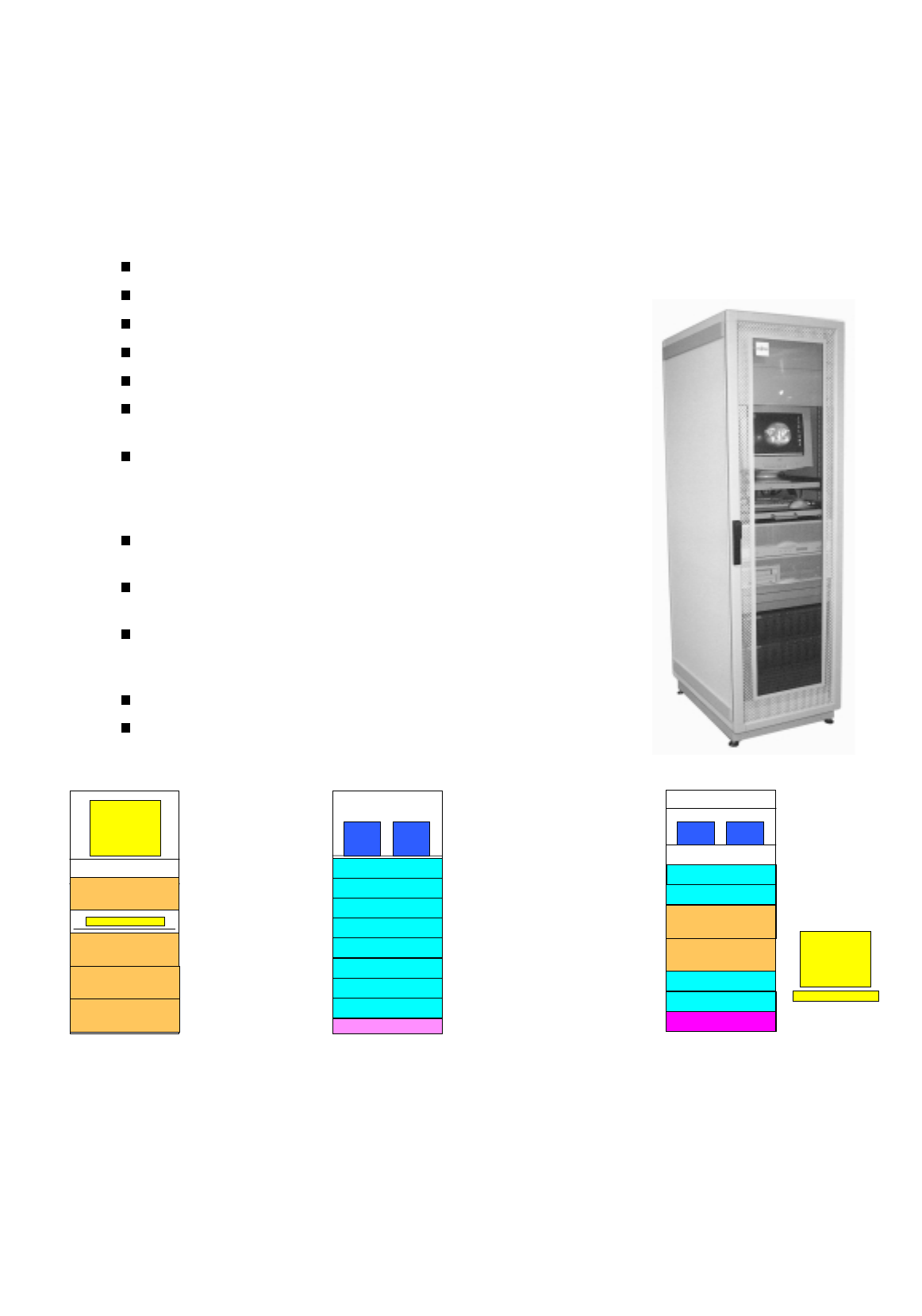

Rack-mounted servers from Fujitsu are the way to save space, reduce the cost of ownership, centralise the administration
and achieve a secure installation.
The internal width of the rack enclosure is 19", the standard for rack-mounted equipment, and the internal height is 42U
(1U = 1¾" = 44.5mm). The external rack dimensions are 2155mm high, 600mm wide and 900mm deep.
Fujitsu offers a complete range of rack-mount options to suit all customer needs. This includes:
Rack-mounting kit for fitting
C800i tower servers into a rack.
Rack-mount
G800i systems.
Rack-mount
L800i systems.
Rack-mount
T800i systems.
Monitor, keyboard and mouse options for the above.
Disk Node which can house up to eight hard disk drives and can
be configured for all rack-mounted
800
series systems.
Console switches which allow a monitor, keyboard and mouse to
be switched between up to 4 servers. Two switches can be
cascaded to allow the console to be switched between up to 7
servers.
A full range of back-up devices, suitable for the large systems
which can be assembled and managed using Fujitsu’s rack.
Rack-mounted UPS. If a UPS is installed, it may be shared
between all systems in the rack.
Industry-standard operating systems: Microsoft Windows NT
®
Server 4.0, SCO UnixWare 7, Novell IntranetWare 4.11
(IntranetWare is not supported on
T800i)
Space-saving storage for a number of servers
Fully SNMP-compliant server-management solution for centralised
systems administration
Note: these diagrams are not to scale.
Console Switch
M
onitor
a
nd
k
eyboard
Disk Node
team
server L
i
Disk Node
Disk Node
Disk Node
UPS
team
server L
i
t
wo DLTs on shelf
Console Switch
Monitor
Keyboard
maximum of
four C
i
,
G
i
,
L
i
or
T
i
servers
per rack with a console
team
server Ci Gi Li
team
server Ci Gi Li
team
server Ci Gi Li
team
server Ci Gi Li
two DAT Stackers on shelf
UPS
Disk Node
Disk Node
Disk Node
Disk Node
Disk Node
Disk Node
Disk Node
Disk Node
