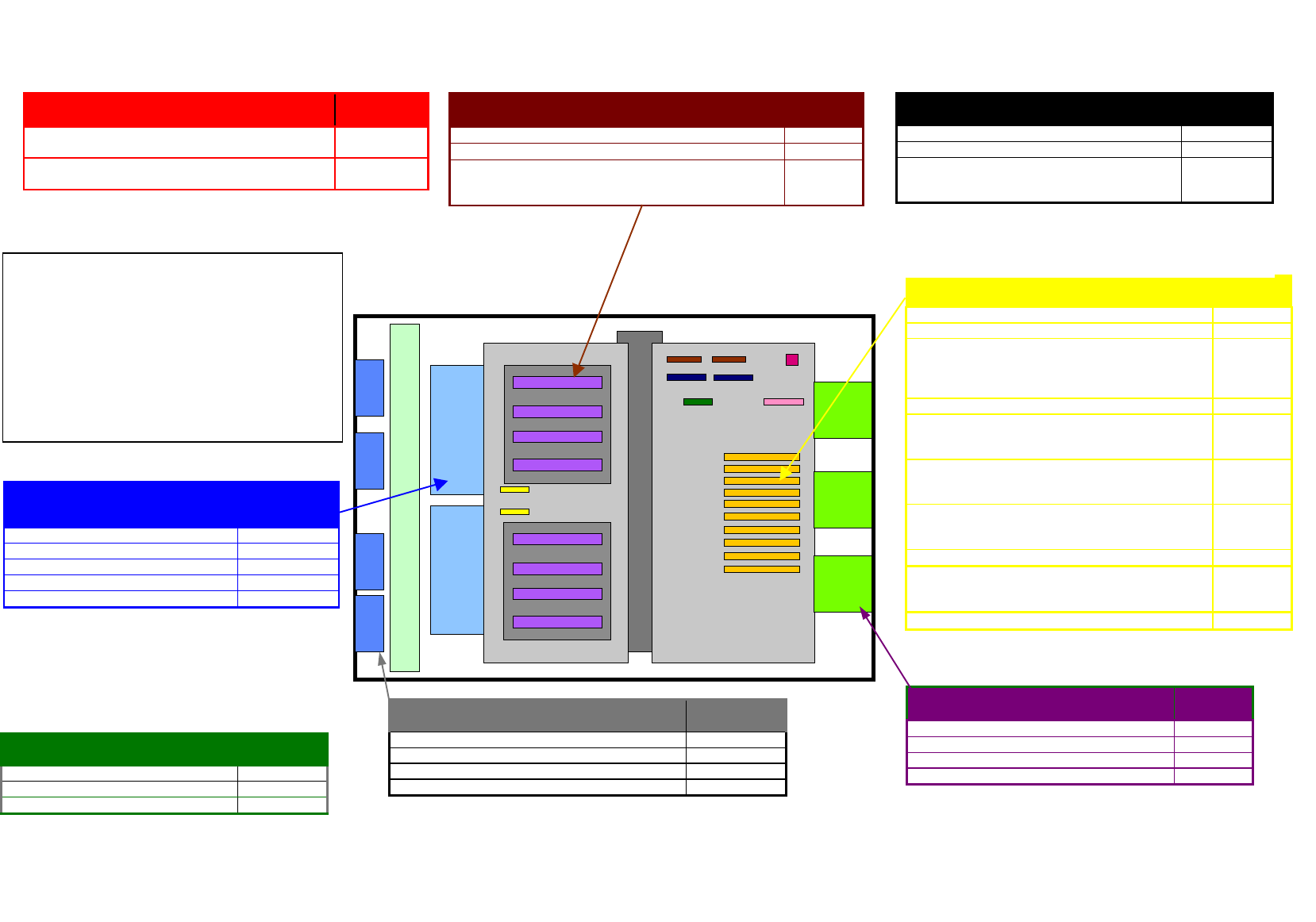

hot-

swap

fans

I/O riser card connector

Profusion carrier

I/O carrier

4 x

66MHz/64-bit

hot-plug

PCI Slots

FDD connectorIDE connector

SCSI A and B

servermanager

feature connector

PSU

CD-

ROM

FDD

Memory

Carrier

Board 1

USB connector

I/O riser connector

6 x

33MHz/64-bit

hot-plug

PCI Slots

HDD

Memory

Carrier

Board 2

Processor mezzanine 2

PIII

CPUs

Processor mezzanine 1

Xeon

CPUs

PIII

Xeon

Cache Coherency Boards

Processor upgrades What to

order

team

server

T800

550MHz/1MB Pentium III Xeon

SV663005

team

server

T800

550MHz/2MB Pentium III Xeon

SV663006

Processor board upgrade kit: one processor mezzanine

board, two cache coherency boards and four processor

termination assemblies

SV663007

Disk Capacity Required What to

order

9 GB 1” 10000rpm SCA Ultra2/LVD SCSI SV565063

18 GB 1” 1000rpm SCA Ultra2/LVD SCSI SV565064

36 GB 1.6” 10,000rpm SCA Ultra2/LVD SCSI SV565065

LVD Disk Node SV657042

Maximum of 72GB hot-swap disk in CPU node from 2 x 36GB 1.6”

disks.

or RAID systems, order PCI RAID Card SV521036. NB.

For RAID 5 configurations it is recommended that the disks

are all of the same capacity e.g. All 9GB, 18GB or 36GB disks.

team

server

T800

Options

What to

order

Redundant PSU for CPU node SV663009

Redundant PSU for Disk node SV657013

Hot-Swap Replacement Fan for Disk Node SV578136

Server Manager Assist Pro V2.1 (not 1

rel) SV000151

CPU node is supplied with 2 PSUs and 6 Fans (5+1).

For hot-swap redundancy, an additional PSU is required.

Each PSU in the Disk Node requires a separately

orderable mains cable. The CPU node requires only one

mains cable. CPU and Disk Node mains cables differ.

team

server

T800

base configurations

What to

order

team

server

T880

, 550MHz/1MB Pentium III Xeon

CPU, no HDD, no disk, no RAM

SV663001

team

server

T890

, 550MHz/2MB Pentium III Xeon

CPU, no HDD, no disk, no RAM

SV663003

Disk Node for expansion is orderable separately.

System pre-installed with Intel PRO/100+ Server Adapter.

There are no UK versions of the

T8x0

models because these “zero config”

servers are intended to be minimal configurations.

PCI I/O Adapters

(Intel PRO/100+ Server Adapter as standard)

What to

order

Intel PRO/100+ Server Adapter (Ethernet)* SV520056

Intel PRO/1000 Gigabit Server Adapter (Ethernet) SV520059

Adaptec AHA2940U2W LVD SCSI Adapter

Ext. 3m

SCSI cable: 2940U2W to Disk Node

Ext. 2m SCSI cable for connection from 2940U2W

or connector on CPU node to ext. tape device

SV521029

SV642113

SV561009

Adaptec AHA2944UW Differential SCSI Adapter SV521016

Mylex eXtremeRAID 1100 Ultra2 SCSI RAID

adapter (32MB, with battery)

Ext. 3m SCSI cable:

Mylex to Disk

Node

SV521036

SV642114

SXPCI 32-port Async Adapter

4-port Terminal Adapter for SXPCI Async Adapter

8-port Terminal Adapter for SXPCI Async Adapter

SV521027

SV520015

SV520016

RIO 128-port Async Adapter

16-port RTA with DB25 connector

16-port RTA with RJ45 connector

SV521028

SV521030

SV521031

Olicom Token-Ring 16/4 Adapter (OC3140) SV520058

P92 dual-port WAN Adapter* #

V.24 cable for P92 WAN Adapter

SV630002

SV630003

SV630004

FDDI dual port 64-bit 66MHz PCI Adapter # TBA

* Refer to PD for operating system restrictions

# Not available at first release

External Backup Devices What to

order

35-70GB DLT7000 tape drive # * SV546037

60-120GB DDS-3 4mm DAT Stacker * SV546038

280-560GB DLT7000 Autoloader ~ (NT only)

requires DLT7000 Autoloader rack mounting kit

Optional 6-tape magazine

SV546045

SV546046

SV546047

# Includes SCSI cable for connection to Adaptec 2940U2W or

to connector on rear panel of CPU node

~ Includes SCSI cable for connection to Adaptec 2944UW

* Up to 2 backup devices can be mounted on a General

Purpose Shelf within the rack.

Notes:

SCSI cables provided for CPU node disks and

exchangeables, IDE cable provided for CD-ROM.

Cirrus Logic CL-GD5446 with 2MB VRAM, is not

upgradeable.

Two Server Adapters required to support redundant NIC.

When the server is configured with three power supplies

(2 + 1), the third provides redundancy. The supplies can be

replaced, hot-swapped, without turning off server power.

The server requires a minimum of two power supplies.

Six fans (5 + 1) cool and circulate air through the server.

The sixth fan is redundant. The fans can be replaced, hot-

swapped, without turning off server power. Recommended

that failed fan be replaced as soon as possible.

T800

Mains Lead Sets What to

order

European SV537042

UK SV537039

Denmark TBA

The mains cable for the CPU Node PSUs is different

to the mains cable required for the Disk Node PSUs.

ECC SDRAM Memory What to order

128MB SV663014

256MB SV663015

512MB SV663016

1024MB (not 1

release) SV663017

Memory Carrier Upgrade Kit SV663008

When only a single memory carrier board is installed,

DIMM sizes on that carrier may vary, but when both

memory carrier boards are installed, the DIMM

configuration on the two carriers must be identical to

support memory interleaving for performance gains. i.e.

To operate in interleaved mode, the DIMMs

must

installer in pairs (one on each memory carrier) and in

the same locations on each carrier.

team

server

T880

and T890
