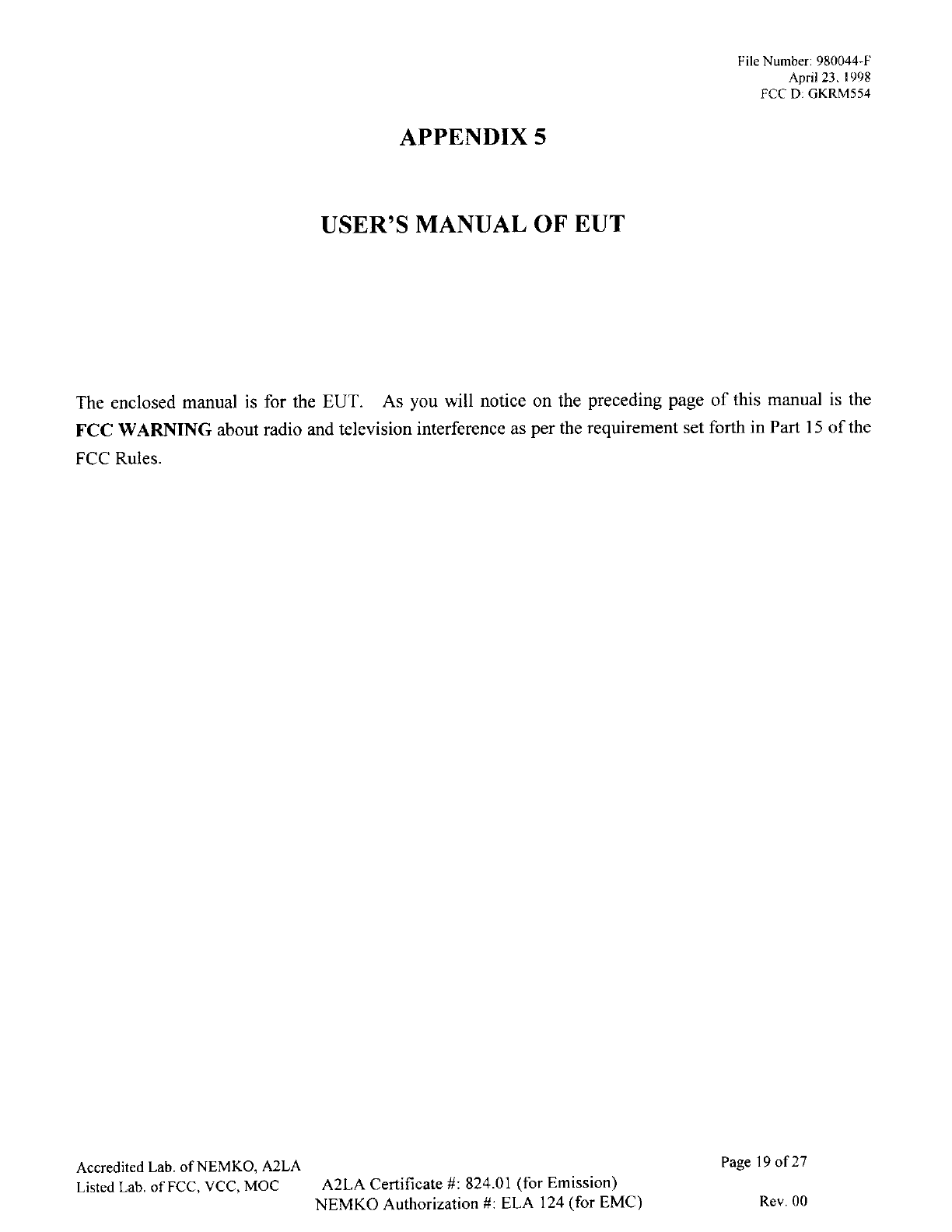

File Number: 980044-F April 23, 1998 FCC D: GKRM354 APPENDIX 5 USER’S MANUAL OF EUT The enclosed manual is for the EUT. As you will notice on the preceding page of this manual is the FCC WARNING about radio and television interference as per the requirement set forth in Part 15 of the FCC Rules. Accredited Lab. of ANEMONE, ALA Page 19 0f 27 Listed Lab. of FCC, VCC, MOC ALA Certificate #: 824.01 (for Emission) ANEMONE Authorization #: ELA 124 (for EMC) Rev.
Important Safety Instructions 1. Please read these instructions thoroughly Please keep this guide for future us Please disconnect the device Som the main supply before cleaning. Do note any liquid or + ~~ aerosol spray cleaners, The best for cleaning 15 a price of sloth dampened with water 4. To avoid damage of the device, you shooed only use accessory parts permitted by the manufacturer. The device must be protected against moisture. To setup the device. it must be put in a stable star son.
Federal Communications Commission (FCC Statement), This equipment has been tested and found to comply with the limits for a Class B digital device. pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates. uses, and can radiate radio frequency energy, and. if not installed and used in accordance with the instructions. may cause harmful interference to radio communications.
1. GETTING STARTED Unpacking. Connecting the Choosing A Workstation The AC Connection... The Signal Cable Connection 2 MONITOR ADJUSTMENT User Controls... unctions .. 3. ICON DESCRIPTIONS : +. TECHNICAL INFORMATION The Monitor's F. 137 Monitor Specifications Preset Timing... 3. TROUBLE SHOOTING Power... LED... Display 6. CARING FOR YOUR MONITOR Cleaning the screen. Ventilation slots .. Power Cord... Grounding... monitor and Stand.
1 Getting Started Introduction This document is related to a 13" CRT color monitor TM334 to be used with various kind of graphic adapters. including IBMVGA. INTERGOVERNMENTAL SAGA, VGA, and XGA modes. It is intended as a mutinous monitor type based on microprocessor unit, capable to support all the video standards. Other graphic standards can be supported by this monitor, simply adjusting image size and centering by means of the user controls gathered on the front panel.
Getting Started The 15” Monitor Connecting the Monitor and Stand * Align the stands four tabs with the slots on the bottom of the monitor. + Insert the tabs into the slots. * Slide the stand towards the front of the monitor. Figure I: Monitor and Stand Connection Choosing A Workstation When choosing an appropriate workspace, keep these few things in mind: o Sturdy, level surface « An electrical wall outlet and a telephone wall jack near the computer.
The 15” Monitor Renting Started Figure 2: The Workstation The AC Connection «Locate the AC port on the rear of the monitor + Plug the female end of the AC cord into the AC port. + Plug the male end inch the power supply.
Getting Started The 15” Monitor The Signal Cable Connection + Locate the ON/OFF power switch. See Figure 4. + Make sure that the Monitor power switch is in the OFF position. The’ QFF position is indicated with a circular icon. Power LED Preponderated Figure 4: ON/OFF Power Switch * Locate the VGA port on the rear of the PC. The signal cable has a standard 135-pin mini D-sub (VGA) connector. If you are having trouble locating the VGA port, please refer to the documentation which came with your PC.
2 Monitor Adjustments The monitor is capable of both tilt and swivel adjustments.
Monitor Adjustments The 15” Monitor User Controls This display device shall have external controls to implement at least the following function: : POWER SWITCH POWER INDICATOR BRIGHTNESS CONTROL CONTRAST CONTROL HORIZONTAL WIDTH CONTROL VERTICAL HEIGHT CONTROL PINCUSHION CONTROL. TRAPEZOID CONTROL A recall function shall be present on the monitor to recall the factory preset.
3 Icon Descriptions | Description o HN 0068 0 0 x Contrast: This control allows vou to adjust the display contrast level to accommodate the ambient lighting conditions of your working environment, Brightness: This control allows you to fine tune the display brightness level. H-Width: This control allows you to stretch or squeeze the display area horizontally.
15” Monitor Specifications 4 Technical Information Screen Dot Pitch (mm) Surface Display Size fmm) 3" CRT 0.28 Non-glare 260x193 Input Signal Video Suns RGB Analog Separate HAV, TTL Scanning Frequency Horizontal (KHz) 30-54 Vertical (Hz) 50-120 Video Bandwidth MHz Max.
The 157 Monitor Technical Information Display Modes Presetting User 12 a Low Radiation MPR 11 Optional Operating Temperature 0-40°C Relative Humidity Dimensions © 388mm(L) x Eminem( WY x 37Tmm(H) {including ult and swivel base) Weight 120 kg {excluding packaging) Preset Timing visage — LUT TT syn MODE | H Pies | Fas | PERKILY) | Hive) | Tess) | 190s) Tetanus | Tas) V Lines | Plato | Fun Tu{ms}| Dims) | Toms: Tp{usy | Titus) a dor Wrigley | 5 Crackpot | pole | Tron 1] gasohol 307s | sate | 51777 | man 1997 a
5 Trouble Shooting This section will try to anticipate potential problems that you may encounter in the day-to-day use of your monitor. Included in this section is information which should help solve these problems for you. If after trying the suggested solutions, your monitor's symptom remains the same, contact your authorized service center. Power Symptom: he monitor is switched on, but the power LED is rot lit, Solution: Check 10 make sure that the power cord and video cable are properly connected.
6 Caring For Your Monitor Cleaning the screen To clean your screen follow these steps: * Never spray liquid cleaners on or around the Monitor. * Spray the liquid cleaner on a rag while standing away from the computer. Avoid excessive dampening, + Clean the screen with slightly damp rag Ventilation slats The ventilation slots allow air to flow through the Monitor. They protect the unit from overheating. Therefore, do not cover or obstruct the ventilation slots.
