Using LEDs
Use the LEDs to troubleshoot your device.
4G DATA LEDs
Table 5-2 lists 4G DATA LEDs. Use these LEDs to trou
bleshoot LTE data issues with
your device.

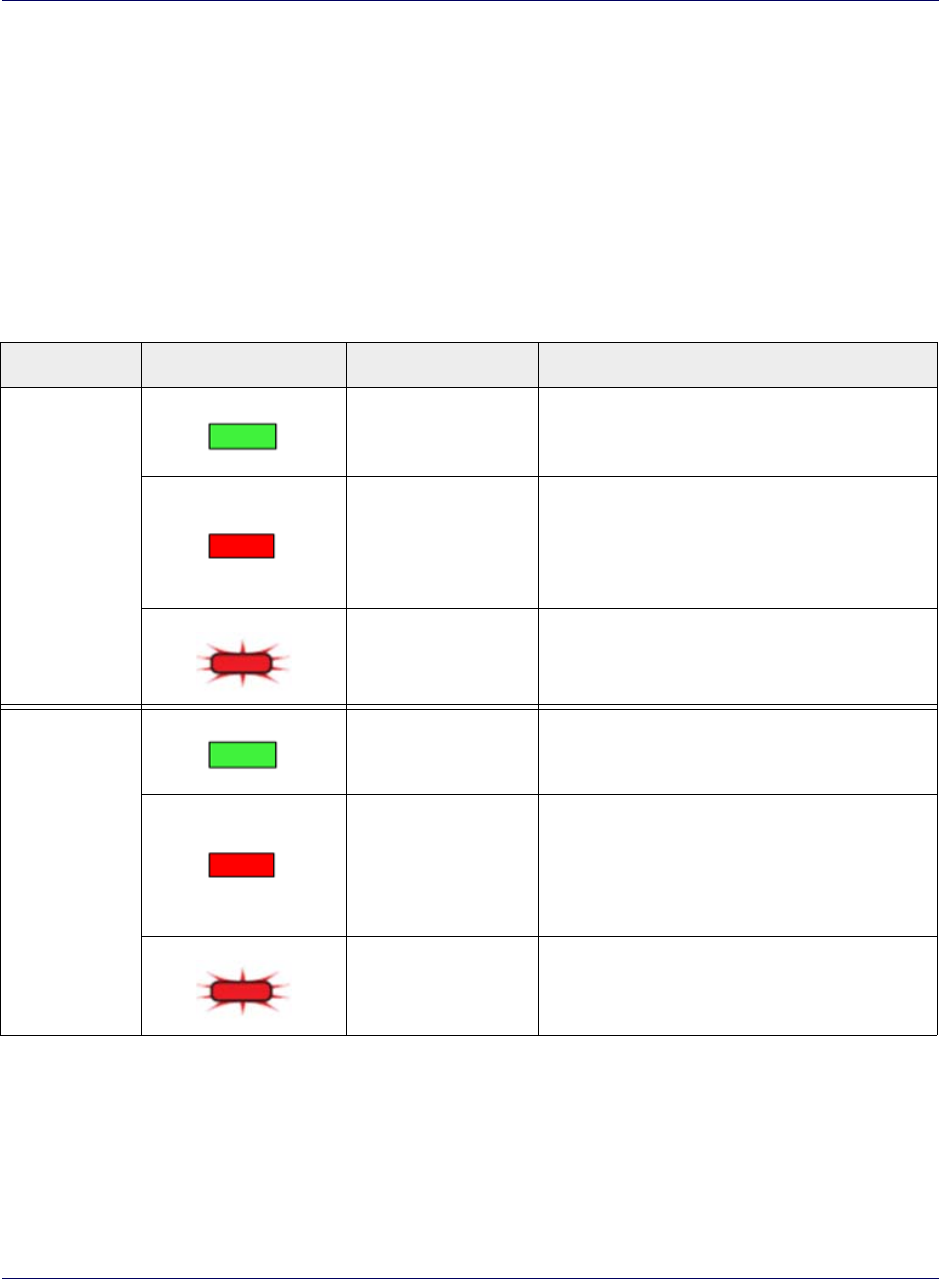

Table 5-2. 4G DATA LED usage and description
LED Display Pattern S1000 State Description
WAN
WAN port connected The WAN port is connected to a peer and has
obtained an IP address over the local network
WAN port not
connected
-or-
hardware error
The WAN port not connected to a peer, or has not
obtained an IP address (more than 15 minutes)
-or-
a hardware error occurred during startup
WAN port not
connected
The WAN port is not connected to a peer, or has not
obtained an IP address (15 minutes or less)
NET
IPSec tunnel is
established
The IPSec tunnel is established to the Operator’s
core network and is functioning properly
IPSec tunnel is either
down or re-establishing
-or-
hardware error
The IPSec tunnel to the Operator’s core network is
down, or has not established a connection (more
than 15 minutes)
-or-
a hardware error occurred during startup
IPSec tunnel is DOWN
or setting up
The IPSec tunnel to the Operator’s core network has
gone down or has not come up since boot-up. (15
minutes or less)
