RF and GPS cable locations
Airvana recommends installing the RF and GPS cables into the positions in the Rox System cabinet seal that
are shown in Figure 20
. This enables determination of which cable serves which function after the Rox
System cabinet seal has been installed even if cable labels are missing. This recommendation is for a three
sector node, with two RF antennas per sector, and in a redundant configuration requiring two GPS cables.
TIP
Cables should be labeled as to their function on both the internal side and the
external side of the Rox System cabinet seal.

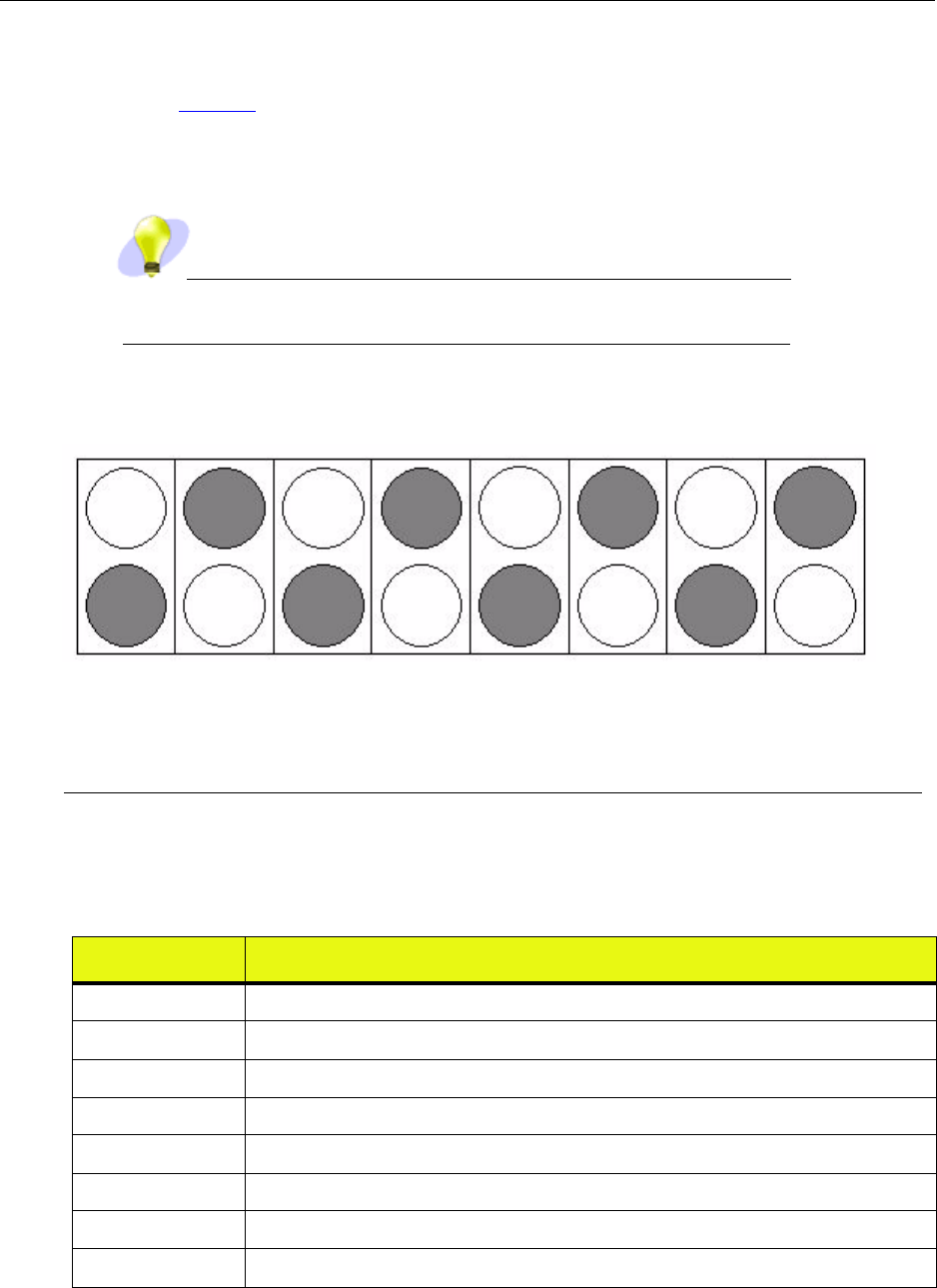

Figure 20 Recommended cable positions in Rox System viewed from the external side of the Rox
Table 19 Recommended cable positions in Rox System cabinet seal
Position Cable description
1 Redundant GPS cable
3 TX/RX0 cable for gamma sector
5 TX/RX0 cable for beta sector
7 TX/RX0 cable for alpha sector
10 RX1 cable for gamma sector
12 RX1 cable for beta sector
14 RX1 cable for alpha sector
16 Primary GPS cable
View from the outside of the cabinet
13 57
10 12 14 16
Key:
Position numbers refer to table below
Gray circles show unused cable positions
