2. First finger tighten the RF and GPS antenna cables to the correct surge suppressor connectors on the top
side of the surge protection bar inside the cabinet.
CAUTION
!
All antenna cables dangling inside the cabinet must be connected to the surge
suppressor connectors, even if they are not connected to antennas externally.
Failure to connect all cables could result in equipment damage and loss of EMI
protection.
3. Use the torque wrench set to 10 inch pounds with the 13/16 inch open ended wrench bit to tighten every
antenna cable connection on the surge suppression bar.
WARNING
Tightening the connectors to more than 15 inch pounds can damage the equipment.

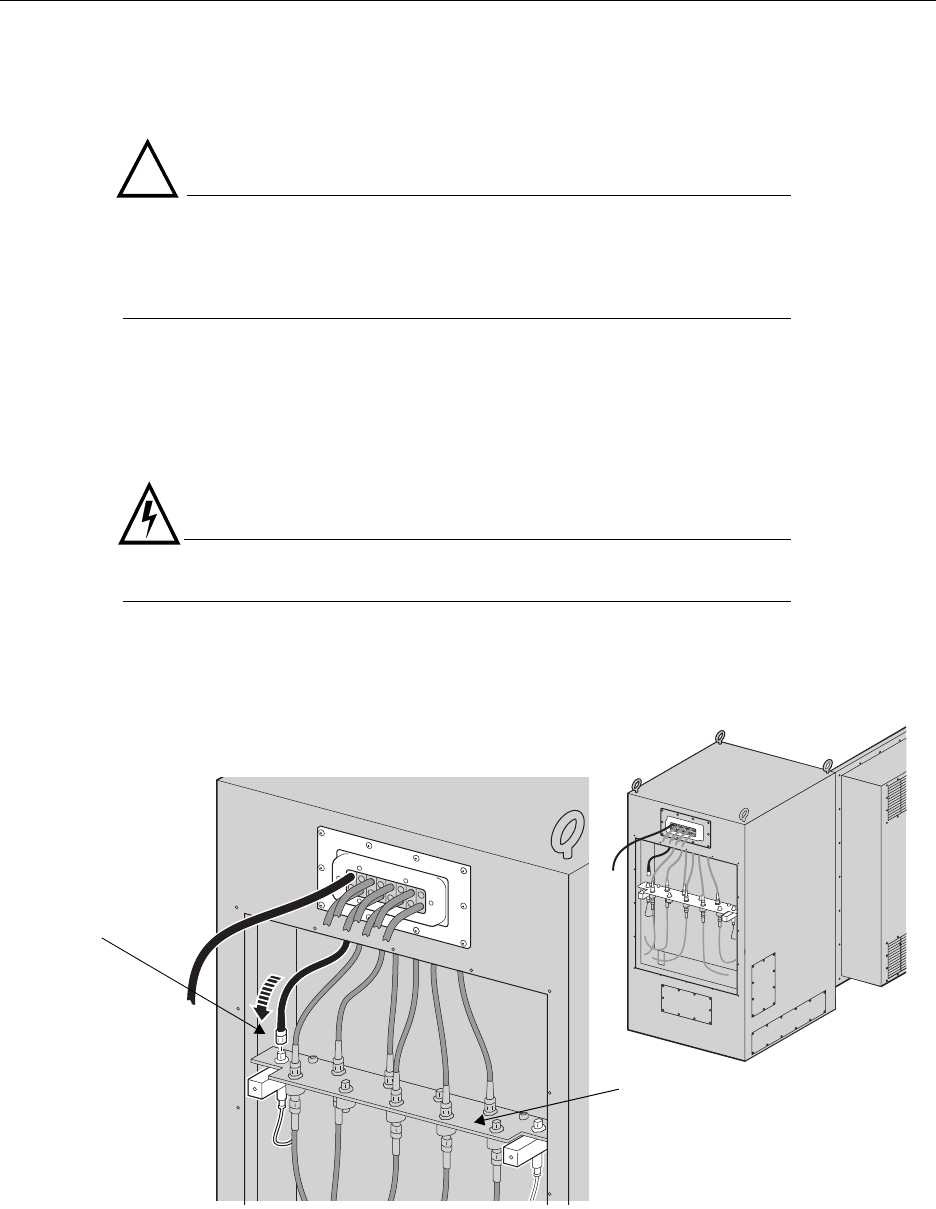

Rear view - Attaching antenna cables internally
Attach antenna
cables to top of
surge suppression
bar
Ensure the correct
cable is attached to
the right connector
Surge suppression bar
Ensure all cables are
attached
