2.3 Installation in Tower Configuration
Follow the numerical sequence to assemble tower stands and tower stand expanders, shown in Figure 2-3.

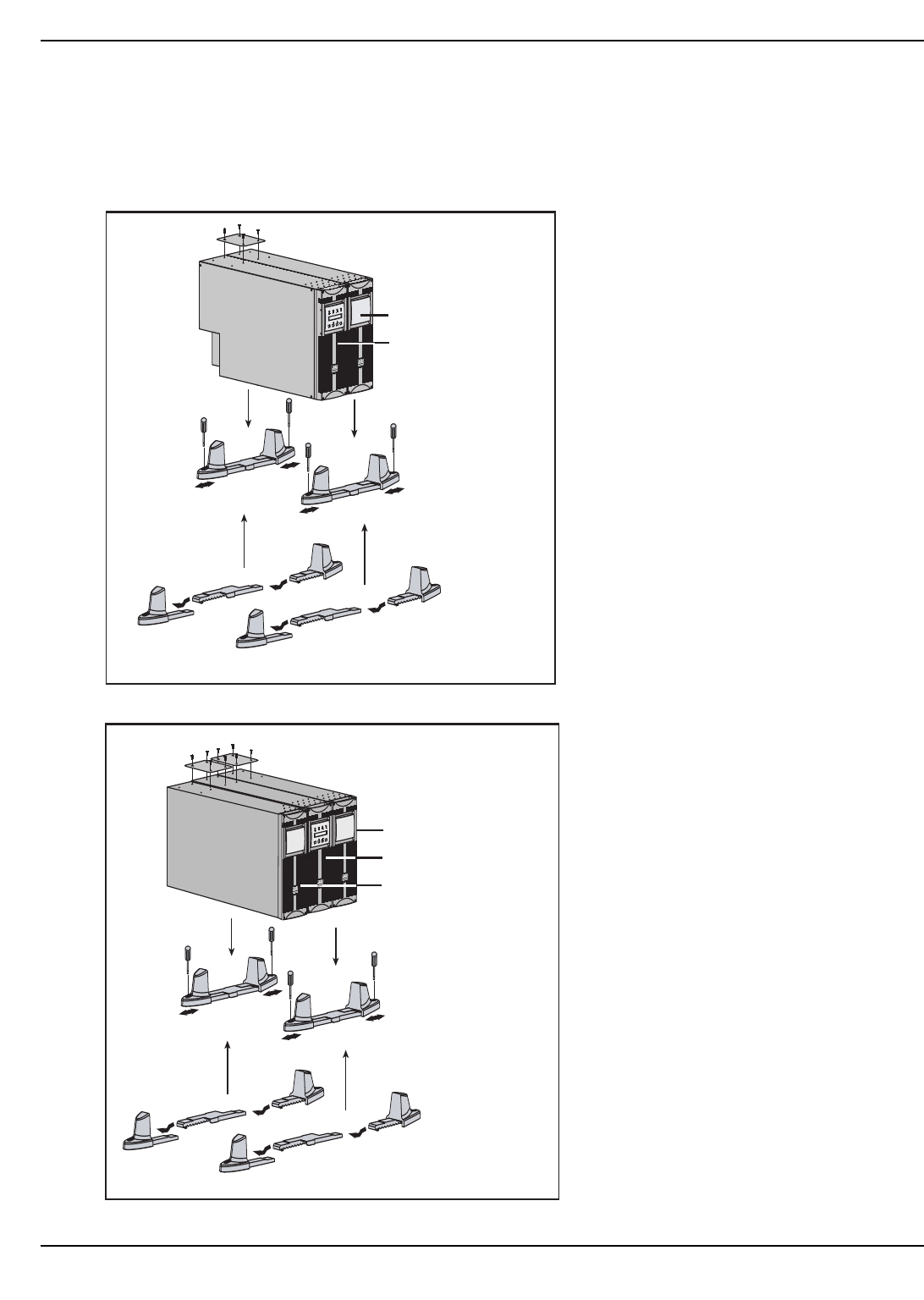

Figure 2-3: Tower Configuration of Standard System and Optional Transformer Module.
E
X
B
R
T
E
X
1
1
R
T
O
F
F
O
N
Tower Configuration with Optional Transformer Module
Tower Configuration with Standard System
Use the same procedure
for tower mounting multiple
battery modules, if applicable.
E
X
B
R
T
E
X
1
1
R
T
OF
F
O
N
Transformer Module
Battery Module
Power Module
Battery Module
1
1
2
2
4
4
4
4
3
3
5
1
1
2
2
4
4
4
4
3
3
5
Power Module
EX 5/7/11 RT Systems
Installation2 — 4 86-86000-00 B01
