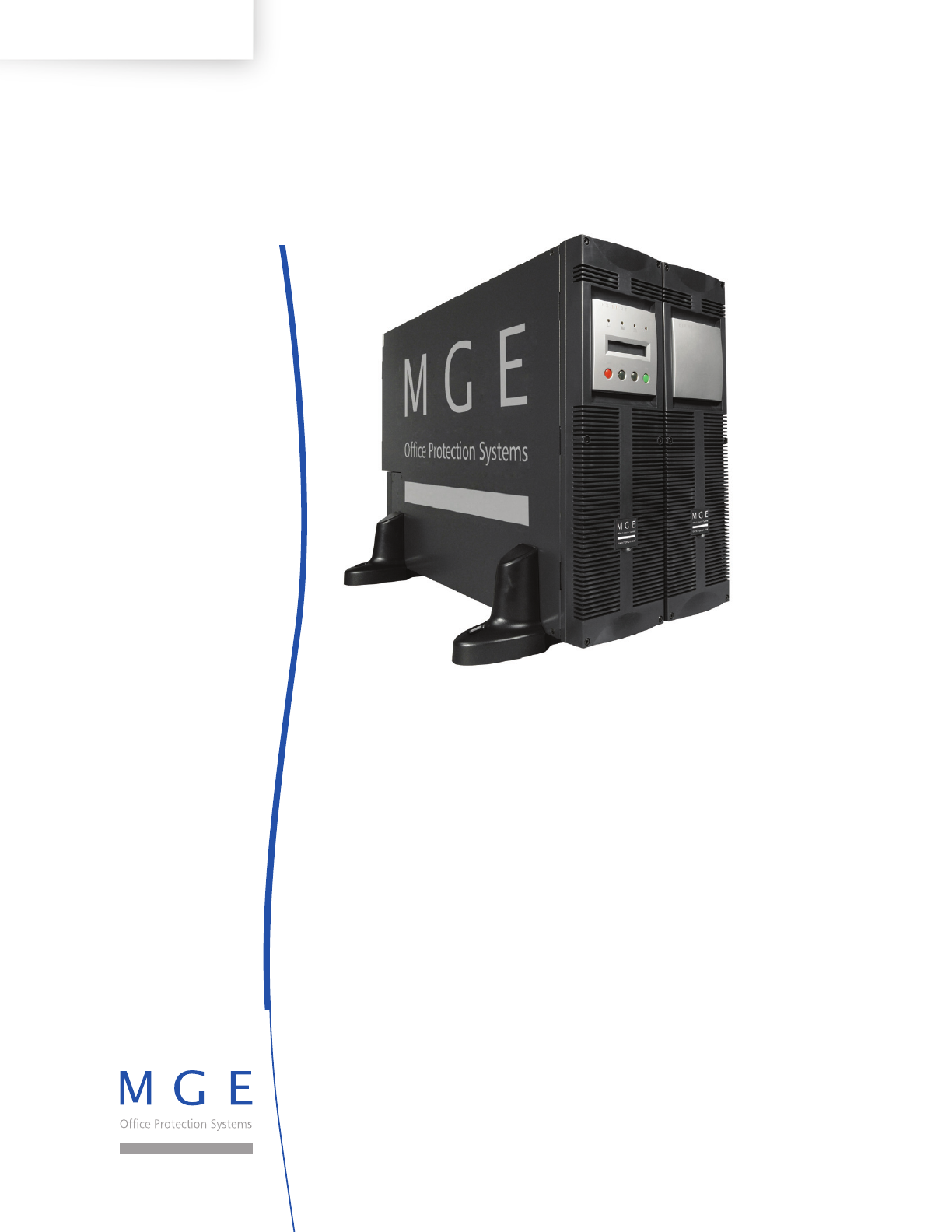

EX 5/7/11 RT Systems

Installation and User Manual

Summary of content (76 pages)

PAGE 1
w w w. m g e o p s .
PAGE 2
PAGE 3
Installation and User Manual EX 5/7/11 RT Systems Installation and User Manual Revision History E X 5 / 7 / 11 RT S y s t e m s I n s t a l l a t i o n a n d U s e r M a n u a l , 8 6 - 8 6 0 0 0 - 0 0 Revision: A01 ECN#: 003984 07/2004 A02 ECN#: 004086 11 / 2 0 0 4 A03 ECN#: 004284 05/2005 B00 ECN#: 004379 03/2006 B01 ECN#: 005020 10/2006 Copyright © 2007 MGE Office Protection Systems All rights reserved. Printed in U.S.A.
PAGE 4
EX 5/7/11 RT Systems (This page left blank intentionally) iv 86-86000-00 B01
PAGE 5
Contents section description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . .c vi Certification Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .c vi CAUTION: Safety of Persons . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PAGE 6
EX 5/7/11 RT Systems section Section 2 Setup and Installation 2.0 2.1 2.2 2.3 2.4 2.4.1 2.4.2 2.4.3 2.5 2.5.1 2.5.2 2.5.3 2.6 2.7 2.7.1 2.7.2 2.7.3 2.7.4 2.8 2.9 Section 3 Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 — 1 Unpacking and Parts Check . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 — 1 Contents of Standard EX 5/7/11 RT Systems . . . . . . . . . . . . . . .2 — 2 Installation in Tower Configuration . . . . . . . . . . . . . . . .
PAGE 7
Installation and User Manual section Section 4 Maintenance 4.0 4.1 4.2 4.3 4.4 4.4.1 4.4.2 Section 5 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 — 1 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 — 1 Hot Swapping the Power Module . . . . . . . . . . . . . . . . . . . . . . . . .
PAGE 8
EX 5/7/11 RT Systems Figures figure description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 1-1: Tower Configuration with Power Module, Battery Module, and Optional Transformer Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 — 4 1-2: Rack Configuration with Power Module, Battery Module, and Optional Transformer Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 — 5 1-3: Rear Panel of the Power Module. . . . .
PAGE 9
Installation and User Manual Figures (continued) figure description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 3-1: 3-2: 3-3: 3-4: 3-5: 3-6: 3-7: 4-1: 4-2: 4-3: 5-1: Initial Startup Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 — 1 Control Panel with Scroll Up and Down Buttons. . . . . . . . . . . . . . . . . . . .3 — 2 Configuration Used to Provide Cascade Redundancy to Critical Loads .
PAGE 10
EX 5/7/11 RT Systems IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. The EX 5/7/11 RT models that are covered in this manual are intended for installation in an environment within 0 to 40°C, free of conductive contaminant. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
PAGE 11
Installation and User Manual CAUTION: Safety of persons ◗ ◗ ◗ ◗ The system has its own power source (the battery). Consequently, the power outlets may be energized even if the systems is disconnected from the AC power source. Dangerous voltage levels are present within the system. It should be opened exclusively by qualified service personnel. The system must be properly grounded. The battery supplied with the system contains small amounts of toxic materials.
PAGE 12
EX 5/7/11 RT Systems CAUTION: Record All Serial Numbers! RECORD ALL SERIAL NUMBERS FOR EX 5/7/11 RT AND ACCESSORIES. THESE SERIAL NUMBERS WILL BE REQUIRED IF YOUR SYSTEM NEEDS SERVICE.
PAGE 13
Installation and User Manual Symbol Usage This manual uses the following icon symbols with text to convey important information and tips. WARNING Indicates information provided to protect the user and service personnel against safety hazards and/or possible equipment damage. CAUTION Indicates information provided to protect the user and service personnel against possible equipment damage. IMPORTANT Indicates information provided as an operating instruction, or as an operating tip.
PAGE 14
EX 5/7/11 RT Systems (This page left blank intentionally) cx 86-86000-00 B01
PAGE 15
Introduction Thank you for selecting an MGE Office Protection Systems product to protect your electrical equipment. The product you selected is a part of the EX RT series. The EX RT series is a family of Uninterruptible Power Supply (UPS) designed to provide safe, and reliable AC power back-up for sensitive electrical equipment. To discover the entire range of MGE Office Protection Systems products, we invite you to visit our website at www.mgeops.com. 1.
PAGE 16
EX 5/7/11 RT Systems Table 1-2: Optional Accessories (See Section 1.
PAGE 17
Installation and User Manual 1.1 System Electrical Characteristics Table 1-3: UPS Characteristics System Ratings. UPS Characteristics MAIN 1 (Normal AC Source) default Power Rating Input Voltage (VAC) 5 kVA 7 kVA 208 11 kVA Input Current (A) Min Max Online Bypass Input Breaker (A) 18 32 21.6 19 40 25 45 30.3 26.65 50 38 64 44 42 70 Output Voltage (VAC) Output Current (A) Inrush Current 19.25 208 23.5 200A/1ms 47.5 Table 1-4: Transformer Module Characteristics Ratings.
PAGE 18
EX 5/7/11 RT Systems Table 1-5: Battery Module Ratings. 1.2 Part Number 86207 86209 Battery Type 12VDC/7Ah 12VDC/9Ah Battery Output Voltage 240VDC 240VDC Standard Configuration The EX 5/7/11 RT systems can be set up in tower or rack configurations. 1.2.1 Tower Configuration Figure 1-1: Tower Configuration with Power Module, Battery Module, and optional Transformer Module.
PAGE 19
Installation and User Manual 1.2.2 Rack Configuration Figure 1-2: Rack Configuration with Power Module, Battery Module, and optional Transformer Module. Standard Configuration Configuration with Transformer POWER MODULE (EX 5/7/11 RT) sformer EX RT Tran EX 11 RT ON TRANSFORMER MODULE POWER MODULE (EX 5/7/11 RT) OFF EXB RT BATTERY MODULE (EXB 5/7/11 RT) BATTERY MODULE (EXB 5/7/11 RT) Table 1-6: System Dimensions and Weights. Model Dimensions (HxWxD) Weights EX 5/7RT Power Module (3U) 5.
PAGE 20
EX 5/7/11 RT Systems 1.3 Rear Panel Components 1.3.1 Power Module EX 5/7/11 RT Figure 1-3: Rear panel of the Power Module. 1 Slot for optional communication cards. 2 2 Dry (relay) contacts Communication Port. 3 3 Remote Emergency Power Off (REPO) function. 1 4 5 (See Section 2.6.) 6 9 10 Connector for automatic detection of Battery Module(s). 5 RS232 communication port. 6 Battery/CLA Module power connector. 7 Manual Bypass switch. 8 Normal AC source circuit breaker.
PAGE 21
Installation and User Manual 1.3.3 EX RT Transformer Module Figure 1-5: Rear Panel of the optional Transformer Module. (PN 86211/86311) Load 3: 1 NEMA L6-30R, 208Vac Load 2: 4 NEMA 5-15/20R, 120Vac Load 4: 4 NEMA 5-15/20R, 120Vac Load 3 Circuit Breaker Load 4 Circuit Breaker Load 2 Circuit Breaker Main Output Circuit Breaker AC Input Transformer I/O Box AC Output Load 1 Circuit Breaker Load 1: 1 NEMA L6-30R, 208Vac Transformer Protect Breaker 1.
PAGE 22
EX 5/7/11 RT Systems 1.5 Optional Accessories Optional Accessories describes the options available for upgrades and enhancement of the EX 5/7/11 RT systems. Detailed installation of the unit is described in following sections. To ensure a successful installation, all procedures should be followed in their correct sequence. Note that any unauthorized installation may cause damage to the UPS(s) and void the MGE Office Protection Systems warranty. 1.5.
PAGE 23
EX 5/7/11 RT Systems 1.5.3 Installation and User Manual Multiple Battery Module Back-up Time at Full Load Standard EX 5/7/11 RT systems (one Power Module and one Battery Module), offers a standard back-up time of 5 to 12 minutes at full load. To increase back-up time, it is possible to connect up to 5 additional Battery Modules to the standard system. See Section 2.
PAGE 24
EX 5/7/11 RT Systems 1.5.5 Battery Integration Kit with Casters (Part number 86005) Battery Integration Kit is a cart, designed to hold up to 8 modules. It has swivel wheels with brakes, leveling feet, seismic floor mount panels, plates to lock modules and hardware included. Modules not included. Figure 1-10: Typical Battery Integration kit with casters setup. TRANSFORMER MODULE (optional) POWER MODULE BATTERY MODULES (up to 6) (Modules Not Included In Kit) 1.5.
PAGE 25
EX 5/7/11 RT Systems 1.5.7 Installation and User Manual Transformer Module - For use with EX 5/7/11 RT Power Module This module provides isolated 120/208/240VAC outputs. Figure 1-11: Typical Transformer Module Contents and Connections. EX RT Transformer Module Box Contents EX RT Transformer Warranty and Quick Start Manual Product Registration Tower Stand Extenders w w w. m g e o p s .
PAGE 26
EX 5/7/11 RT Systems 1.5.8 CLA Charger Module Extended back-up time (up to 8 hours at full load) requires a high power battery cabinet connected to the EX 5/7/11 RT via the CLA Module. IMPORTANT The CLA can not be used to charge the Battery Module (EXB). It is designed to charge the customer provided high power battery cabinet. Figure 1-12: CLA Module Contents and Connections. CLA Module Contents CLA Rail Kit Tower Stand Expanders CLA Module Quick Start Battery Power Cable 41 w w w. m g e o p s .
PAGE 27
Setup and Installation 2.0 Scope Setup and Installation guides the user through tools and equipment required for connecting the EX 5/7/11 RT, and battery installation or replacement. Included are assembly instructions, power cable connections with wire diagrams for configuring the product to hardware specifications. 2.
PAGE 28
EX 5/7/11 RT Systems 2.2 Contents of Standard EX 5/7/11 RT Systems Contents of EX 5/7/11 RT Power Module: (PN 86215 / 86216 / 86217) 30 EX 5/7/11 RT Power Module. 31 Two sets of tower stands. 32 RS232 communication cable. 33 Product documentation. 34 Input/Output Box. (PN 86009 for EX 5/7RT; 86010 for EX 11RT) 35 Solution-Pac 2 CD. 36 Power Module Rail Kit, PN 86001. IMPORTANT Packaging must be destroyed according to waste management standards.
PAGE 29
Installation and User Manual Contents of EXB 5/7/11RT Battery Module: (PN 86207 /86209) 29 Stabilizer Bracket and hardware. 38 EXB 5/7/11RT. 39 Tower stand expanders. 40 Battery Power cable. 41 Battery/EX RT Transformer/CLA Module rail kit, PN 86002. 42 Battery detection cable. 43 EXB Documentation. 44 Bezel hex drive. Figure 2-2: Contents of EXB 5/7/11RT Battery Module. 38 39 EXB 40 42 RT 29 41 43 44 (not to scale) - EXB 5RT Battery Module Part number: 86207.
PAGE 30
EX 5/7/11 RT Systems 2.3 Installation in Tower Configuration Follow the numerical sequence to assemble tower stands and tower stand expanders, shown in Figure 2-3. Figure 2-3: Tower Configuration of Standard System and Optional Transformer Module.
PAGE 31
Installation and User Manual 2.4 Installation in Rack Mounting Configuration 2.4.1 Adjustment of Front Panel Logo and Control Panel for Rack Orientation. NOTE If system includes the Transformer Module, we recommend to mount the Battery Module on the bottom, then mount the Power Module above the Battery Module and mount the Transformer Module on top for optimum stability. To prepare the front panel logo and LCD display for rack orientation, of all modules.
PAGE 32
EX 5/7/11 RT Systems 2.4.2 Prepare Battery Module for Rack Mounting IMPORTANT This step requires two people. The Battery Module is very heavy (151 lbs.). To ease its rack mounting, you can remove the battery pack from the Battery Module, as explained below. Proceed as follows: 1. Unscrew the six screws securing front panel using Bezel hex driver 44 . 2. Unscrew the brackets securing the battery connectors. 3. Disconnect Battery plugs. 4. Unscrew the brackets securing the battery pack.
PAGE 33
Installation and User Manual 2.4.3 Power, Battery, Transformer, and CLA Charger Module Rack Mounting The following steps apply to all modules. For simplicity, only Power Module is shown. Proceed as follows: 1. Attach both front mounting ear brackets 24 to module with supplied screws. (For this step, it is possible to adjust the position of both front mounting brackets.) 2. Attach rear support brackets 25 to module. These brackets prevent the module from sliding out of the rack. 3.
PAGE 34
EX 5/7/11 RT Systems NOTE: This step is unique to the Power Module. It involves the installation of the I/O Box Bracket System. The I/O Box bracket system keeps the I/O Box stationary while hot swapping the Power Module. It will then be easier to slide the replacement module into the connectors of the I/O Box. 1&2. Secure small brackets to larger bracket from the underside 27 . 3. Secure small attached brackets to the I/O Box with four screws. 4.
PAGE 35
Installation and User Manual 2.5 Communication Ports EX 5/7/11 RT Power Module provides 3 communication method's that can be used simultaneously: ◗ A female DB9 Transfer (SHUT) 5 provides RS232 communications using MGE Office Protection Systems Serial HID UPS protocol. This COM Port is compatible with Solution Pac 2 to perform graceful shutdown. ◗ The Dry Contact Port 2 is used for basic signaling or for protection of IT systems like IBM iSeries (formerly AS400) and more.
PAGE 36
EX 5/7/11 RT Systems 2.5.2 Connecting the Dry (Relay) Contact Communication Port 2 The system status is indicated by the connection of common pin (Pin 5) to the appropriate pins. Refer to the pin explanations below for details. Figure 2-9: Relay Pin Connections for Communication Port. Pin 1, 2: not used. 5 4 9 NC NO 3 8 NO 2 7 1 6 NO NO common Pin 3: Remote Power Off signal (5 to 27 VDC, 10 mA max). Pin 4: Operation on mains (not on battery). (48VDC, 2A max.) Pin 5: User common.
PAGE 37
Installation and User Manual A wide range of optional cards will allow your UPS to talk to nearly all equipment management systems, making integration faster and easier. All these cards can plug directly into the UPS, saving time and money on your next UPS project. (Meta UPS Card and U-Talk/Basic Acquisition Cards are used exclusively with Multi-slot.) Dual U-Talk/Basic Card (PN: 66060) CAN NOT BE USED WITH THIS UPS.
PAGE 38
EX 5/7/11 RT Systems 2.6 Remote Emergency Power Off (REPO) Communication Port 3 The end user is responsible for the installation of a Remote Emergency Power Off function. Installation must be carried out in compliance with local code regulations. To shutdown the entire system completely in case of emergency: ◗ Disconnect the AC input to the Power Module by opening up the upstream circuit breaker connecting the utility power to the Power Module.
PAGE 39
Installation and User Manual 2.7 System Connections WARNING This type of connections must be carried out by qualified electrical personnel. Before carrying out any connections, check that battery circuit breaker 14 is OFF and that the upstream protection devices (Normal and Bypass AC sources) are open (OFF/OPEN). 2.7.1 Connections with Common Normal and Bypass AC Sources (Single Mains) Figure 2-11: Power Module I/O Box Terminal Block Diagram.
PAGE 40
EX 5/7/11 RT Systems Proceed as follows: 1. For normal AC input, make connections to L1, L2, and terminals only. No connections are required for Bypass AC input. Make connections to , L5, L6 terminals for output. CAUTION: Always connect the earth ground wire first. Jumper must be between L1 and L3. System is factory configured for 208VAC output. 2. Attach I/O Box to the Power Module with three screws. Figure 2-12: Normal AC Input and Output Cables Installation.
PAGE 41
Installation and User Manual 2.7.2 Connecting EX RT Transformer Module Part number 86211/86311 This module is to provide isolated 120/208/240 VAC outputs to the protected loads. Figure 2-13: View of EX RT Transformer Module connected downstream for 120/208/240 Vac outputs (shown with one EXB).
PAGE 42
EX 5/7/11 RT Systems 2.7.3 Connections with Separate Normal and Bypass AC Sources (2 Mains) CAUTION: This connection requires isolation Transformer Module. Please visit our web site www.mgeops.com or call (800) 279-7776. Figure 2-14: Normal AC and Bypass AC inputs, Output Cables Installation, and Simplified Connection Diagram. Proceed as follows: 1 OFF O L1 L3 1. Remove the cover plate under the I/O Box. Loosen the terminal blocks L1 and L3, and remove the jumper.
PAGE 43
Installation and User Manual 2.7.4 System Connections as Frequency Converter (without Bypass AC source) Figure 2-15: Accessing Terminal Blocks for Input and Output Power Cables. CAUTION: 1. Always connect the earth ground wire first. Remove the cover plate under the I/O Box. OFF O Remove the jumper connecting L3 and L1. CAUTION: 1 Removing the jumper will disable the Bypass AC source. Do not connect anything to the Bypass AC terminal block. 2. Refer to Section 2.7.
PAGE 44
EX 5/7/11 RT Systems 2.8 Connection of Battery Module EXB 1. Check that the battery circuit breaker (5) 14 is OFF (“0”) position. 2. Connect the battery power cable 40 to the connectors 3. Connect the battery detection cable 42 between connectors Modules. 6 and 13 of the Power and Battery Modules. 4 and 12 of the Power and Battery Figure 2-16: Rear view of Battery Module cable connections.
PAGE 45
Installation and User Manual 2.9 Connection of Optional CLA Module 1. Connect the battery power cable 40 and battery detection cable 42 (provided with the CLA Module) between the Power Module and the CLA Module. 2. Connect the DC Input of the CLA Module to high power battery cabinet. 3. Connect the utility AC input to terminal blocks L1 and L2 of the CLA. ◗ DC Input Cable cross-section (not provided): maximum 4 AWG solid or stranded wire.
PAGE 46
EX 5/7/11 RT Systems (This page left blank intentionally) 2 — 20 86-86000-00 B01
PAGE 47
Operation 3.0 Scope Operation describes EX 5/7/11 RT systems characteristics of indicators and controls, modes and specifications and theory of operating the EX 5/7/11 RT. The user procedures include performing software programming that will maintain smooth performance. Refer to Figure 1.6 for descriptions of circled numbers. 3.1 Initial Startup NOTE Both AC and DC sources must be present for normal startup of EX 5/7/11 RT systems.
PAGE 48
EX 5/7/11 RT Systems 3.2 UPS Personalization WARNING Before changing items from Tables, 3-1, 3-2, 3-3, and 3-4, the UPS system must be turned OFF. IMPORTANT If specific settings are required, it is recommended to enter the UPS personalization mode at this stage. It is possible to enter this mode through the front panel buttons or the Solution-Pac 2 software for Windows included in the MGE Office Protection Systems Solution-Pac 2 CD-ROM. 3.2.
PAGE 49
Installation and User Manual Table 3-1: Local Settings. Display Factory setting Options Language English French, Spanish, German, Italian Date/time format International US Date/time change (DD-MM-YYYY/HH:MM) MM-DD-YYYY/HH:MM adjustable Audible alarm Quick beeps Slow beeps Table 3-2: Output Features.
PAGE 50
EX 5/7/11 RT Systems Table 3-3: ON/OFF Features. Display Factory setting Options Comments Cold start Disabled Enabled Start on battery. Forced reboot Enabled Disabled UPS restarts automatically when normal AC source is restored. Automatic restart Enabled Disabled UPS restarts automatically when normal AC source is restored.
PAGE 51
Installation and User Manual 3.3 Information Technology IT Network and Industrial Operating Modes Table 3-5: System Operation in IT Netowrk and Industrial Modes. Symptoms IT Network mode Industrial mode Overload, and Bypass source in tolerance. Load is transferred to Bypass AC source. UPS returns to normal mode if overload is removed. Same as IT Network mode, but AC to the UPS does not return to normal mode if overload is removed. Overload, and Bypass AC source not in tolerance.
PAGE 52
EX 5/7/11 RT Systems 3.3.1 UPS personalization through external software Insert the Solution-Pac 2 CD ROM in your CD drive. ◗ At the first Navigator Screen, select "Installation" and follow the instructions to install Solution-Pac 2 for Windows. ◗ If nothing appears, launch startup.exe ◗ Then go to "Advanced settings" and "UPS settings". Please note that the Linux/Unix/MacOS versions of Personal Solution-Pac do not include this feature. 3.3.
PAGE 53
Installation and User Manual 3.4 Operating Modes 3.4.1 Normal (Double Conversion) Mode Figure 3-4: Normal (Double Conversion) Mode. 15 This is the standard operating mode, set by the factory. Two possible cases. 1. LOAD LEVEL 4kW / 5 kVA OFF 15 15 LED is ON. The load is protected by the UPS.
PAGE 54
EX 5/7/11 RT Systems 3.4.2 ECO Mode Figure 3-5: ECO Mode Display. 15 The main advantage of the ECO mode is that it reduces the consumption of electrical power by not running in the online mode. When this mode is selected, the system works as an offline UPS system, powered by Bypass source if Bypass source is inside user’s defined range. Outside this range, the UPS system will switch to online mode with 10ms interrupt. 17 OFF Three possible cases: ON 1.
PAGE 55
Installation and User Manual 3.5 Operation on Battery Power Figure 3-6: Transfer, Threshold and End of back-up time. 15 3.5.1 16 Transfer to Battery Power The load continues to be protected by the UPS when the Normal AC source is not available. Power is supplied by the battery. There are three possible cases: REMAINING TIME 10 minutes First Case: Operation on battery 15 LED is ON. 16 LED is ON. ON OFF The audio alarm beeps every 10 seconds.
PAGE 56
EX 5/7/11 RT Systems 3.6 Return of Normal AC source After an outage, the UPS restarts automatically when AC power is restored (unless this function has been disabled via UPS personalization). 3.7 Shutdown Figure 3-7: Shutdown Display, Circuit Breaker, and AC Source Switch. 1. 17 Press the OFF button 20 more than 3 seconds. CAUTION: The load is no longer protected by the UPS. It is powered via the Bypass AC source. If the UPS is set in frequency converter mode, the load will not be powered.
PAGE 57
Maintenance 4.0 Scope Maintenance includes a troubleshooting guide of symptoms and possible solutions, hot swapping the Power Module and Battery Module, and testing scenarios. 4.1 Troubleshooting ◗ If any of LEDs 17 or 18 is on, there is an operating anomaly or an alarm. ◗ Use "scroll up" or "scroll down" function button to reset the audible alarm. Table 4-1: Troubleshooting Not Requiring MGE Office Protection Systems After-Sales Support.
PAGE 58
EX 5/7/11 RT Systems Table 4-2: Troubleshooting Requiring MGE Office Protection Systems After-Sales Support. Symptoms Indication Correction LED 17 and 18 are on, Bypass AC Source is present and audible alarm is on. the LCD display shows: xxx FAULT Internal fault and transfer of load on Bypass AC source Please visit www.mgeops.com or call (800) 279-7776 for technical support LED 17 is on, and audible alarm is on, the LCD display shows BATTERY FAULT Battery fault during the battery test.
PAGE 59
Installation and User Manual 4.2 Hot Swapping the Power Module This operation can be performed without interrupting the load. Figure 4-1: Disconnecting the Power Module. 17 1. Check if UPS is on Bypass AC source by verifying that: XXX FAULT 1CXXXXXXX OFF LED 17 is ON (If LED 17 is not ON, do not turn the manual bypass and visit www.mgeops.com or call (800) 279-7776. ON 20 Card 5E 8FF85 IP= 00E0D MAC= 10 100 Settin 2 RS23 6607 7 2. Turn the manual bypass switch BYPASS position. 3.
PAGE 60
EX 5/7/11 RT Systems 4.3 Re-Connecting the Power Module This operation can be performed without interrupting the load. Figure 4-2: Reconnect the Power Module. 15 17 1. Secure the Input/Output box using the three screws. 2. Reconnect the cables 40 and 42 to the Power Module. LOAD LEVEL 4 kW/ 5 kVA OFF ON 3. Switch the battery circuit breaker(s) 14 to the ON position. 4. Check if Normal AC source circuit breaker 8 is on the ON position. 23 5. Check that the LED 17 is ON. 6.
PAGE 61
Installation and User Manual 4.4 Hot Swapping the Battery Module During the replacement of the Battery Module, it is imperative to use the same type and number of element as the original Battery Module provided with the UPS to maintain an identical level of performance and safety. In case of doubt, please refer to our web site at www.mgeops.com or call (800) 279-7776. Figure 4-3: Rear View of the Battery Module. 4.4.1 Battery Module 42 Power Module 40 Disconnecting the Battery Module 1.
PAGE 62
EX 5/7/11 RT Systems (This page left blank intentionally) 4—6 86-86000-00 B01
PAGE 63
Appendix 5.0 Electrical Specifications Electrical and Mechanical specifications for the EX 5/7/11 RT. 5.1 System Input/Output Power Ratings Table 5-1: EX 5/7/11 RT Voltages and Frequency Characteristics.
PAGE 64
EX 5/7/11 RT Systems 5.3 System Back-Up Characteristics Table 5-2: Back-Up Time (In Minutes).
PAGE 65
Installation and User Manual Table 5-3: Battery Recharge Time to Recover 90% of the Rated Back-Up Time After Discharge at Full Load. Configuration for 2 hours back-up time Configuration for 4 hours back-up time Configuration for 8 hours back-up time 7 hours 15 hours 24 hours EX 7RT 5 hours 12 hours 20 hours EX 11RT 7 hours 15 hours 24 hours EX 5RT Table 5-4: Efficiency On-line (RL Load) and Batteries Fully Charged.
PAGE 66
EX 5/7/11 RT Systems Table 5-7: Efficiency on ECO Mode (All Kinds of Load) and Batteries Fully Charged. kVA / kW 25% 50% 75% 100% Output load percentage 5kVA / 4kWatts 96 97 96 97 Output: 220 / 230 / 240 Volts 95 96 96 96 Output: 200 / 208 / 250 Volts 7kVA / 4.9kWatts 96 95 97 96 96 96 97 96 Output: 220 / 230 / 240 Volts Output: 200 / 208 / 250 Volts 11kVA / 8kWatts 96 95 97 96 96 96 97 96 Output: 220 / 230 / 240 Volts Output: 200 / 208 / 250 Volts 5.
PAGE 67
Installation and User Manual MGE Office Protection Systems Customer Care Center Technical Support and Product Services ? Technical questions? If you encounter a problem while following the instructions in this manual, or have questions about the operation, repair, or servicing of your equipment, please visit our web site www.mgeops.com for complete service information.
PAGE 68
PAGE 69
Glossary Term used Definition/Meaning @ At. / And/or. +/- Plus or Minus. ≤ Equal to or less than. # Number. °C Degree Celsius. °F Degree Fahrenheit. Ø Phase angle. Ω Ohm; unit of resistance. ® Trade Mark. 2nd Second. AC or ac Alternating current, also implies root-mean-square (rms). Ambient Temp. Temperature of surrounding air. Ambient noise Acoustical noise of surrounding environment. ANSI American National Standard Institute. AWG American Wire Gauge.
PAGE 70
EX 5/7/11 RT Systems G—2 dBrnC Decibel above reference noise. DC or dc Direct current, or voltage. Earth ground A ground circuit that has contact with the earth. Electrician Refers to an installation electrician qualified to install heavy-duty electrical components in accordance with local codes and regulations. Not necessarily qualified to maintain or repair electrical or electronic equipment. FET Field effect transistor. Freq. Frequency.
PAGE 71
Installation and User Manual OSHA Occupational Safety and Health Agency. PCA Printed circuit assembly. PCB Printed circuit board. PN Part number. PWM Pulse Width Modulation. RCD Load Load consists of resistor, capacitor and diode. A computer with switched mode power supply is considered a RCD load. RL Load Load consists of resistor, and inductor. A fan or a drill is considered a RL load. SCR Silicon controlled rectifier. Shipping damage Any damage done to an article while it is in transit.
PAGE 72
EX 5/7/11 RT Systems (This page left blank intentionally) G—4 86-86000-00 B01
PAGE 73
Reorder Form 113 Whatney, Suite #101 Irvine, CA 92618 Use this form NAME to report any errors, omissions, or other problems you have experienced, or to order additional hardcopies of this document. A free copy of this document may be downloaded from the proprietary MGE Office Protection Systems Rep Web site. Please contact your MGE Office Protection Systems Representative for assistance.
PAGE 74
PAGE 75
PAGE 76
w w w. m g e o p s . c o m Contact MGE Office Protection Systems United States MGE Office Protection Systems 13 Whatney, Suite #101 Irvine, CA 92618 (949) 268-2800 www.mgeops.com 1 3 W h a t n e y, S u i t e # 1 0 1 , I r v i n e , C a l i f o r n i a 9 2 6 1 8 • w w w. m g e o p s .
