Connecting the External Paging Interface At A Line Port
You can program a line port to be an AUXILIARY port
and connect it to an external paging amplifier. Refer
to Chapter 4 for programming details. Station access
to this wide-area paging is via the line button for the
AUXILIARY line.
l Connect the audio input of an external paging
amplifier to the tip and ring leads of the AUXILIARY
(line) port.
You can employ a DTMF tone select, zone-paging
amplifier if you wish.
If used, the user must dial the
zone-select code after he or she has pressed the
AUXILIARY line select button.
C”“lrHtn I LAL)IlvC I
I1024 SHOWN)
( LINE TERMINATION
t
,. TTl’E 6SY-Xx CONX;C’” ,
I
I
-OR-
I
i. ~NIXVKAJAL 6-POSITION 1
I
YOOULAR JACKS
L ___-a -----,-d

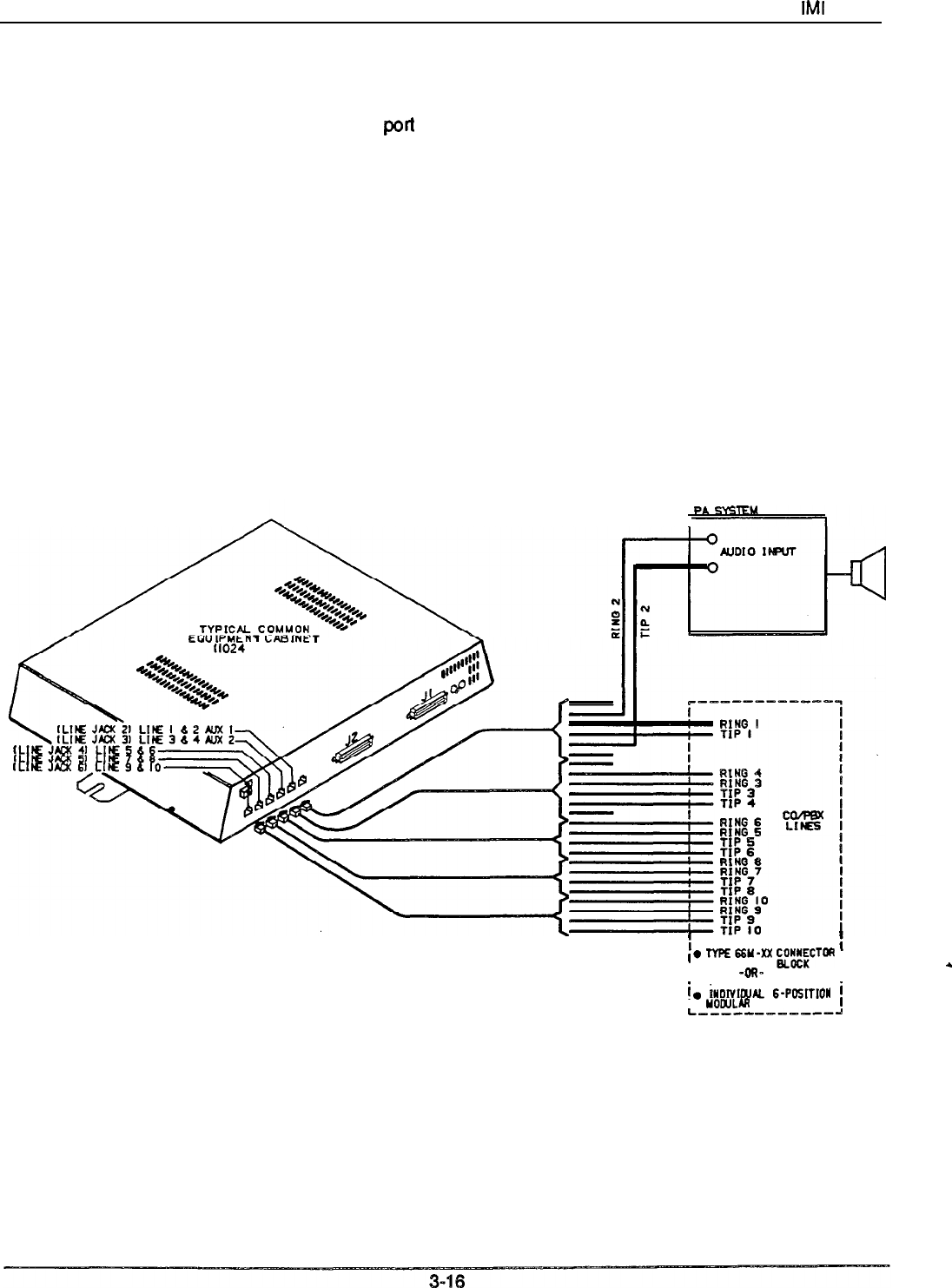

Figure 3-9. Connecting The External Paging Interface At A Line Port
.
