Specifications

IMI 66-097
Installation
Connecting The External Paging Interface At A Station PA Port
You can program any station port as a PA port and
use it to couple a station voice path to an external
paging amplifier. Refer to Chapter 4 for programming
details.
l Connect the audio input of an external paging
amplifier to the audio pair of the station port at the
J-1 or J-2 connector blocks.
l Isolate the audio input connection with a 600 ohm to
600 ohm audio matching transformer. Terminate
the audio input of the paging amplifier with a 600
ohm (nominal value) resistor.
l If you program station port 15 as a PA port, the
system automatically reconfigures the Common
b
Audible contact points on J-2 as PA enable
terminals. The contact closure now occurs when
PA station 15 is dialed. The system disables the
normal common audible function as long as station
15 is a PA station.
If you program station port 17 as a PA port, the
system automatically reconfigures the Auxiliary
Station Interface (station 17 audible) as PA enable
terminals. The contact closure now occurs when
PA station 17 is dialed. The system disables the
normal auxiliary station interface function as long as
stat-on 17 is a PA station.
30 --+-
31-d--
32--l--
33-+-
41 --l--
42-+--
45 -+--
s-z=-
- -
48-+-
it-z=-
- -
aw TERMINALS
AUDIO
PA SYSTEM
STA.PORT 17
TRANSFORMER
VOICE PAIR
ENABLE INPUT
90
600 n
TO STATION 17 AUDIBLE
TERMINALS IF ENABLE IS
REQUIRED.
a:-=-
:;===
so-+=
aw TERYINALS
I
JI CONNECTOR BLOCK

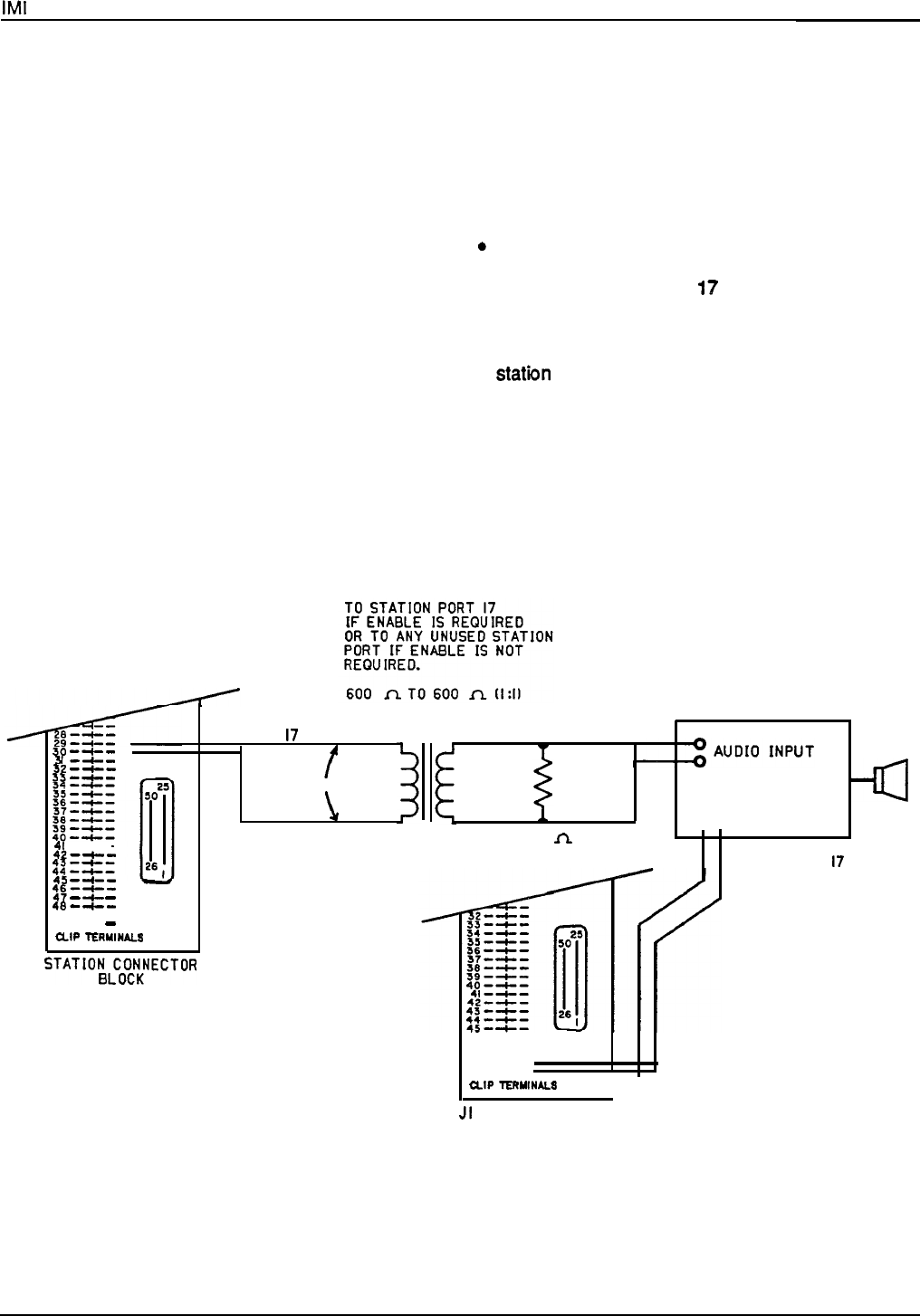

Figure 3-8. Connecting the External Paglng Interface At A Station PA Port
3-15
