Maintenance Instructions

10044S
Colt Canada Proprietary 3-2-52 2005-09-20
c. Replace non-serviceable magazines.
REASSEMBLY
83. To reassemble the plastic magazine proceed as follows:
a. Assemble the spring to the follower;
b. Insert the follower and spring into the magazine body;
c. Position baseplate on spring and compress the spring into the magazine body;
d. Hook the baseplate into the slot at the rear of the body; and
e. Rotate the front of the baseplate up to engage the body of the magazine.
SIGHTS
IRON SIGHT
84. Disassembly. Disassemble the
Detachable Iron Sight assembly as follows:
NOTE
The DIS, Back-up and Iron Sight all share
the same aperature and mechanism. The
disassembly procedure is similar for all
sights.
a. Carefully drive out the windage drum
pin with a suitable punch. See
Figure 3-2-65;
b. Maintain control of the windage drum
and remove the punch;
c. Remove the windage drum, the rear
sight detent and rear sight detent
spring. See Figure 3-2-66;
d. Using the flat tip screwdriver, unscrew
the rear sight windage screw to release
the rear sight and spring; and
e. Remove the rear sight windage screw
(1), rear sight (2) and rear sight spring
(3). See Figure 3-2-67.

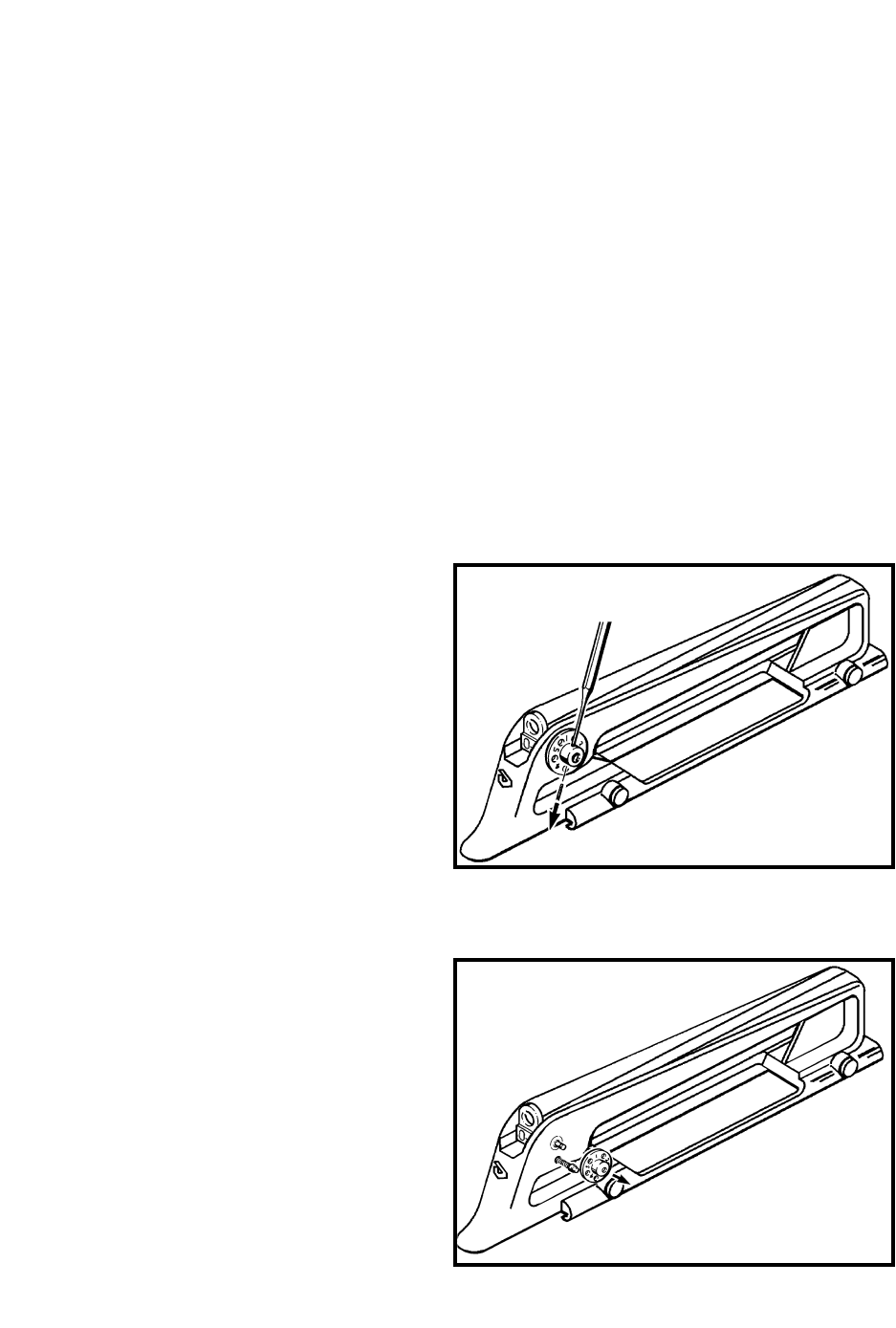

Figure 3-2-66 Removing the Windage Drum
Figure 3-2-65 Removing the Windage Drum
Pin
