Maintenance Instructions

10044S

Colt Canada Proprietary 3-2-38 2005-09-20

e. Rotate the tool and punch 90 degrees.

f. Hold the pivot pin, with the groove outward, firmly against the end of the assembly tool;

g. Push the pivot pin into the right receiver lug; and

h. Rotate the pin 180 degrees and allow the detent to take up its position in the groove of

the pivot pin. See Figure 3-2-51B;

RECEIVER EXTENSION - SOLID BUTTSTOCK

58. Removal. To remove the receiver extension from the lower receiver, proceed as follows:

When clamping the lower receiver in a vise, ensure that the vise is closed over a solid

portion of the receiver body. Tighten the vise only sufficiently to provide a firm grip on the

receiver.

a. Carefully clamp the lower receiver in a vise equipped with protected jaws;

b. Using the combination wrench and a 1/2 inch drive ratchet, unscrew the receiver

extension in a counter-clockwise direction. See Figure 3-2-52; and

NOTE

Unscrewing the receiver extension will release the buffer assembly retainer and spring.

Cover the receiver, to prevent the loss of these parts, as the extension is disassembled.

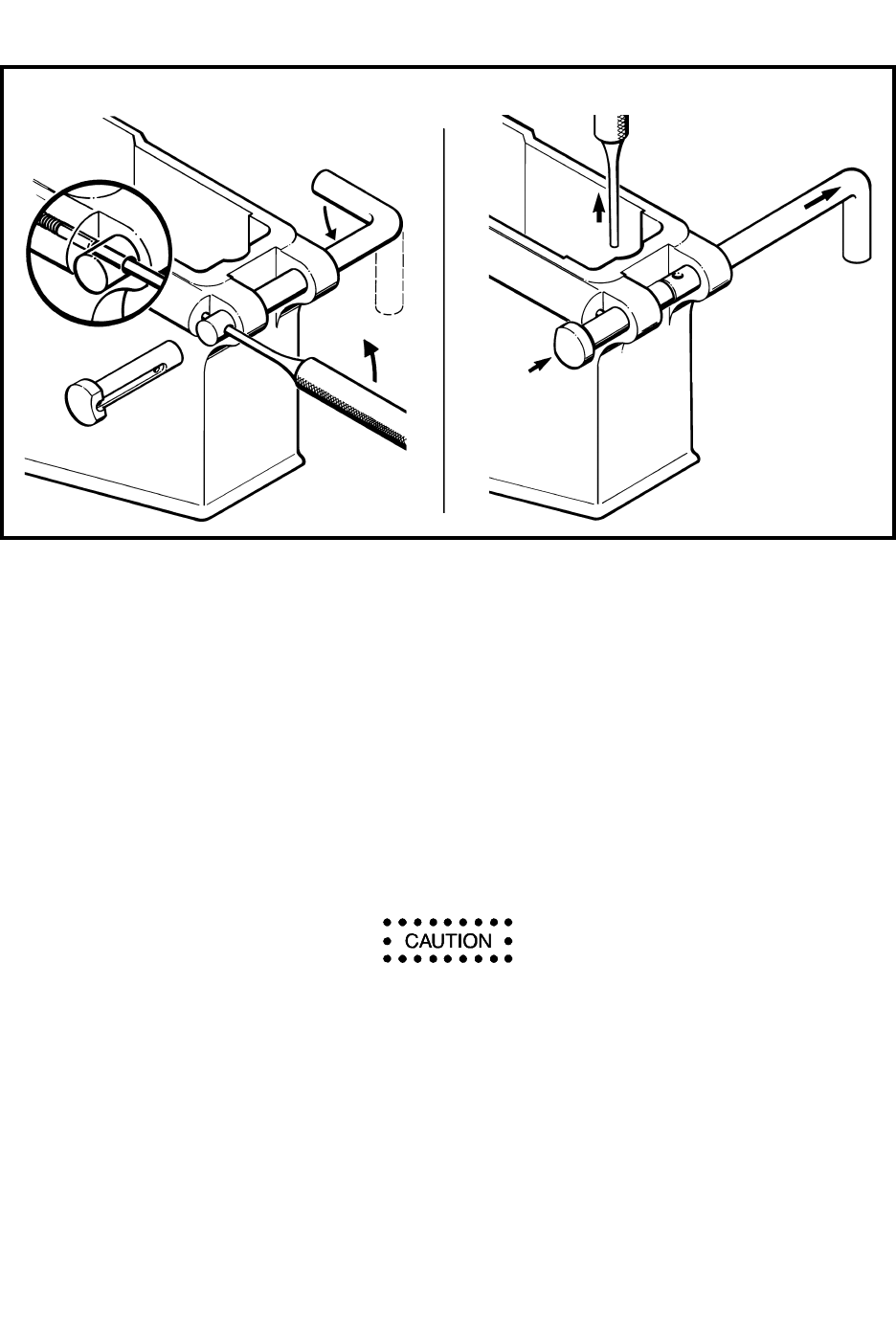

Figure 3-2-51 Replacing the Receiver Pivot Pin
