Maintenance Instructions

10044S

Colt Canada Proprietary 3-2-30 2005-09-20

a. Remove the bolt catch pin with the special punch. See Figure 3-2-40;

b. Apply slight pressure to the bolt catch to control spring pressure when removing the

punch; and

c. Carefully release pressure and remove the bolt catch (1) bolt catch plunger (2) and the

bolt catch spring (3). See Figure 3-2-41.

44. Inspection and Repair. Inspect and repair the bolt catch as follows:

a. Ensure that the bolt catch spring and plunger are free of wear, cracks or distortion;

b. Ensure that the finger serrations and the bolt contact point of the bolt catch are clearly

defined; and

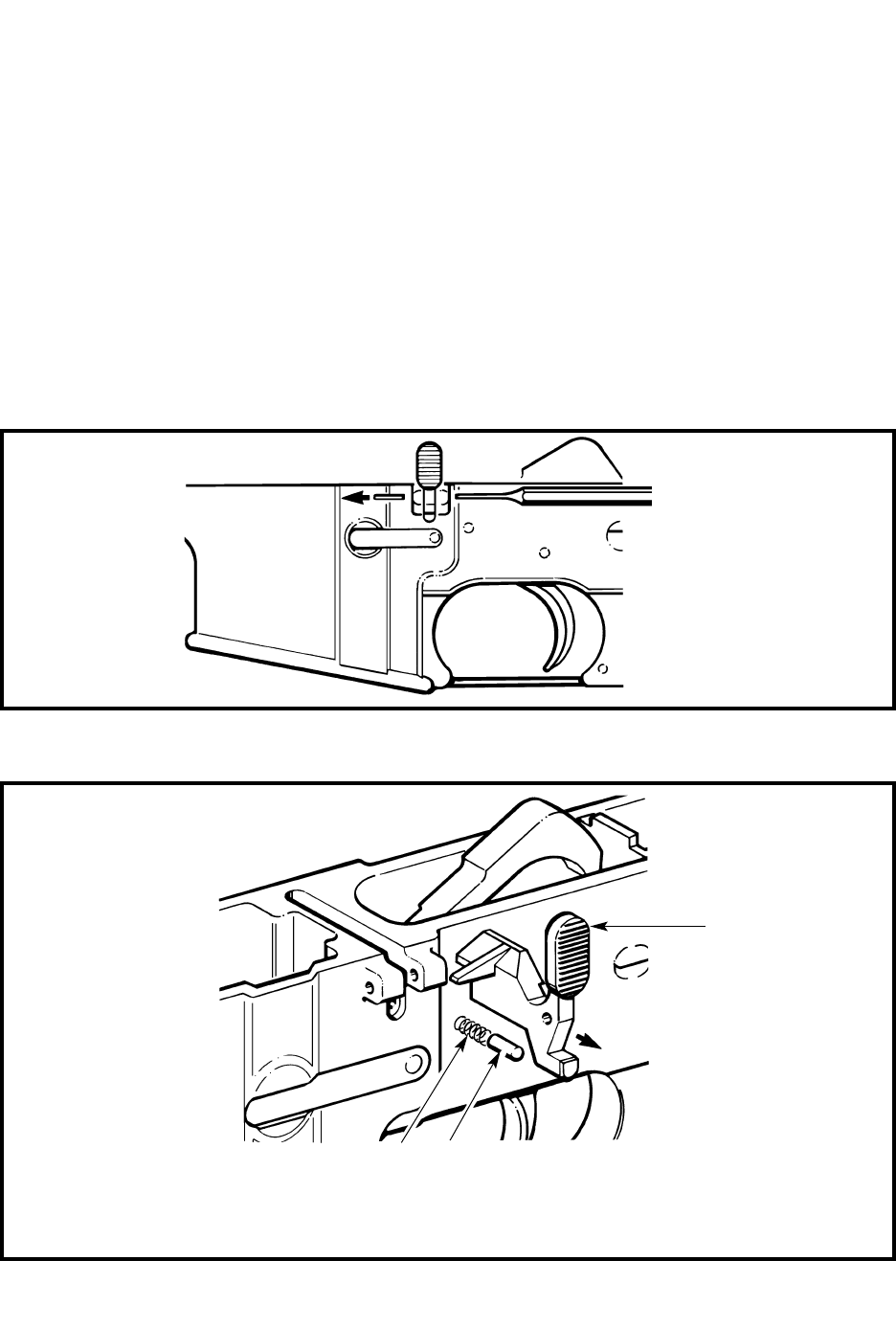

Figure 3-2-40 Removing the Bolt Catch Pin

Figure 3-2-41 Removing the Bolt Catch Components

1. BOLT CATCH

2. BOLT CATCH PLUNGER

3. BOLT CATCH SPRING
