c. Remove the pistol grip, selector detent spring and selector detent (5); and

d. Remove the fire control selector.

41. Inspection and Repair. Inspect and repair the pistol grip and fire control selector

components as follows:

a. Ensure that the grip is free of cracks, distortions and deformation;

b. Ensure that the fire control selector, selector detent and spring are in good form; and

c. Replace non-serviceable components as required.

42. Reassembly. Reassemble the pistol grip components in reverse order to the

disassembly procedure. Ensure that the detent is properly installed, with the pointed end facing

the selector. Also ensure that the selector detent spring is installed without kinking and that it is

properly contained in the lower receiver by the pistol grip.

BOLT CATCH

43. Removal. Remove the bolt catch as follows:

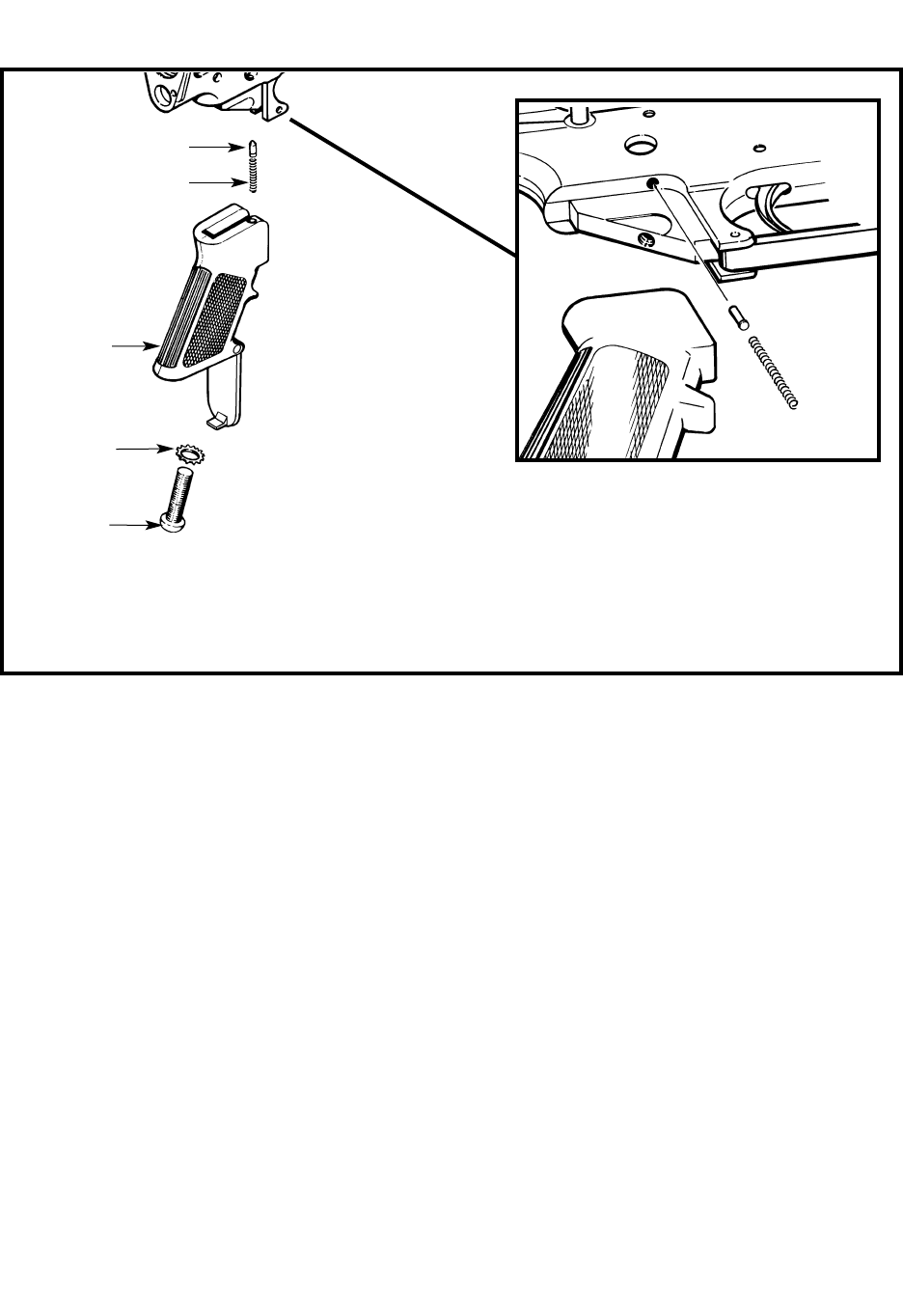

Figure 3-2-39 Removing the Pistol Grip

1. PISTOL GRIP SCREW

2. LOCKWASHER

3. PISTOL GRIP

4. SELECTOR DETENT SPRING

5. SELECTOR DETENT
