Maintenance Instructions

10044S
Colt Canada Proprietary 3-2-28 2005-09-20
NOTE
The takedown pin detent and spring are retained in the lower receiver by the butt. Take
care to ensure that neither of these parts is lost or damaged during disassembly/assembly
procedures.
b. Cover the lower half of the lower receiver assembly and butt assembly where the two
meet, to prevent loss of the takedown pin detent (4) and takedown pin detent spring (3);
c. Remove the butt assembly (2) rearward from the lower receiver assembly; and
d. Remove the takedown pin (5) from the lower receiver.
38. SLIDING BUTTSTOCK. See figure 3-2-38 and remove the sliding butt as follows:
a. Pull down fully on the front end of the release lever; and
b. Pull the butt rearward off of the receiver extension;
LOWER RECEIVER ASSEMBLY
39. Proceed with the disassembly, inspection, repair and reassembly by subassembly.
PISTOL GRIP
40. Removal. To remove the pistol grip, see Figure 3-2-39 and proceed as follows:
a. Using a suitable screwdriver, remove the pistol grip screw (1) and lockwasher (2);
b. Carefully withdraw the pistol grip (3) and take control of the selector detent spring (4);
NOTE
The selector detent spring is under moderate compression. Remove the pistol grip
carefully to prevent loss of the spring.

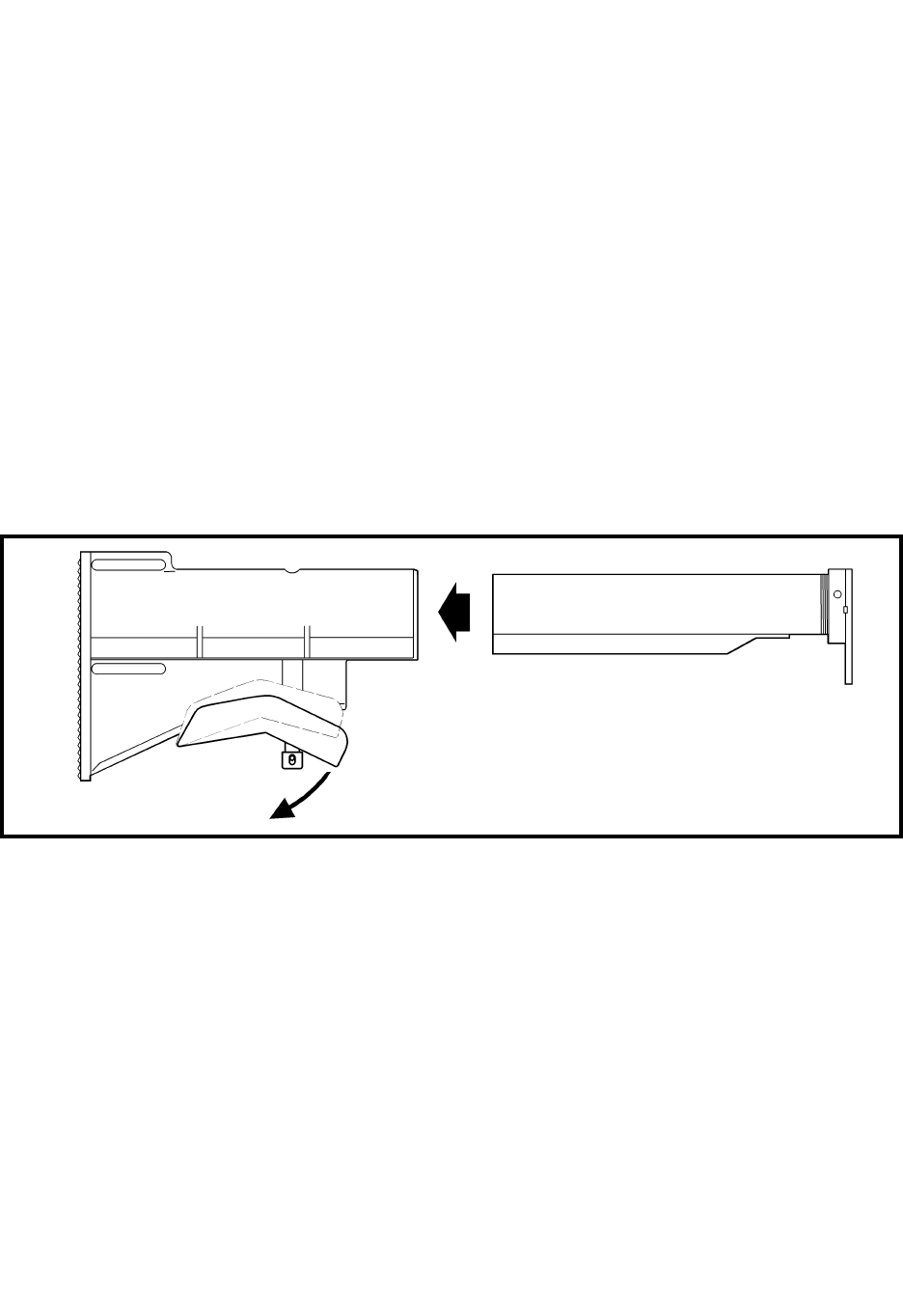

Figure 3-2-38 Removing the Sliding Buttsock Assembly
