Maintenance Instructions

10044S

Colt Canada Proprietary 3-2-27 2005-09-20

b. Rotate the bolt to position the extractor on the right and insert the cam pin into the bolt;

NOTE

The cam pin hole in the bolt is swaged so that the cam pin can only be inserted from

one direction. This is to prevent the bolt from being assembled with the extractor in the

wrong position.

c. Rotate the cam pin 1/4 turn either way;

d. Pull the bolt forward;

e. Insert the firing pin into the bolt and push it fully forward; and

f. Insert the firing pin retaining pin into the bolt carrier, from the left, to secure the firing pin.

LOWER RECEIVER AND BUTT GROUP

REMOVING THE BUTT ASSEMBLY

36. Separate the upper receiver and barrel group from the weapon.

37. SOLID BUTTSTOCK. To remove the butt assembly, see Figure 3-2-37 and proceed

as follows:

a. Unscrew the butt plate screw (1);

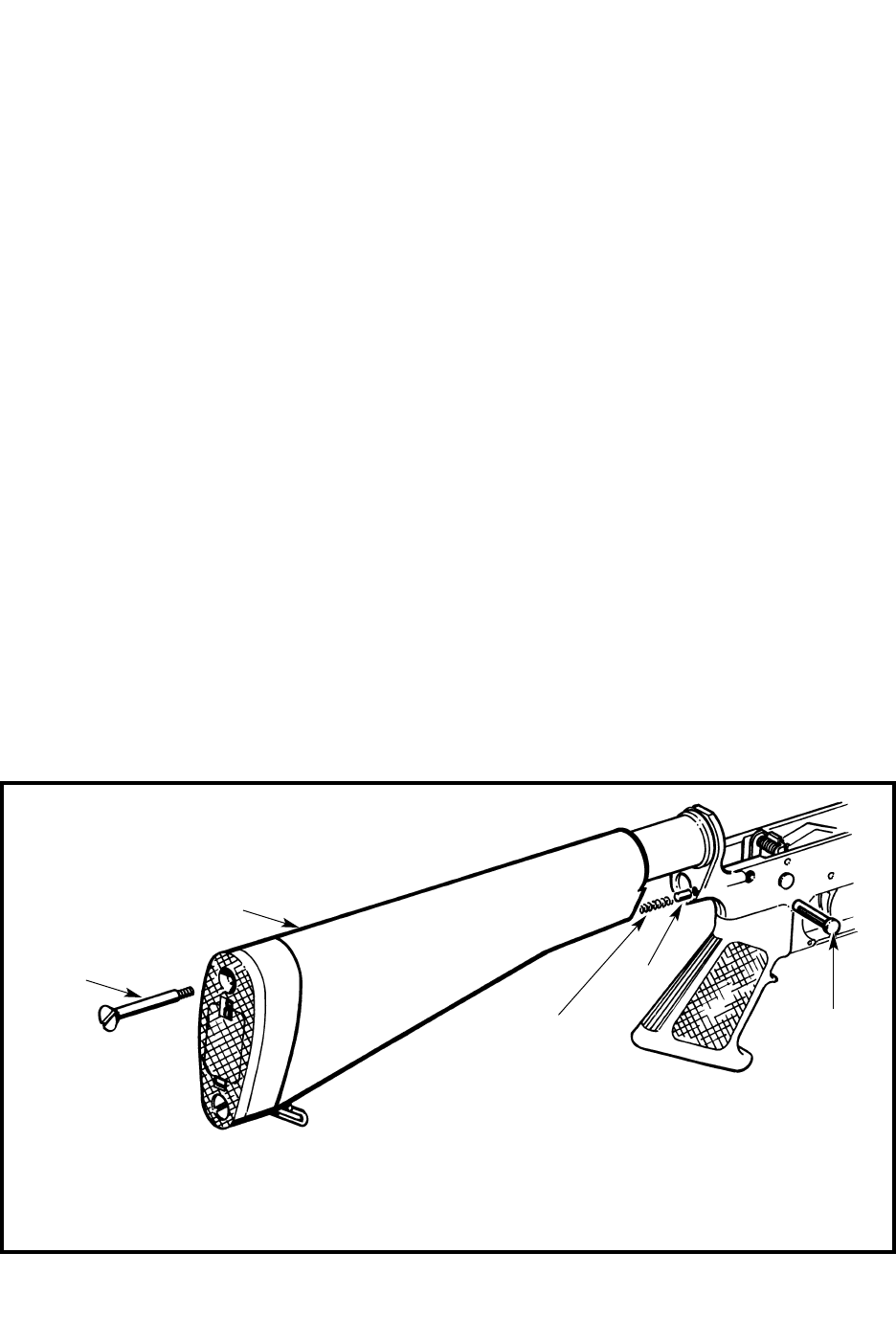

Figure 3-2-37 Removing the Butt Assembly

1. BUTT PLATE SCREW

2. BUTT ASSEMBLY

3. TAKEDOWN DETENT SPRING

4. TAKEDOWN PIN DETENT

5. TAKEDOWN PIN
