b. Visually inspect the bolt rings for bends, kinks or breaks. If one or more of the rings are
damaged, replace all three rings;
c. Visually inspect the bolt carrier key screws for looseness and security of the staking. If
the bolt carrier key screws are found to be loose, retorque them to 5.54 to 5.88 N
.
m
(35 to 40 in-lb) and restake; and
NOTE
DO NOT attempt to retorque if there is no loosening of the screws indicated at the
staking marks.
d. Replace non-serviceable components as required.
REASSEMBLY
33. Reassemble the bolt assembly as follows:
a. Install the bolt rings onto the bolt taking
care not to distort the new rings. To
install the bolt rings, see Figure 3-2-35
and proceed as follows:
(1) Carefully position one end of the
bolt ring in the bolt groove and hold
in place;
(2) Gently guide the circumference of
the bolt ring into the groove until it
snaps into position;
(3) Repeat for the other two bolt rings;
and
(4) Stagger the gaps in the bolt rings, creating a labyrinth sealing effect, to reduce gas
loss during operation.
b. Install the ejector as follows:
(1) With the bolt adequately supported, start the ejector retaining pin into its hole, being
careful to leave clearance for installing the ejector;
(2) Position the ejector spring and ejector in the bolt;
(3) Depress the ejector to compress the ejector spring; and
(4) Secure it with the ejector pin, ensuring that the ends of the pin are flush or below the
outer surface of the bolt body.

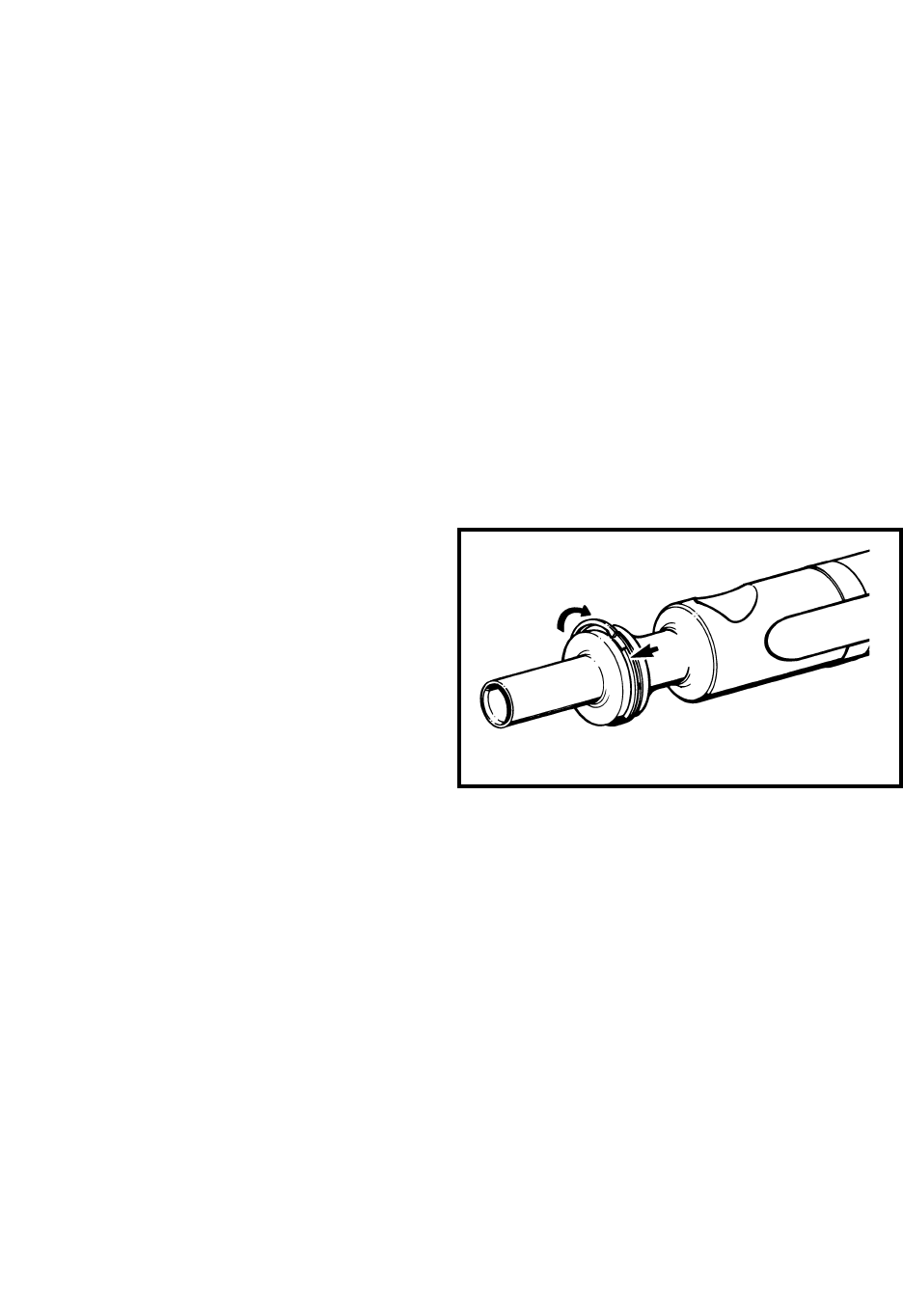

Figure 3-2-35 Installing Bolt Rings
