Maintenance Instructions

10044S
Colt Canada Proprietary 3-2-24 2005-09-20
43. Disassembling the Bolt Carrier. The bolt carrier is not normally disassembled, except
for the replacement of defective or damaged components, since the carrier key is sealed to the
carrier and the securing screws are heavily staked in position. However, should disassembly be
required, unscrew the two socket head screws with a hexagonal bit socket on a socket wrench
and separate the carrier key from the carrier. See Figure 3-2-34.
INSPECTION AND REPAIR
32. Inspect and repair the bolt carrier group as follows:
a. Inspect all bolt carrier components for cracks, bends, burrs or other forms of damage.
Springs are to be checked for bends, kinks or distortion;

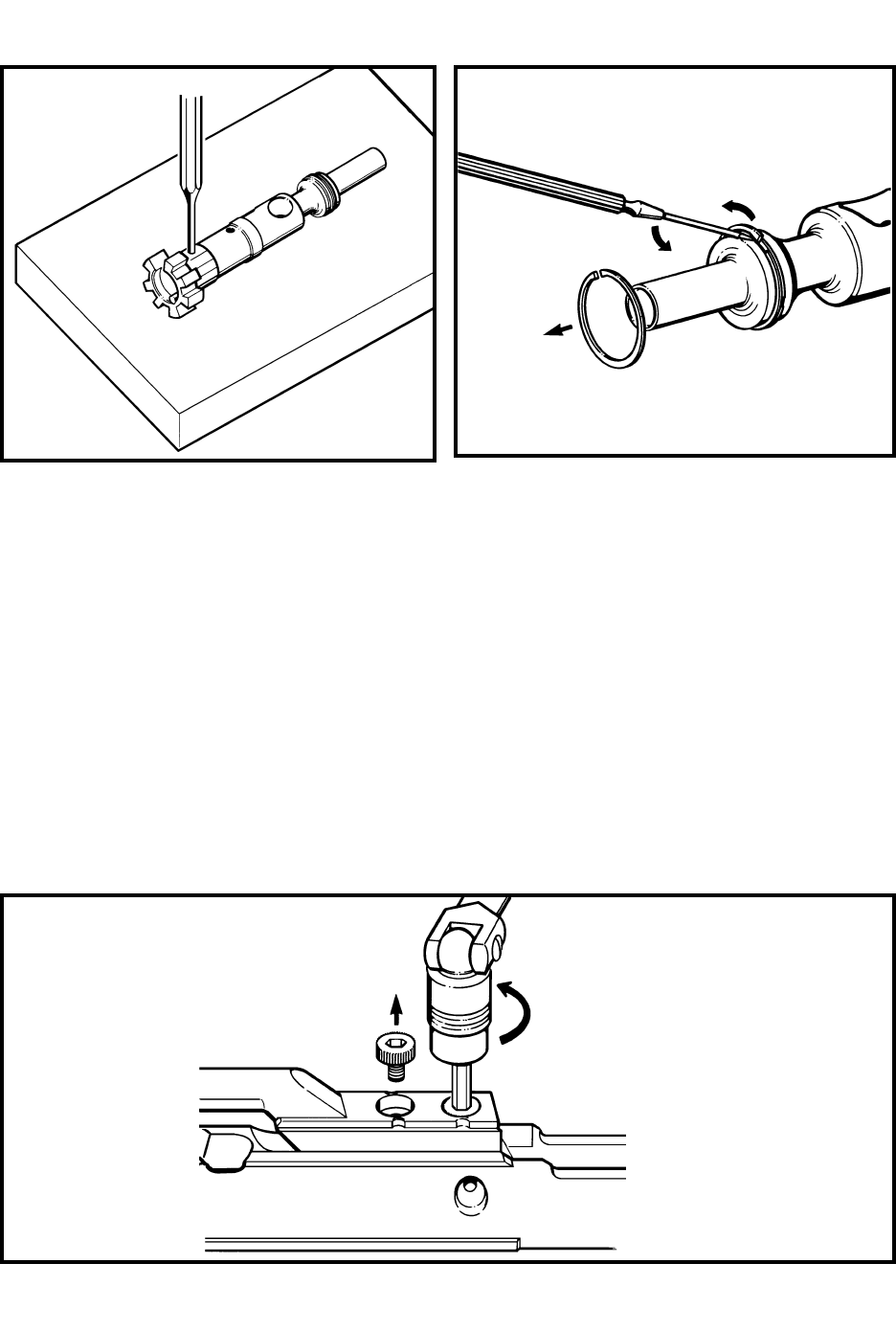

Figure 3-2-32 Removing the Ejector Spring
and Ejector
Figure 3-2-33 Removing the Bolt Rings
Figure 3-2-34 Removing the Bolt Carrier Key
