c. Push the bolt rearward;
d. Rotate the cam pin 1/4 turn; and
e. Withdraw the cam pin from the bolt carrier group and pull the bolt out of the bolt carrier.
See Figure 3-2-30.
30. Disassembling the Bolt. The bolt may be disassembled as follows:
a. Using a suitable punch, push out the extractor pin and remove the extractor. See
Figure 3-2-31;
DO NOT attempt to remove the extractor spring and spring insert from the extractor. The
spring is captive and could be damaged upon removal.
b. The ejector and ejector spring are not removed except to replace defective or damaged
components. See Figure 3-2-32.
c. The bolt rings are not removed except for replacement. Replace all three rings if damage
or defects exist. In the event that replacement is required, the rings are removed with the
tip of the jeweller’s screwdriver. See Figure 3-2-33.

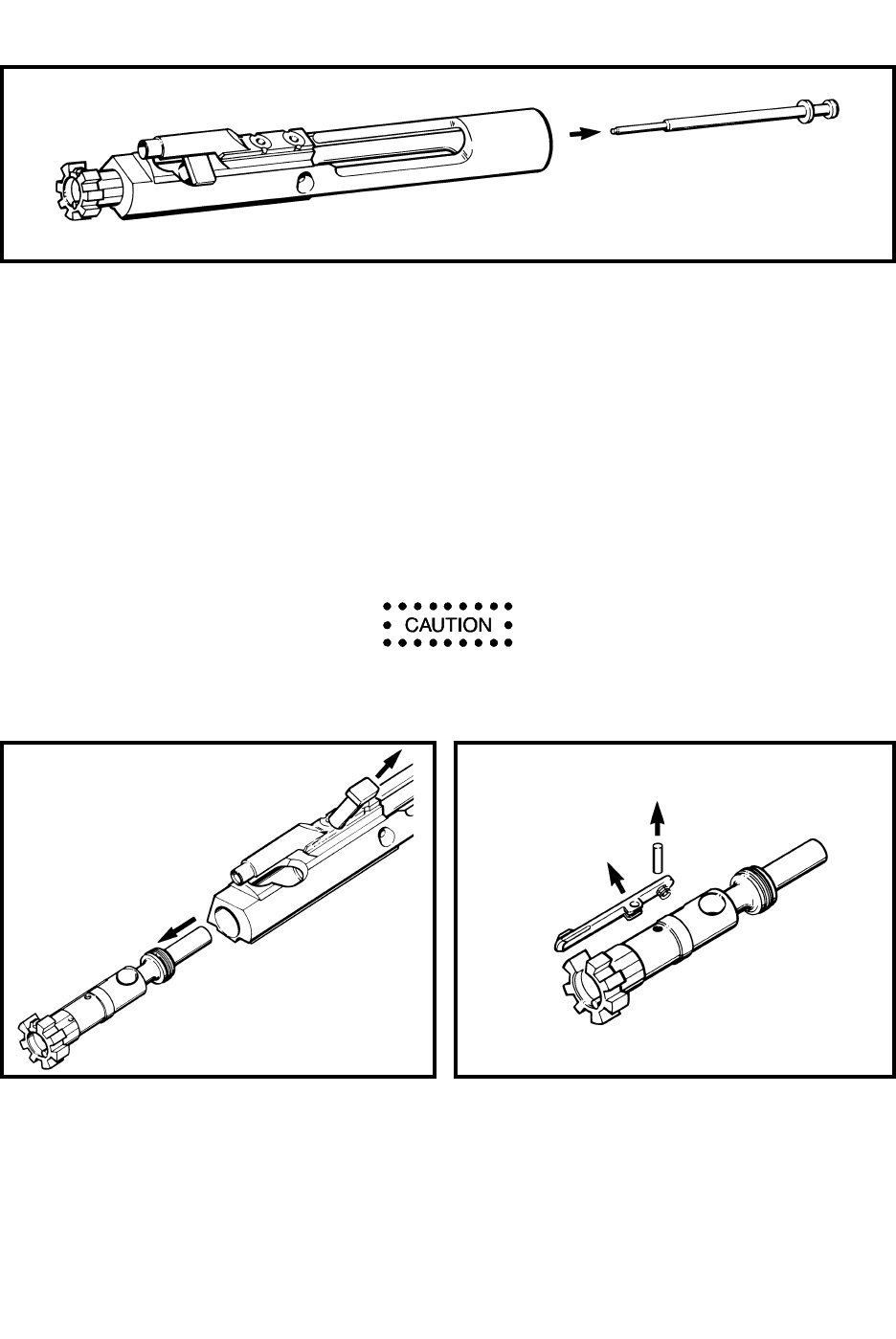

Figure 3-2-29 Removing the Firing Pin
Figure 3-2-30 Removing the Bolt
Figure 3-2-31 Removing the Extractor
