Maintenance Instructions

10044S

Colt Canada Proprietary 3-2-20 2005-09-20

EJECTION PORT COVER

22. Disassembly. To disassemble the ejection port cover from the upper receiver, see

Figure 3-2-26 and proceed as follows:

a. Using the tips of two small punches or flat tip screwdrivers remove the ejection port cover

hinge pin snap ring (1) from the ejection port cover hinge pin (2);

b. Take control of the ejection port cover (4) and ejection port cover spring (3) to prevent

their loss;

c. Remove the ejection port cover hinge pin to the rear; and

d. Remove the ejection port cover and the ejection port cover spring.

23. Inspection and Repair. Inspect and repair the ejection port cover assembly as follows:

a. Inspect all components of the ejection port cover assembly for serviceability, security, and

function; and

b. Replace all non-functional, damaged or defective components.

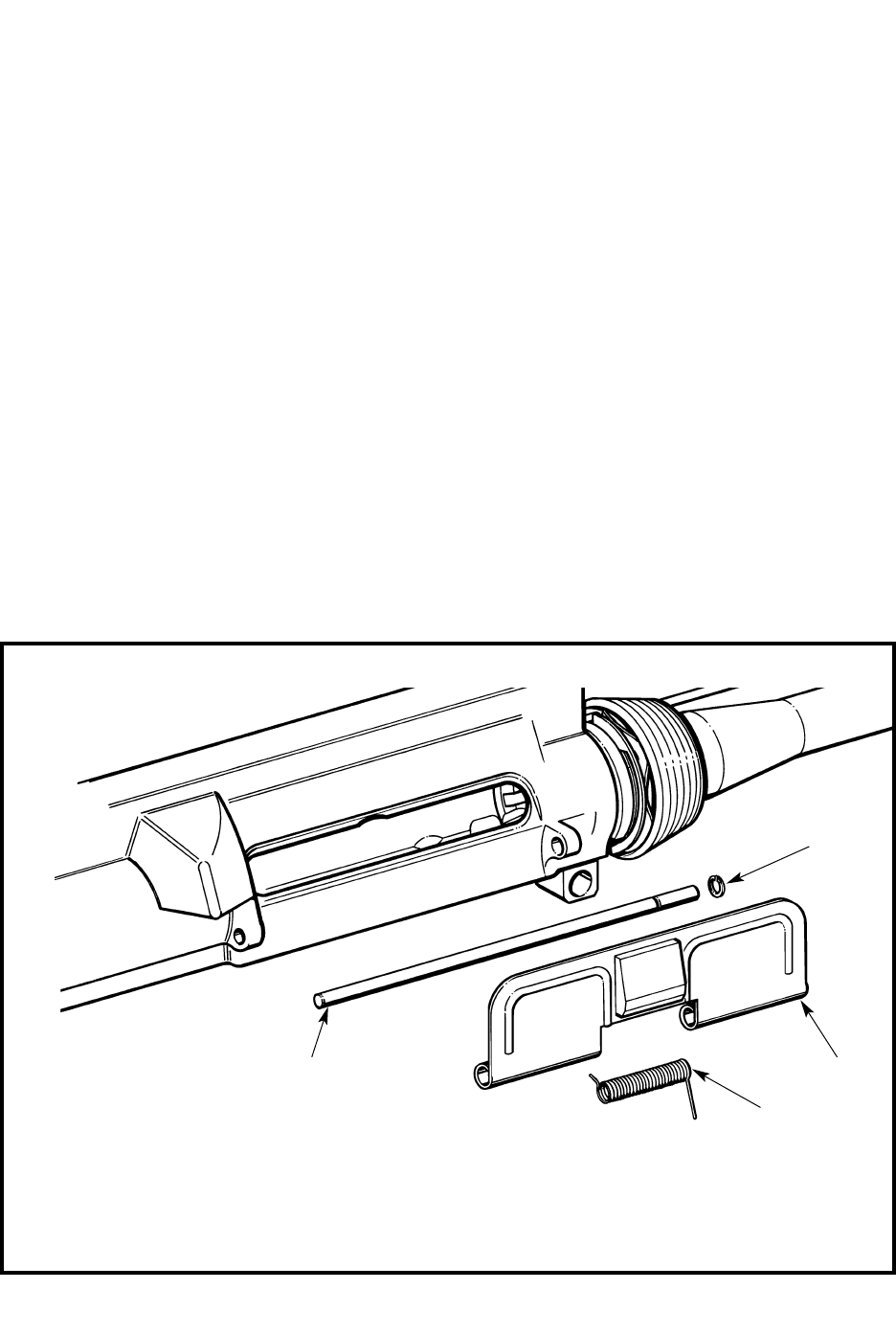

Figure 3-2-26 Removing the Ejection Port Cover

1. EJECTION PORT COVER HINGE

PIN SNAP RING

2. EJECTION PORT COVER HINGE

3. EJECTION PORT COVER SPRING

4. EJECTION PORT COVER
