Maintenance Instructions

10044S
Colt Canada Proprietary 3-2-3 2005-09-20
COMPLETE WEAPON
DISASSEMBLY INTO MAJOR GROUPS
5. With the weapon cocked and the fire control selector set to the “S” position,
disassemble the weapon into major groups by the following procedure:
a. Loosen the wing-nut(s) on Optical Sight, Detachable Iron Sight (DIS), or Back Up Sight,
and remove the sight from the sight rail. See Figure 3-2-3;

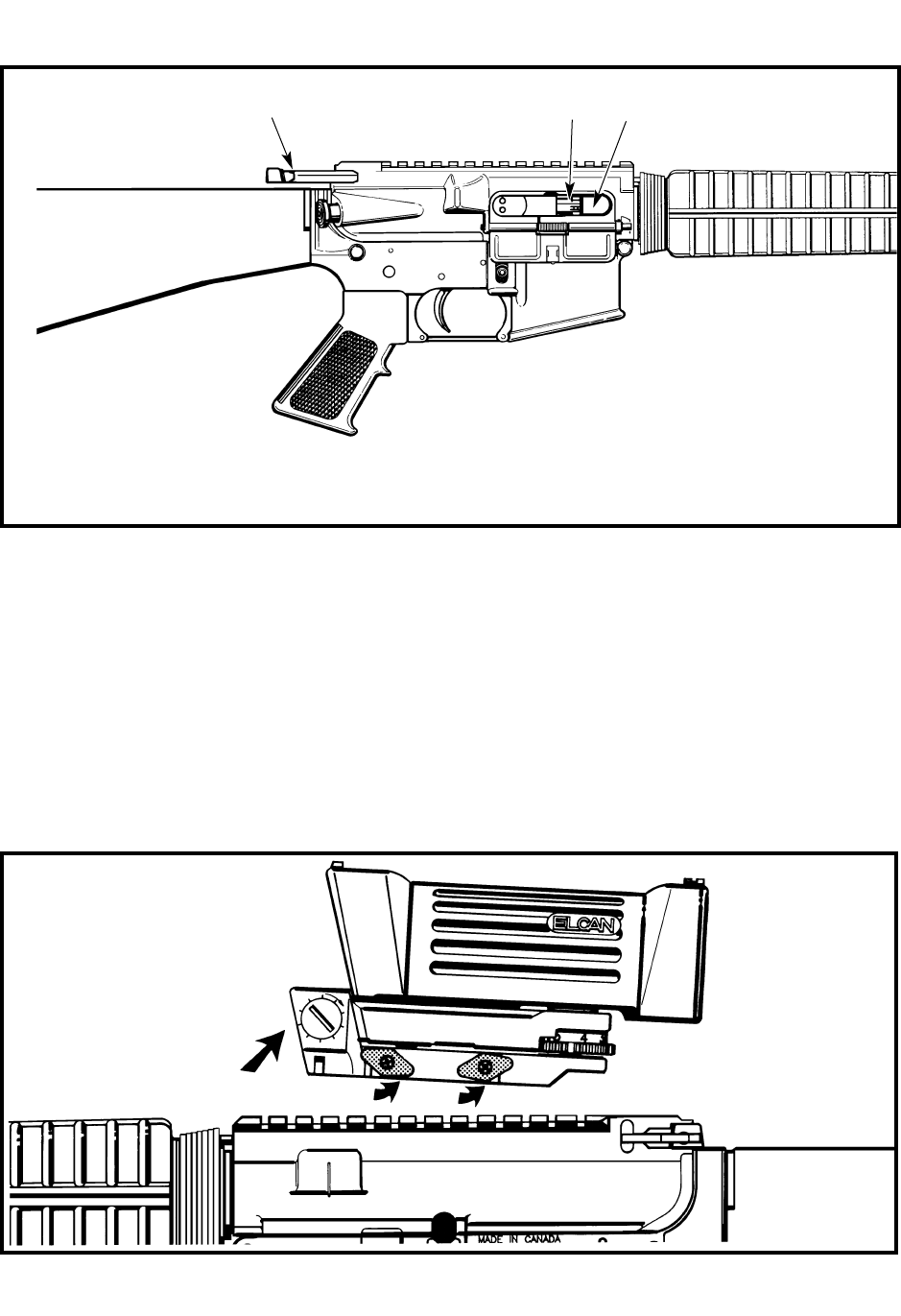

Figure 3-2-3 Removing Sights
1. COCKING HANDLE
2. EJECTION OPENING
3. CHAMBER AREA AND INTERIOR
OF THE RECEIVER
1
2
3
Figure 3-2-2 Proving the Weapon
