AMMUNITION - 5.56 X 45 MM NATO
DO NOT FIRE
* Seriously corroded ammunition.
* Dented cartridges.
* Cartridges with loose bullets.
* Cartridges exposed to extreme heat (57°C) until they have cooled.

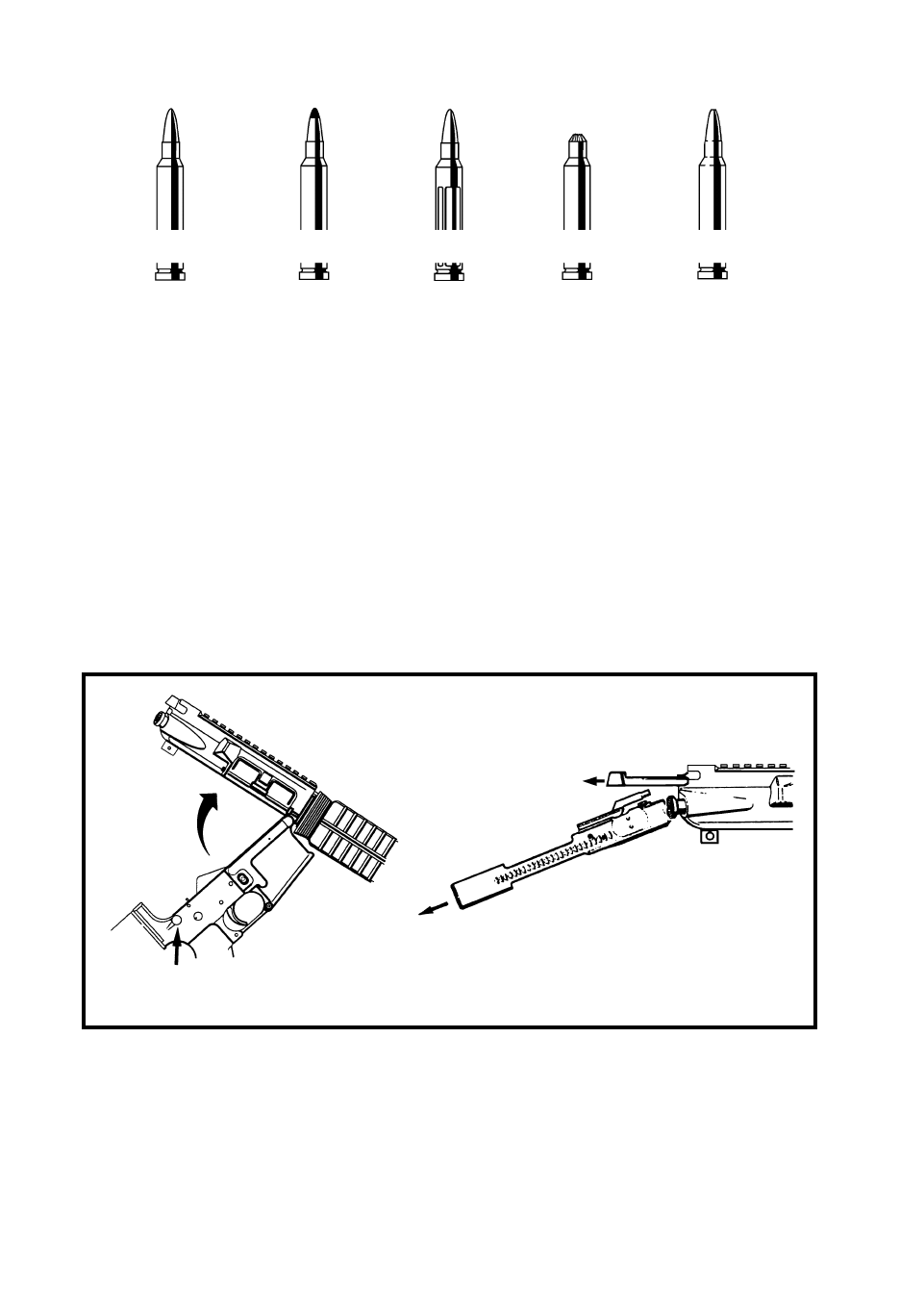

FIELD STRIPPING
PROVE THE WEAPON SAFE BUT DO NOT OPERATE THE TRIGGER.
PLACE THE FIRE CONTROL SELECTOR ON
“S”.
* Push the takedown pin (1) all the way to the right. Pivot the upper receiver group (2) upward.
* Remove the bolt carrier and bolt (3).
* Remove the cocking handle (4).
* Remove the firing pin retaining pin (5).
* Rotate the bolt (6) into the locked position.
* Remove the firing pin (7).
* Rotate the cam pin (8) 1/4 turn and remove it.
* Remove the bolt (9) from the carrier.
BALL TRACER DUMMY BLANK INSPECTION
1
2
3
4
