SIGHT ADJUSTMENTS AND ZEROING (Cont’)

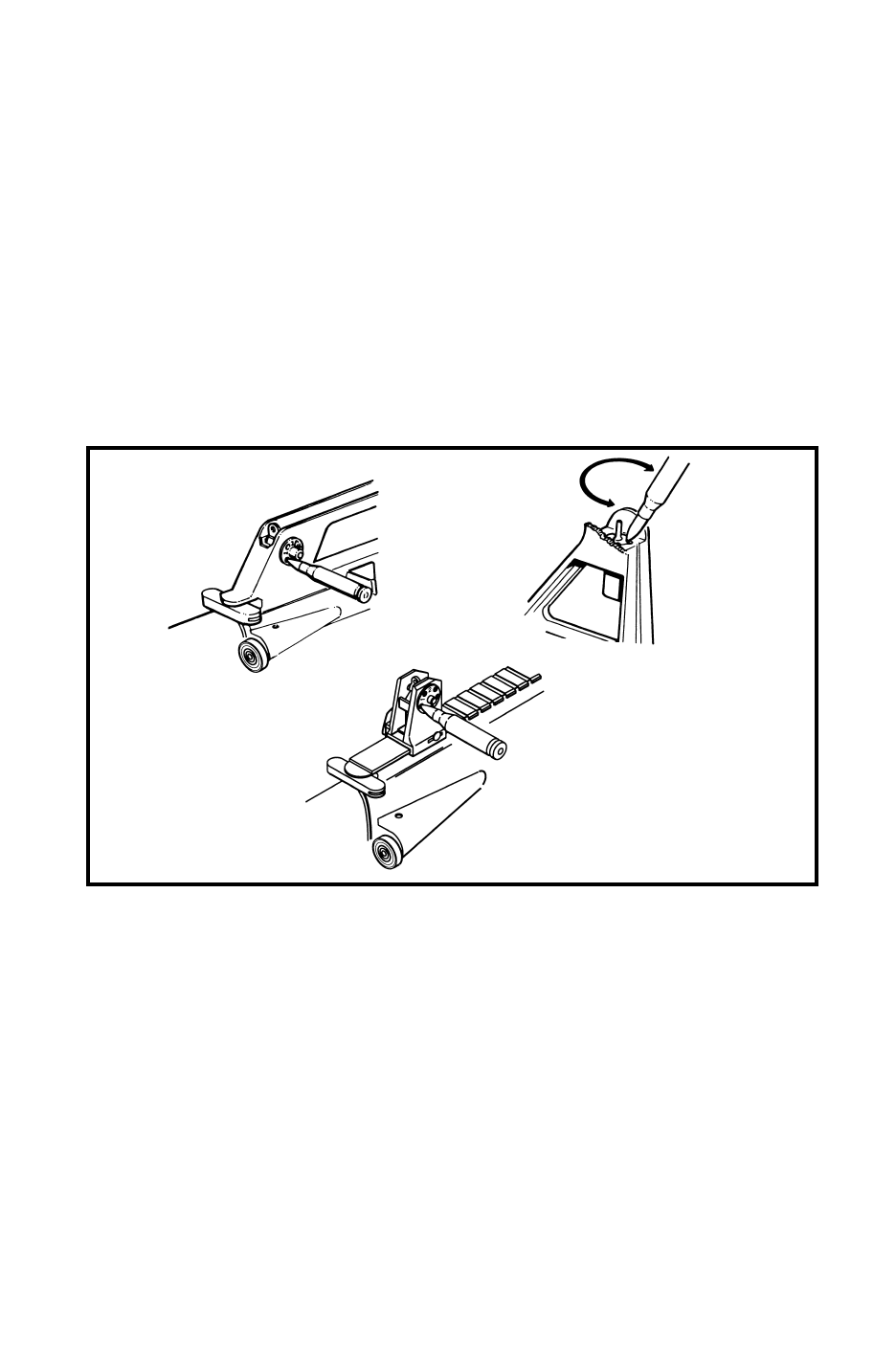

FRONT SIGHT
To adjust elevation: depress the front sight detent with the point of a bullet and rotate the front sight post clock-
wise or counterclockwise. To move the MPI up, rotate the front sight post clockwise as indicated by the arrow.
* One notch of rotation moves the MPI 3.5 cm or 0.35 mil at 100 m for the Rifle and LSW.
* One notch of rotation moves the MPI 4.7 cm or 0.47 mil at 100 m for the Carbine and SFW.
ZEROING
The iron sights for the rifle are normally zeroed at 300 m. The carbine iron sights are zeroed at 250 m. If zeroing is
fired at 100 m the group MPI will be 12.5 cm above the point of aim for the rifle, and 8.9 cm above for the carbine.
NOTE
Adjustments to the front and rear sights may be made using a bullet or the Frontsight Adjusting Tool contained in
the Section Cleaning Kit.
PROVING THE WEAPON “SAFE”
* Remove the magazine.
* Pull the cocking handle fully rearward; then hold it to the rear.
* Check to ensure that the receiver and chamber are clear.
* Allow the bolt carrier group to go forward under control.
* Squeeze the trigger to “Fire” the action.
* Close the ejection port.
FILLING THE MAGAZINE
* The magazine can be filled by using the magazine filler and 10 round clips, or by inserting single rounds.
LOADING
* Place the fire control selector on “S”.
* Push the magazine into the magazine well until the magazine catch engages with a positive click, to hold the
magazine.
* Pull the cocking handle to the rear.
* Release the cocking handle: DO NOT “Ride” the cocking handle, let it go forward on it’s own.
* Tap the forward assist plunger to ensure that the bolt is fully forward and locked.
* Close the ejection port.
