Manual
PHYSICAL
DATA
C7 FAMILY WEAPONS ARE DIRECT GAS OPERATED, HAVE ROTATING BOLTS AND ARE 5.56 MM CALIBRE.
THE BARREL RIFLING HAS 6 GROOVES AND HAS A RATE OF TWIST OF 1 IN 17.8 CM.
2
10047S
MODEL
CYCLIC RATE (RPM)
EMPTY WEIGHT
LOADED WEIGHT
NORMAL COMBAT
AMMO LOAD (RDS)
OVERALL LENGTH
BARREL LENGTH
POINT BLANK RANGE
FRONT SIGHT
OPTICAL SIGHT (POWER)
C7/C7A1
700-900
3.4 KG
3.9 KG
150
1.0 M
0.5 M
300 M
POST
C79 (3.4X)
C8/C8A1
700-950
2.7 KG
3.2 KG
150
0.76-0.84 M*
0.37 M
300 M
POST
C79 (3.4X)
LSW
600-700
5.8 KG
6.3 KG
270
1.0 M
0.5 M
300 M
POST
C79 (3.4X)
SFW
700-950
3.4 KG
3.8 KG
150
0.80-0.85-0.88 M**
0.41 M
300 M
POST
C79 (3.4X)
* 2 POSITION BUTTSTOCK
** 3 POSITION BUTTSTOCK
1
2
2
2
1
1
3
4
5
5
5
6
6
6
7
7
7
8
12
12
8
8
9
10
10
10
11
11
16
16
11
13
13
14
14
13
15
15
17
17
17
18
18
18
C8A1
SFW
C7A1
1
13
3
7
4
8
18
17
16
5
10
11
6
2 19
20
9
LSW

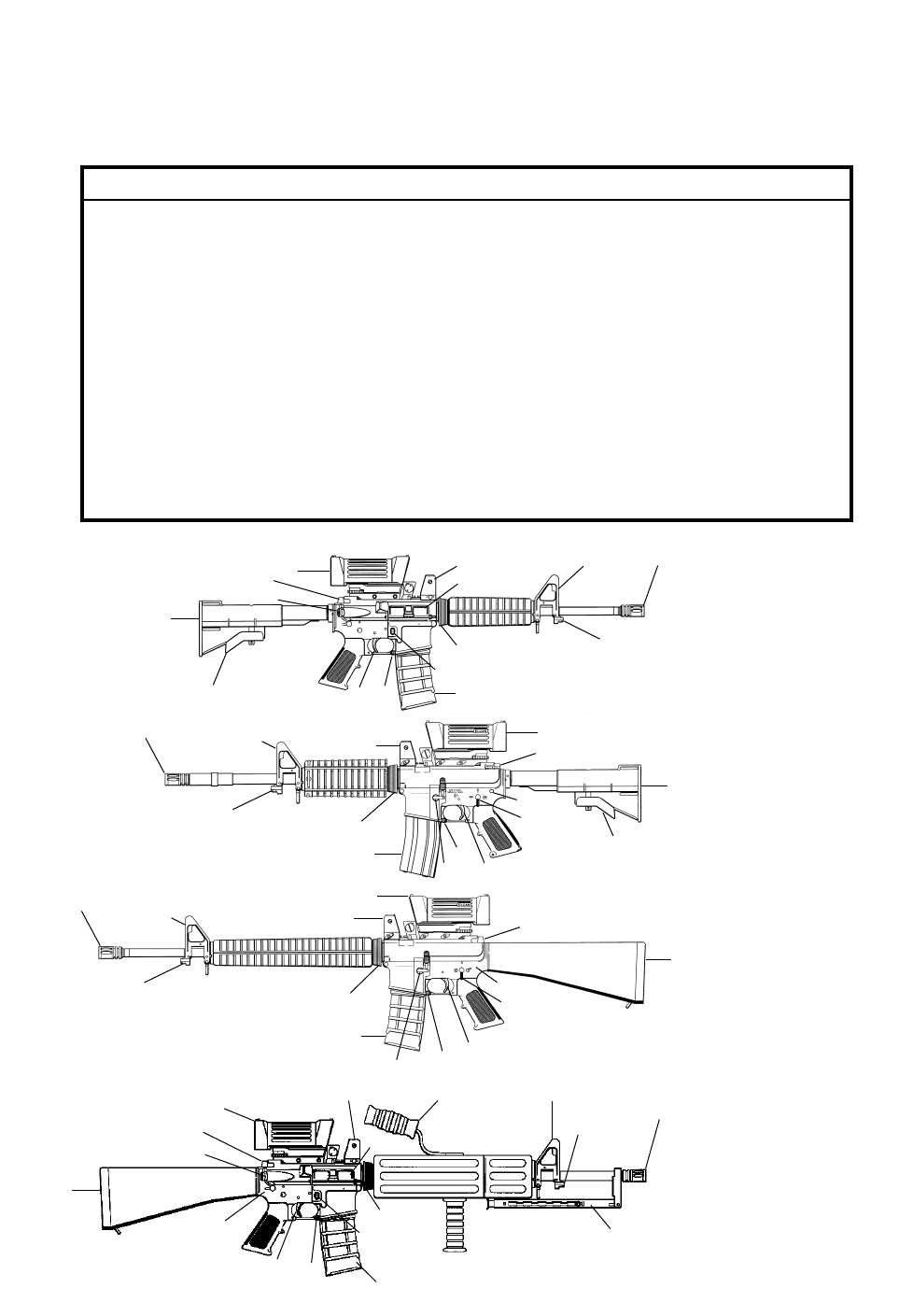

LOCATION OF
CONTROLS
1. C79 OPTICAL SIGHT
2. BACKUP SIGHT
3. FORWARD ASSIST
4. MAGAZINE RELEASE
BUTTON
5. BAYONET LUG
6. COMPENSATOR
7. COCKING HANDLE
8. TRIGGER
9. EJECTION PORT
COVER
10. FRONT SIGHT
11. HANDGUARD SLIP
RING
12. BOLT CATCH
13. BUTT PLATE
14. BUTT RELEASE
LEVER
15. FIRE CONTROL
SELECTOR
16. TAKEDOWN PIN
17. TRIGGER GUARD
PLUNGER
18. MAGAZINE
19. CARRYING HANDLE
20. BIPOD
