10047S
SLIDING BUTTSTOCK
To collapse or extend the buttstock, squeeze the release lever and slide the butt forward or rearward. The butt-
stock may have intermediate positions for use by operators wearing body armor or winter clothing.
ARCTIC TRIGGER
To ensure an operator wearing gloves can access the trigger, depress the trigger guard plunger and rotate the
trigger guard down against the pistol grip.
BLANK FIRING ATTACHMENT (BFA)
Attach the BFA as follows:
* Unscrew the stem and pull it all the way out.
* Hook the body behind the first groove in of the flash suppressor.
* Slide the stem into the suppressor and HAND TIGHTEN.
DO NOT
use tools to attach the BFA to the weapon.
FIRE BLANK AMMUNITION ONLY, WHEN BFA IS ATTACHED.
* Firing a bulleted round will cause serious damage to the weapon and may injure personnel.
RAIL ADAPTER SYSTEM
The Rail Adapter System (RAS) is installed in place of the standard handguards. All hand protectors on the RAS
are removable with the RAS installed on the weapon.

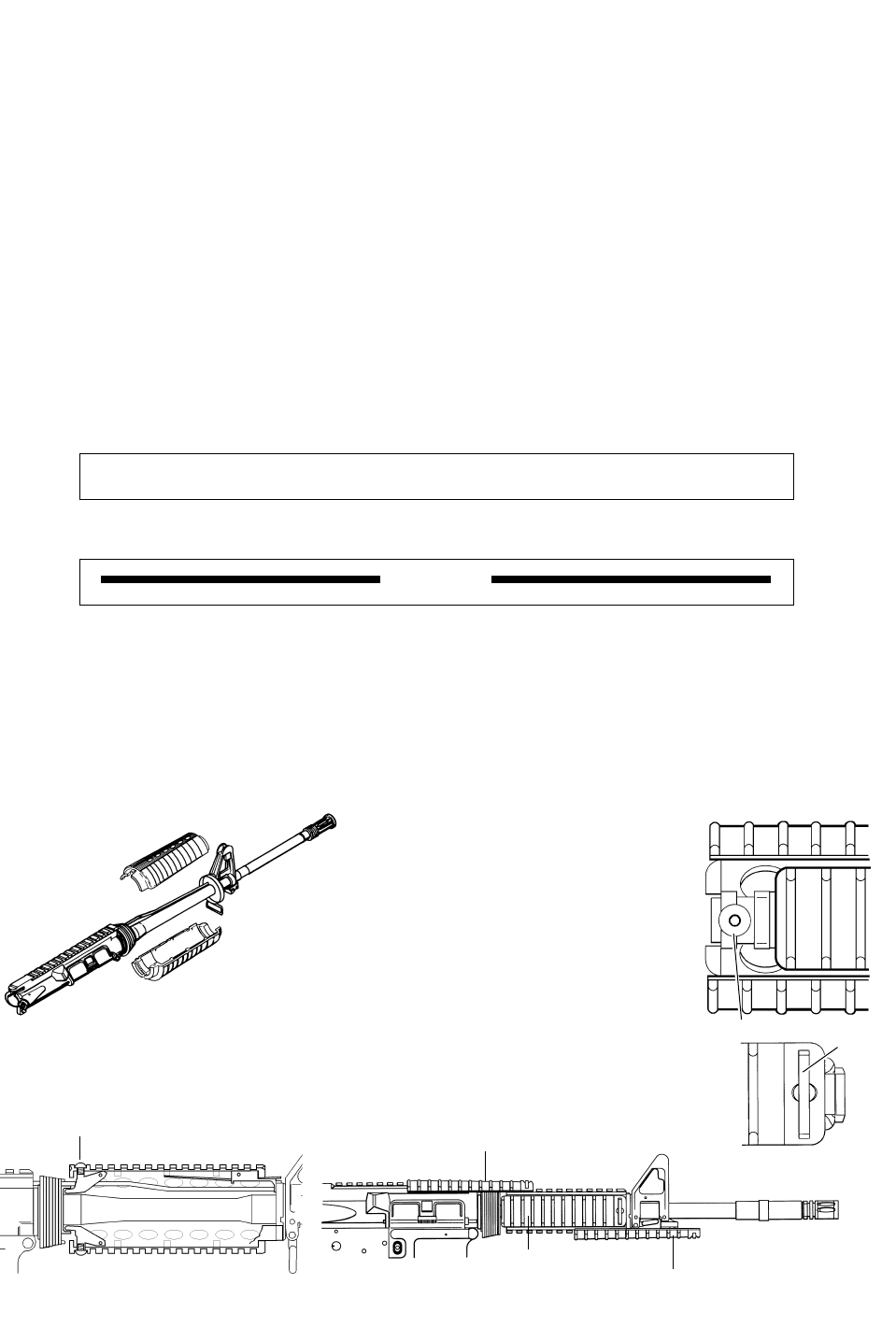

Remove the top hand protector and loosen
the rear clamp screw (1). Install the upper
portion RAS with the front locking spring
tab under the handguard cap. Position the
rear clamp over the gas tube and into the
barrel nut. Tighten the clamp screw to
secure the rear of the RAS. Slide the top
hand protector onto the RAS from the rear.
The lower portion of the RAS is assembled
in the same manner.
To remove the hand protectors from the RAS, depress the spring lock (2) and slide the
top and bottom hand protectors off of the rail. The top hand protector (3) is removed to
the rear; the side (4) and bottom (5) hand protectors are removed forward, past the front
sight.
