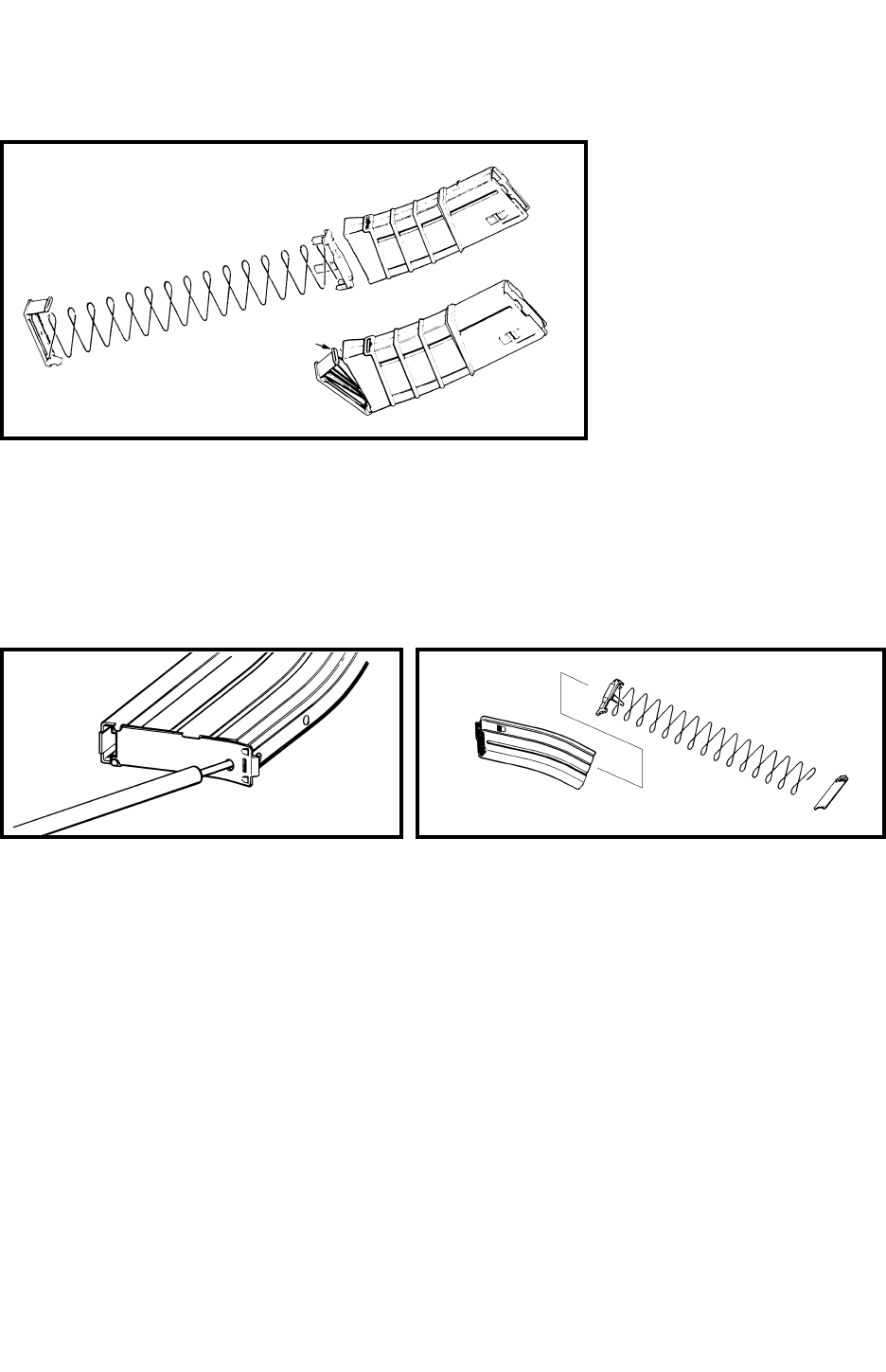

To
reassemble
the
plastic
magazine:
* Assemble the magazine spring to follower, with spring hooked to the follower.
* Insert assembled spring and
follower into magazine body.
* Position baseplate on spring and
compress spring into magazine
body.
* Hook baseplate into the slot at the
back of the magazine body.
* Snap front of baseplate into
position.
To
disassemble
the
metal
magazine:
* Insert a suitable punch through
the hole in the magazine
baseplate.
* Lift the baseplate lug clear of the magazine body.
* Take control of the baseplate to control magazine spring pressure.
* Slide the baseplate rearward out of the lugs on the magazine body.
* Remove the baseplate, spring and follower.
To
reassemb
le
the
metal
magazine:
* Assemble the magazine spring to the follower.
* Insert the follower into the magazine body.
* Use the baseplate to push the magazine spring into the magazine body.
* Slide the baseplate into the lugs on the magazine body.
* Ensure that the baseplate lug is fully engaged.
FUNCTION
TEST
Test the function of the weapon after assembly, with the magazine removed, as follows:
* Cock the weapon; move the fire control selector to “S”; and squeeze the trigger: The hammer should not be
released.
* Move the fire control selector to “R” and squeeze the trigger and hold it to the rear: the hammer should be
released.
* With the trigger still at the rear, cock the weapon: the hammer should not be released. Release the trigger and
listen for a “Click” as the disconnect releases the sear. Squeeze the trigger again: the hammer should be
released.
* 3
ROUND
BURST
MECHANISM
- Cock the weapon; place the fire control selector on “3”; squeeze the trigger
and hold it to the rear; the hammer should be released. Cock the weapon; the hammer should be released. The
hammer should be released automatically for a total of 3 times, on the fourth cycle the hammer should not be
released. Release the trigger and listen for a “Click” as the disconnect releases the sear. Squeeze the trigger
again: the hammer should be released.
* AUTO
MECHANISM
- Cock the weapon; place the fire control selector on “AUTO”; squeeze the trigger and hold
it to the rear; the hammer should be released. Cock the weapon; the hammer should be released. The hammer
should be released each time the weapon is cocked as long as the trigger is held to the rear.
