ASSEMBLY
* Insert the return spring and buffer.
* Assemble the upper and lower receiver, and engage the pivot pin.
* Ensure that the fire control selector is on “S”.
* Assemble the handguards or RIS.
* Assemble the extractor and spring to the bolt.
* Push in the extractor pin.
* Slide the bolt into the carrier.
* Insert the cam pin and rotate 1/4 turn.
* Insert the firing pin.
* Rotate the bolt into the unlocked position.
* Insert the firing pin retaining pin.
* Insert the cocking handle.
* Insert the bolt carrier.
* Close the upper and lower receiver groups.
* Push the takedown pin into the weapon from the left.
CLEANING AFTER FIRING
* Clean all affected parts with Cleaner Lubricant Preservative (CLP) or an equivalent cleaner lubricant.
NOTE
Shake the container to mix the CLP thoroughly before using.
* Lubricate all metal parts with CLP.
* Pull a cleaning rod through the bore. Pull the rod in one direction only:
DO NOT
reverse direction. Reversing
direction of the cleaning rod in the bore will damage the bore brush and could damage the cleaning rod.

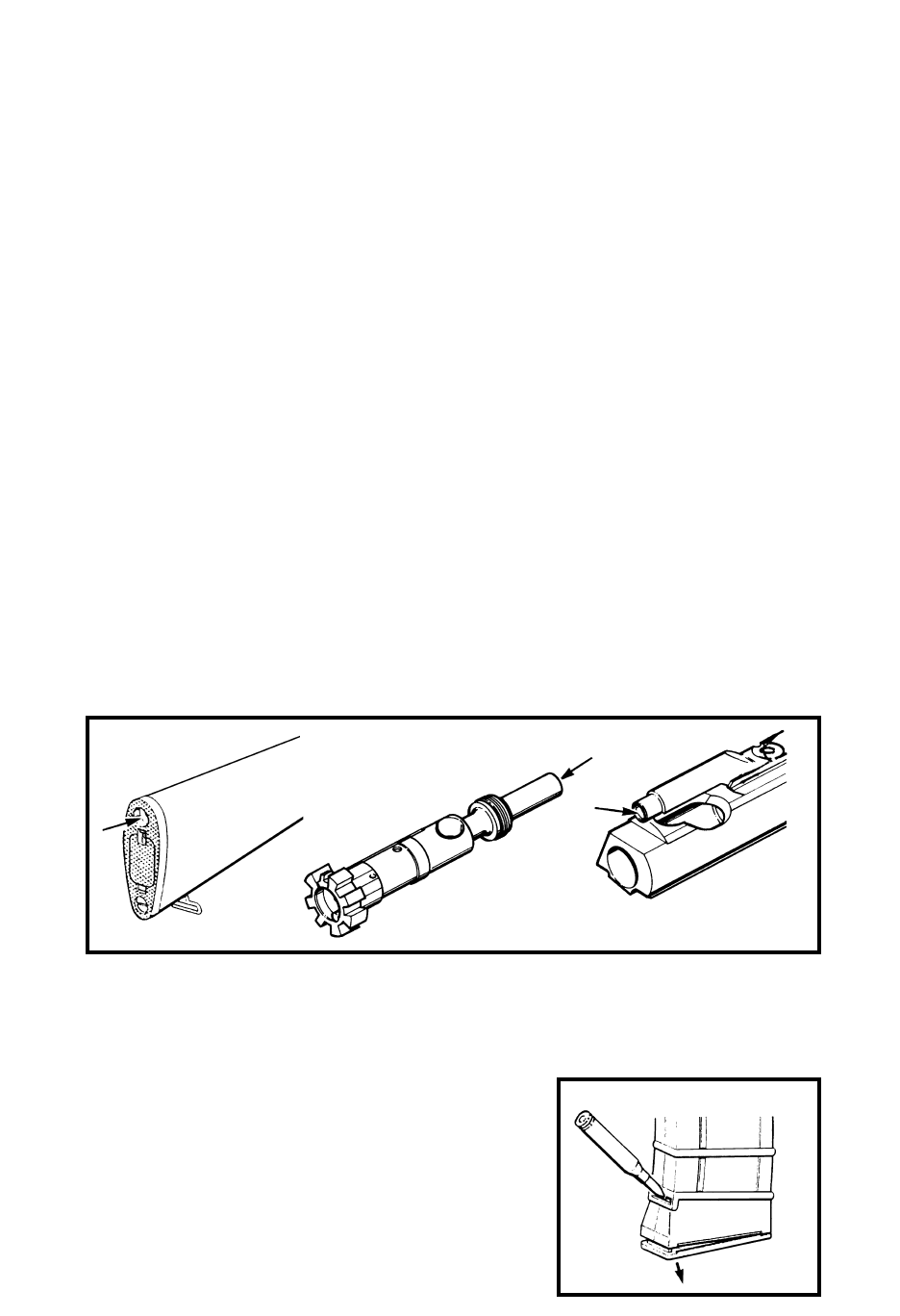

* Clean the areas indicated by arrows, in the following illustration, with pipe cleaners.
MAGAZINE ASSEMBLIES
C7 Family weapons may be equipped with either plastic or metal magazines.
To disassemble the plastic magazine:
* Take control of the magazine baseplate to control magazine spring
pressure.
* Push in on the baseplate indent with the tip of a round or suitable
object.
* Remove the baseplate, spring and follower.
