535 User's Manual Chapter 3 15
– Transmitter +
– External +
Power Supply
MILLIAMP INPUT
2-wire transmitter with
separate power supply
28
29
MILLIAMP INPUT
–
+
15
16
+
2-wire
transmitter
–
31
32
15
16
31
32
+
–
MILLIAMP INPUT
+
–
–
+
Input power
for transmitter
4-20 mA output
from transmitter
+
–
–
+
2-wire transmitter with
loop power supply
4-wire transmitter with
loop power supply
For PV1
For PV2
MILLIAMP INPUT
–
+
15
16
+
2-wire
transmitter
–
28
29
15
16
28
29
+
–
MILLIAMP INPUT
+
–
–
+
Input power
for transmitter
4-20 mA output
from transmitter
+
–
–
+
2-wire transmitter with
loop power supply
4-wire transmitter with
loop power supply

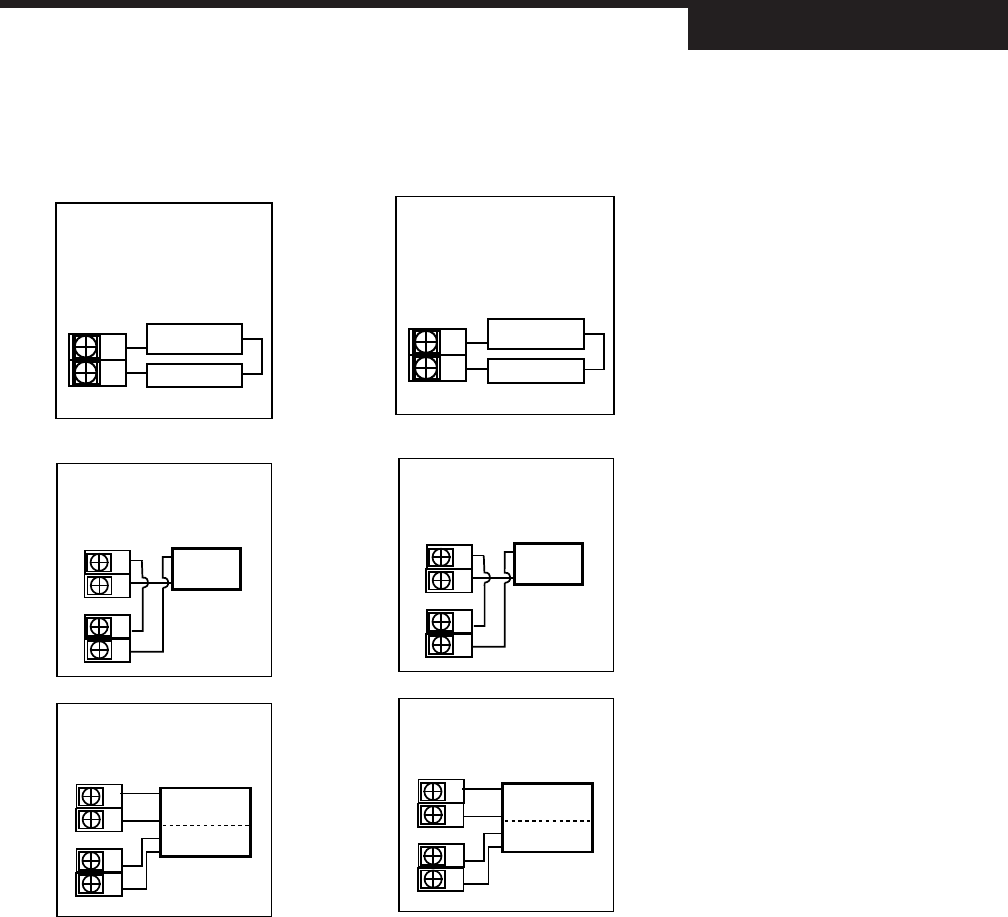

Figure 3.7
PV1 and PV2 Wiring for Milliamp
Inputs with Internal and External
Power Supply
NOTE:
To use loop power, there must be a
loop power module installed in the
3rd or 4th output socket. Compare
the controller product number with
the order code in Chapter 1 to
determine if the 535 has a loop
power module installed. To install a
loop power module, refer to
Chapter 4.
– Transmitter +
– External +
Power Supply
MILLIAMP INPUT
2-wire transmitter with
separate power supply
31
32
