535 User's Manual Appendix 2 A-3
Parts List
APPENDIX 2
PARTS LIST

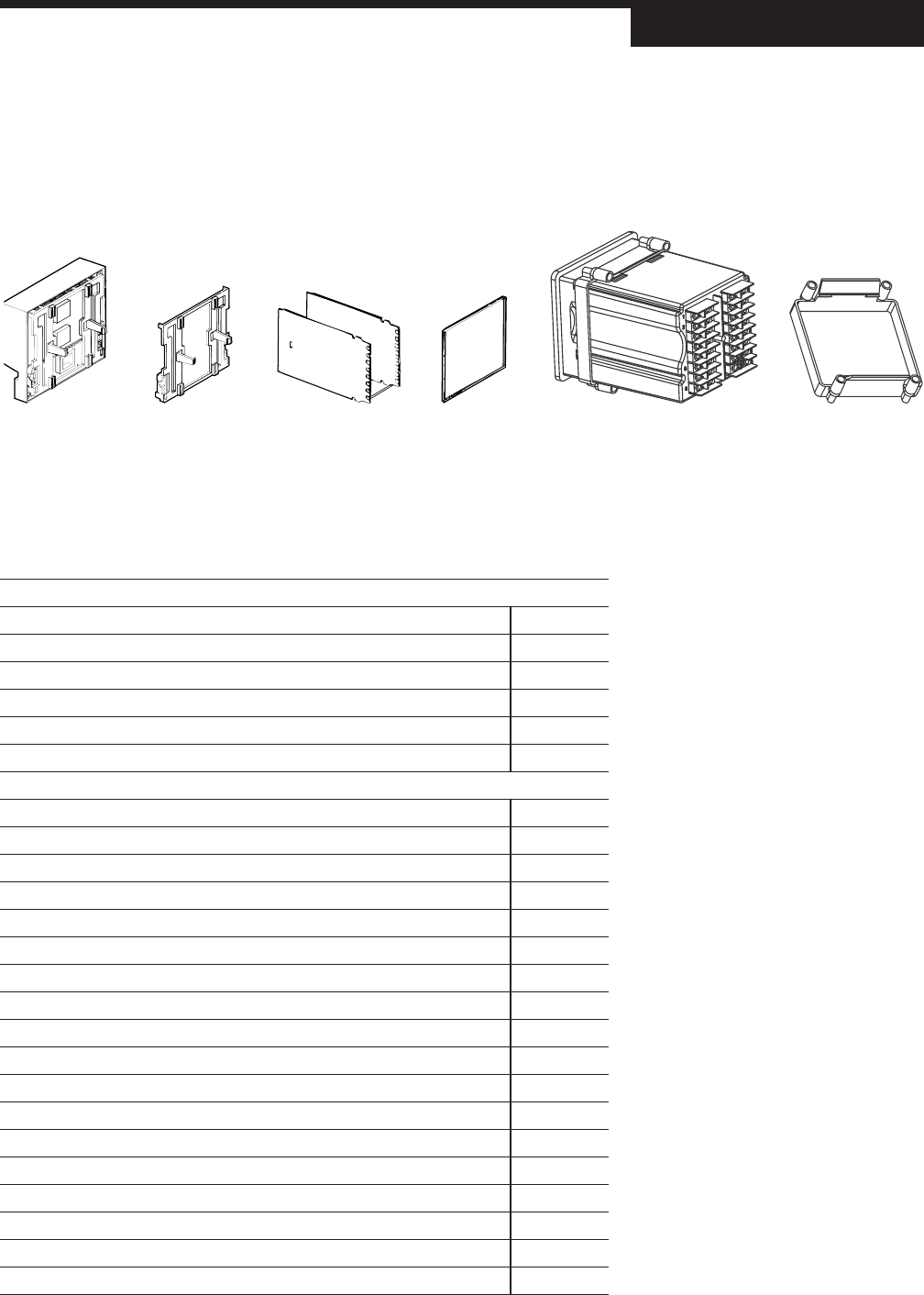

BEZEL
GASKET
CONTROLLER BODY
shown with mounting
collar in place
MOUNTING
COLLAR
CIRCUIT
BOARD SUPPORT
(BEZEL INSERT)
O
PERATOR
INTERFACE
A
SSEMBLY
s
hown with bezel
insert in place
CIRCUIT BOARDS
ITEM PART #
Output Modules
Mechanical Relay Module 535 600
Analog (milliamp Module) 535 601
Solid State Relay Module 535 602
DC Logic (SSR Drive) Module 535 603
Loop Power Module 535 604
RS-485 Communications Module 535 705
Repair/Replacement Parts
Operator Interface Assembly 535 632
Power Supply Circuit Board 535 730
Microcontroller Circuit Board 535 731
Option Circuit Board w/no Options 535 720
Option Circuit Board w/Set of 5 Digital Contacts 535 721
Option Circuit Board w/Slidewire Feedback 535 722
Option Circuit Board w/set of 5 Digital Contacts & Slidewire Feedback 535 723
EPROM without Remote Setpoint Option 535 740
EPROM with Remote Setpoint Option 535 741
Lithium Battery 093 044
Jumper Kit: Set of All Jumper Connectors 535 660
Gasket Kit: 1 Panel Gasket & 1 Bezel Gasket 535 662
Mounting Kit: Mounting Collar & 4 screws 535 761
Bezel Retention Screw Kit 535 663
Module Retention Kit for Outputs 1-3 ( Includes Retention Plate) 535 664
Module Retention Kit for Output 4: Set of 5 Tie Wraps 535 665
Circuit Board Support (Bezel Insert) 535 075
Engineering unit labels (1 sheet) 535 106
